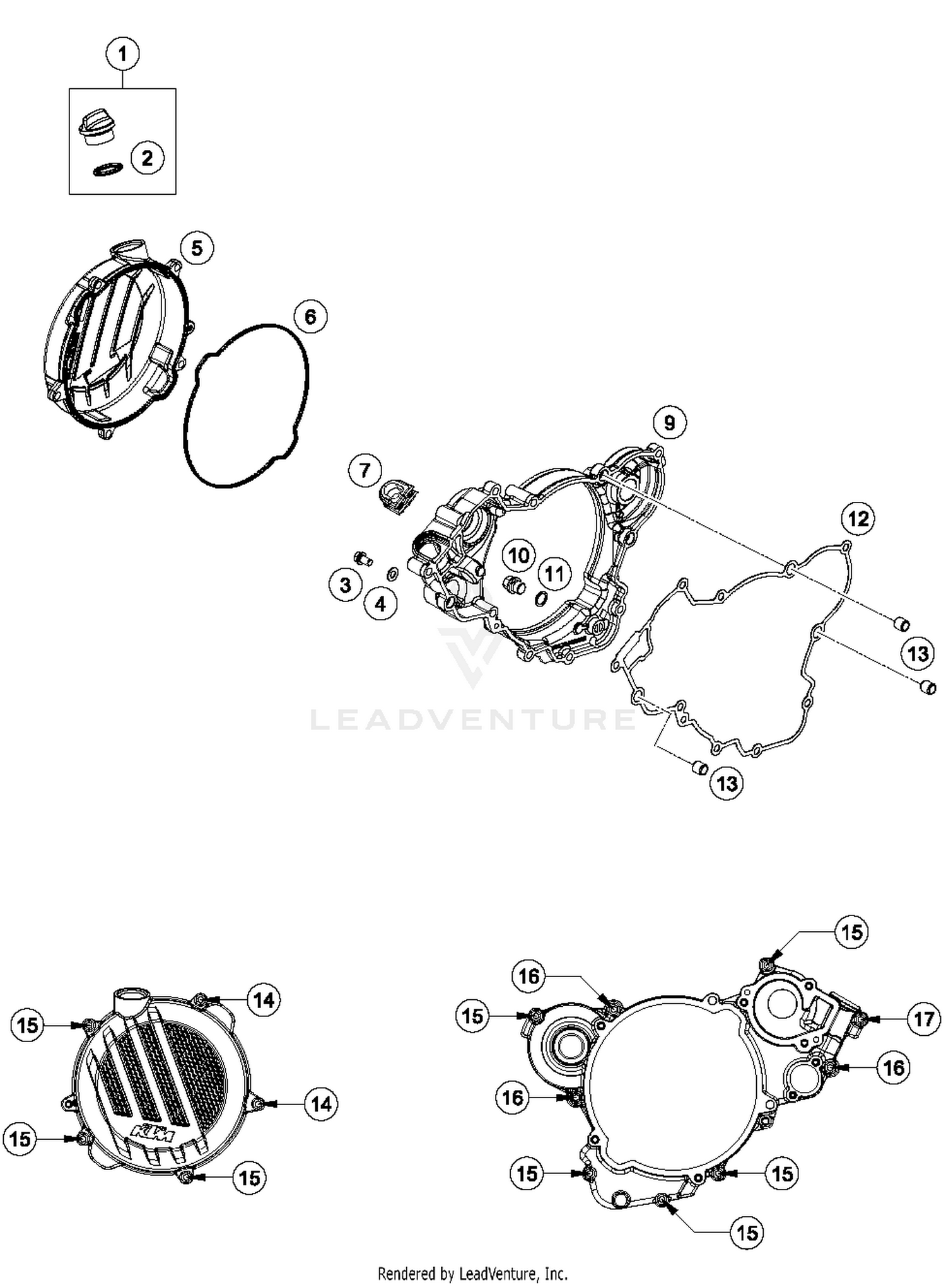

Clutch Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL FILLER CAP M24x3 WITH O-R
79430020033
|
$9.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
O-RING 19,00X3,00 NBR
0770191015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
HH collar screw M6x10 TX30
0025060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
OUTER CLUTCH COVER
5043002600015
|
$79.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET OUTER CLUTCH COVER
50430027000
|
$12.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
Sealing element
50437091000
Superseded by 50437091100
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
inner clutch cover cpl.
50430001044
Superseded by 51730001144
|
$161.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG DIN0910-M 10X1
0910100003
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
sealing ring DIN 7603 10x14x1
0603100141
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET INNER CLUTCH COVER
50430025000
|
$21.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
DOWEL 9,8 X7X10
49030090000
Superseded by 49030090100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HH collar screw M6x50 TX30
0025060506
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
