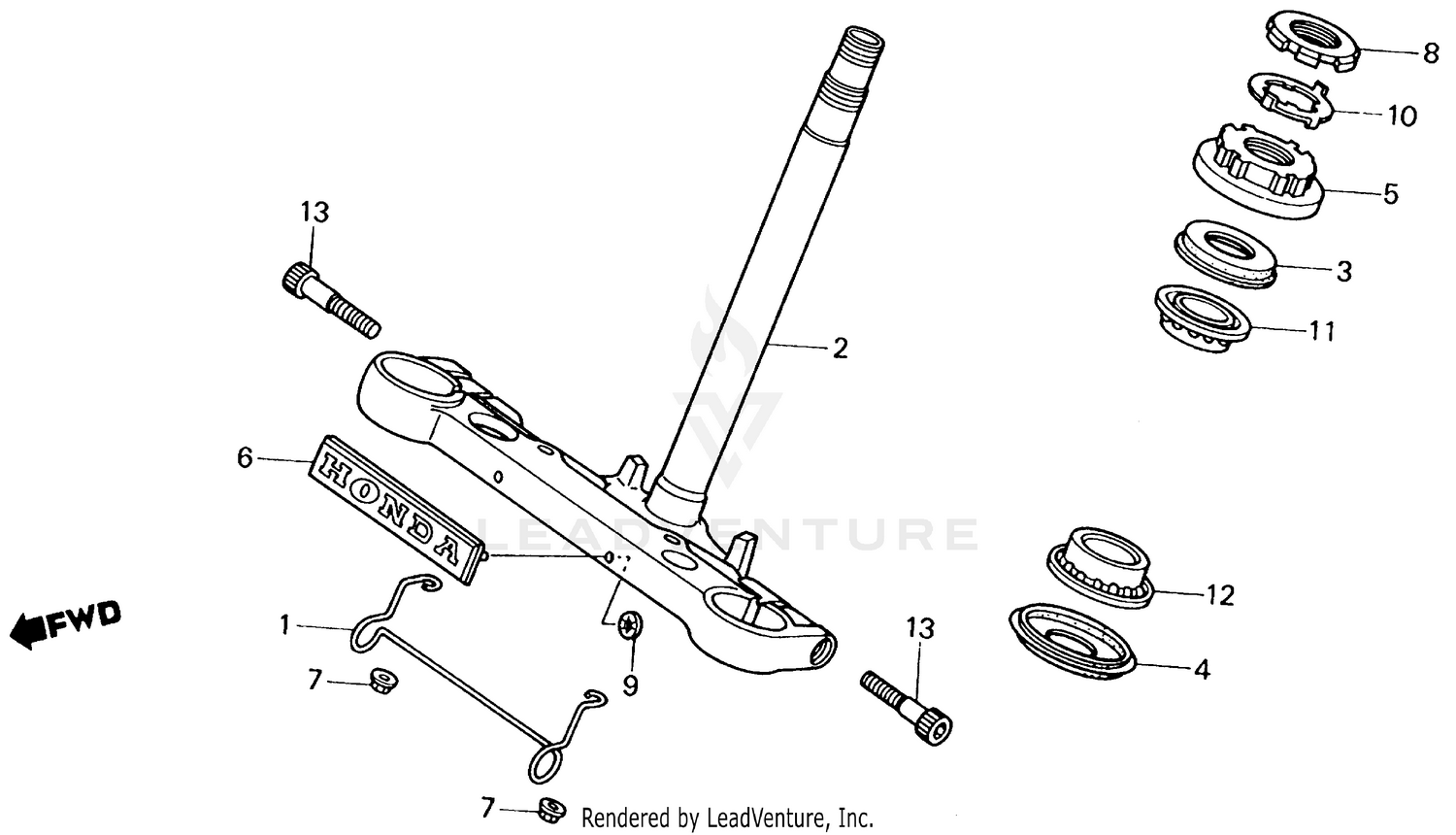

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, BRAKE HOSE
45127-MN0-000
|
$18.10 | ||
|
Unavailable |
|||
|
#2
STEM, STEERING (NOT AVAILABLE)
53200-MN0-000
|
$183.72 | ||
|
Unavailable |
|||
|
#3
DUST SEAL, STEERING HEAD
53213-MB4-771
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
DUST SEAL, STEERING HEAD
53214-371-010
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
THREAD, STEERING HEAD (UPPER)
53220-422-000
|
$39.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
EMBLEM, BRIDGE (LOWER)
61405-MN0-000
|
$23.28 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, FLANGE (6MM)
90301-428-900
Superseded by 94050-06070
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, FLANGE (6MM)
94050-06070
|
$1.52 | ||
|
Unavailable |
|||
|
#8
THREAD, STEERING HEAD TOP (B)
90302-425-830
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SPEED (3MM)
90313-567-000
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, LOCK
90506-425-830
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, HEAD PIPE (UPPER)
91015-KT8-005
|
$43.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, HEAD PIPE (LOWER)
91016-KT8-005
|
$43.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (10X40)
96700-10040-17
|
$1.80 | ||
|
Unavailable |
|||
