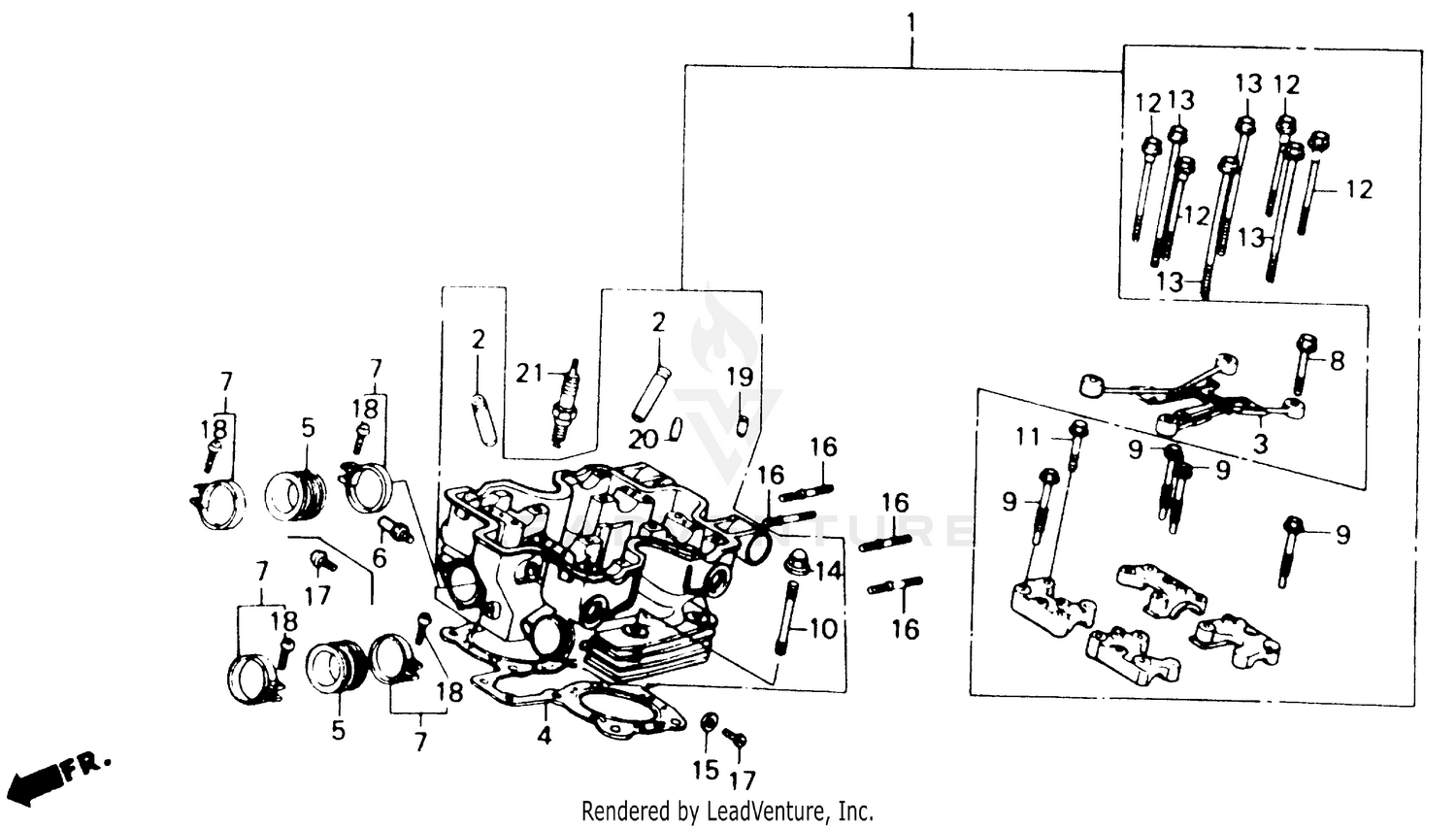

1987 Honda VF700CH MAGNA REAR CYLINDER HEAD OEM Parts Diagram

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Exhaust
+
Foot Control
+
Handlebars & Controls
+
Seat
+
Suspension
+
Item MSRP Qty
#1 CYLINDER HEAD ASSY., RR.
12020-MN0-000
$954.72
Available: Ships in 7-12 days.
Add to View Price
#2 GUIDE, VALVE (OS)
12204-MB0-405
Superseded by 12204-MS2-305
$18.91
Available: Ships in 7-12 days.
Add to View Price
#2 GUIDE, VALVE (OS)
12204-MS2-305
$18.91
Unavailable
#3 PIPE A, OIL PASSAGE (NOT AVAILABLE)
12230-MB0-010
$21.47
Available: Ships in 7-12 days.
Add to View Price
#4 GASKET, CYLINDER HEAD
12251-MN0-000
Superseded by 12251-MN0-505
$43.15
Available: Ships in 7-12 days.
Add to View Price
#4 GASKET, CYLINDER HEAD
12251-MN0-505
$43.15
Unavailable
#5 INSULATOR, CARBURETOR
16211-MB0-000
$29.07
Available: Ships in 7-12 days.
Add to View Price
#7 BAND, INSULATOR
16219-MB0-770
Superseded by 16223-KS5-000
$13.64
Available: Ships in 7-12 days.
Add to View Price
#7 BAND, INSULATOR
16223-KS5-000
$13.64
Unavailable
#8 BOLT, FLANGE (6X52)
90001-MB0-000
Superseded by 90009-HA0-000
$4.22
Available: Ships in 7-12 days.
Add to View Price
#9 BOLT, FLANGE (6X62)
90003-MB6-680
$4.35
Available: Ships in 7-12 days.
Add to View Price
#10 BOLT, STUD (9X99)
90005-MB6-680
$4.31
Available: Ships in 7-12 days.
Add to View Price
#11 BOLT, FLANGE (6X40)
90008-GE0-710
$3.50
Available: Ships in 7-12 days.
Add to View Price
#12 BOLT, UBS (8X151)
90012-KE8-000
$10.59
Available: Ships in 7-12 days.
Add to View Price
#13 BOLT, UBS (9X175)
90012-MB6-003
$12.18
Available: Ships in 7-12 days.
Add to View Price
#14 NUT, CAP (9MM)
90232-MB6-680
$3.87
Available: Ships in 7-12 days.
Add to View Price
#15 WASHER, SEALING (5MM)
90452-323-000
$1.49
Available: Ships in 7-12 days.
Add to View Price
#16 BOLT 2, STUD (6X32)
92900-06032-0E
$2.28
Available: Ships in 7-12 days.
Add to View Price
#17 SCREW, PAN (5X8)
93500-05008-0A
$0.73
In Stock: Ready to ship.
Add to View Price
#18 SCREW, PAN (5X28)
93500-05028-0G
$0.62
Available: Ships in 7-12 days.
Add to View Price
#19 PIN A, DOWEL (8X14) (YAMADA)
94301-08140
$1.93
In Stock: Ready to ship.
Add to View Price
#20 PIN A, DOWEL (12X20)
94301-12200
$2.12
Available: Ships in 7-12 days.
Add to View Price
#21 SPARK PLUG (DPR7EA-9) (NGK)
98069-57916
$2.91
Available: Ships in 7-12 days.
Add to View Price
#21 SPARK PLUG (X22EPR-U9) (DENSO)
98069-57926
$2.80
Available: Ships in 7-12 days.
Add to View Price
#21 SPARK PLUG (DPR8EA-9) (NGK)
98069-58916
$2.91
Available: Ships in 7-12 days.
Add to View Price
#21 SPARK PLUG (X24EPR-U9) (DENSO)
98069-58926
$2.80
Available: Ships in 7-12 days.
Add to View Price
#21 SPARK PLUG (DPR9EA-9) (NGK)
98069-59916
$2.91
Available: Ships in 7-12 days.
Add to View Price
#21 SPARK PLUG (X27EPR-U9) (DENSO)
98069-59926
$2.80
Available: Ships in 7-12 days.
Add to View Price
