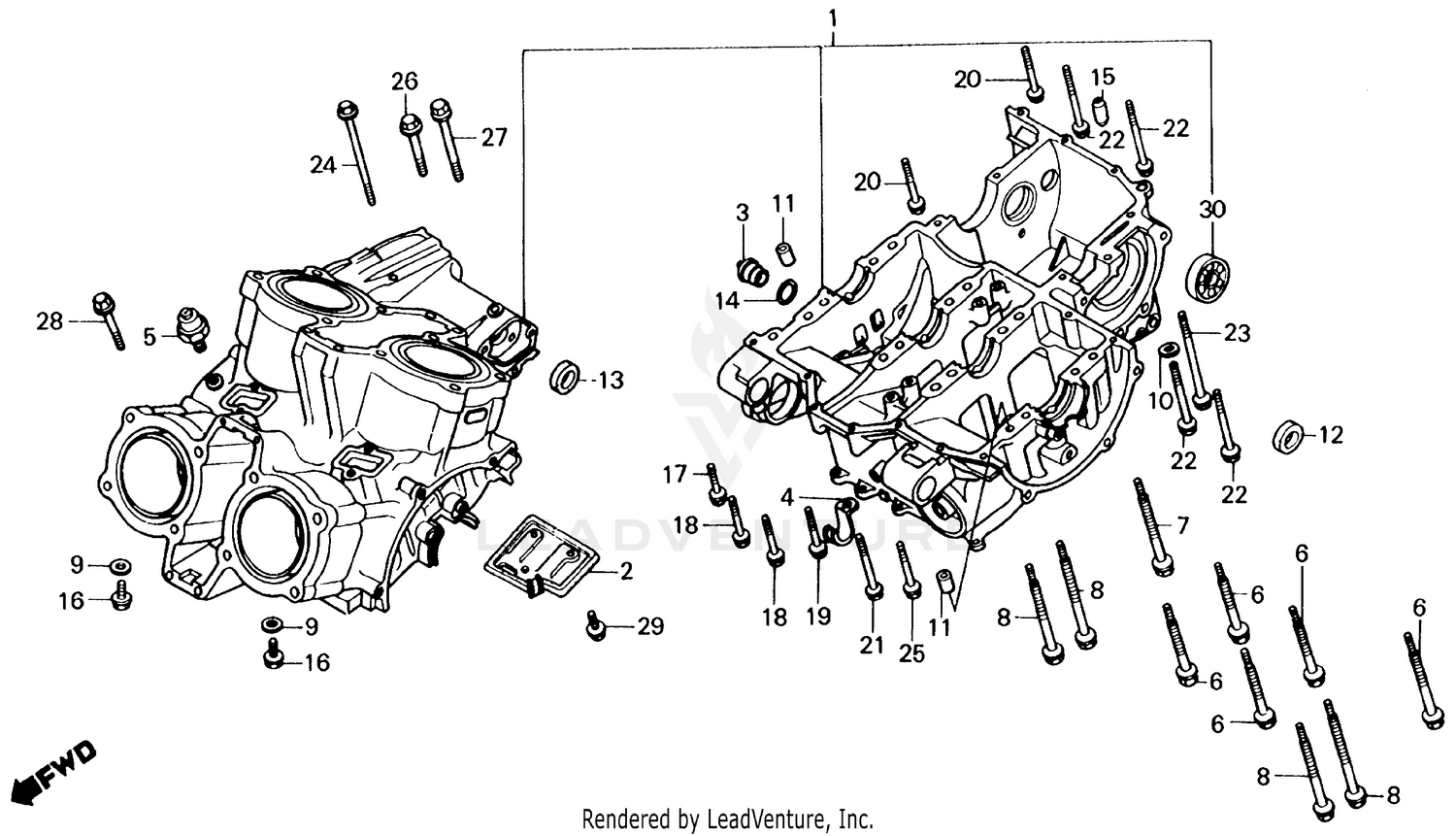

1987 Honda VF700CH MAGNA CYLINDER BLOCK OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BLOCK SET, CYLINDER
11000-MN0-000
|
$2,716.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
PLATE, OIL SEPARATE
11140-MB0-000
|
$26.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CAP, MAIN GALLERY
11207-MB0-000
|
$8.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CLIP, IGNITION CABLE
32906-061-000
|
$4.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-014
Superseded by 35500-MJ4-024
|
$40.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-024
|
$40.80 | ||
|
Unavailable |
|||
|
#6
BOLT, UBS (9X88)
90014-ML7-000
|
$9.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT, UBS (9X98)
90015-ML7-000
|
$8.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT, UBS (9X108)
90016-ML7-000
|
$11.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$2.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
WASHER, RR. BRAKE ARM
90525-001-000
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PIN, DOWEL (10X26)
90711-MF5-000
|
$4.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
OIL SEAL (12.5X25X8) (ARAI)
91204-425-003
|
$6.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
OIL SEAL (14X24X6) (ARAI)
91202-444-023
|
$3.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
OIL SEAL (14X24X6) (ARAI)
91210-MB0-003
Superseded by 91202-444-023
|
$3.76 | ||
|
Unavailable |
|||
|
#13
OIL SEAL (14X24X6) (ARAI)
91210-MB0-005
Superseded by 91202-444-023
|
$3.76 | ||
|
Unavailable |
|||
|
#13
OIL SEAL (14X24X6) (ARAI)
91210-MB0-013
Superseded by 91202-444-023
|
$3.76 | ||
|
Unavailable |
|||
|
#14
O-RING (18X2.8)
91314-MB0-003
|
$1.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
PIN A, DOWEL (8X14) (YAMADA)
94301-08140
|
$1.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$1.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.38 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (6X28)
95700-06028-00
|
$1.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X32)
95700-06032-00
Superseded by 95701-06032-00
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X32)
95701-06032-00
|
$1.62 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (6X40)
95700-06040-00
Superseded by 95701-06040-00
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X40)
95701-06040-00
|
$1.62 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6X45)
95700-06045-00
Superseded by 95701-06045-07
|
$1.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$1.87 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6X45)
95701-06045-07
|
$1.87 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (6X50)
95700-06050-00
Superseded by 95701-06050-00
|
$1.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X50)
95701-06050-00
|
$1.87 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X60)
95700-06060-00
Superseded by 95701-06060-00
|
$0.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X60)
95701-06060-00
|
$0.29 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X90)
95700-06090-00
Superseded by 95701-06090-00
|
$1.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X90)
95701-06090-00
|
$1.82 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X100)
95700-06100-00
Superseded by 95701-06100-00
|
$2.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X100)
95701-06100-00
|
$2.58 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (8X45)
95700-08045-00
Superseded by 95701-08045-00
|
$1.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BOLT, FLANGE (8X45)
95701-08045-00
|
$1.35 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (8X50)
95700-08050-00
Superseded by 95701-08050-00
|
$2.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X50)
95701-08050-00
|
$2.12 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (8X80)
95700-08080-00
Superseded by 95701-08080-00
|
$1.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X80)
95701-08080-00
|
$1.51 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$1.87 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (6X45)
95701-06045-07
|
$1.87 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X12)
96000-06012-00
Superseded by 96001-06012-00
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.53 | ||
|
Unavailable |
|||
|
#30
BEARING, RADIAL BALL (6304)
96100-63040-00
|
$13.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
