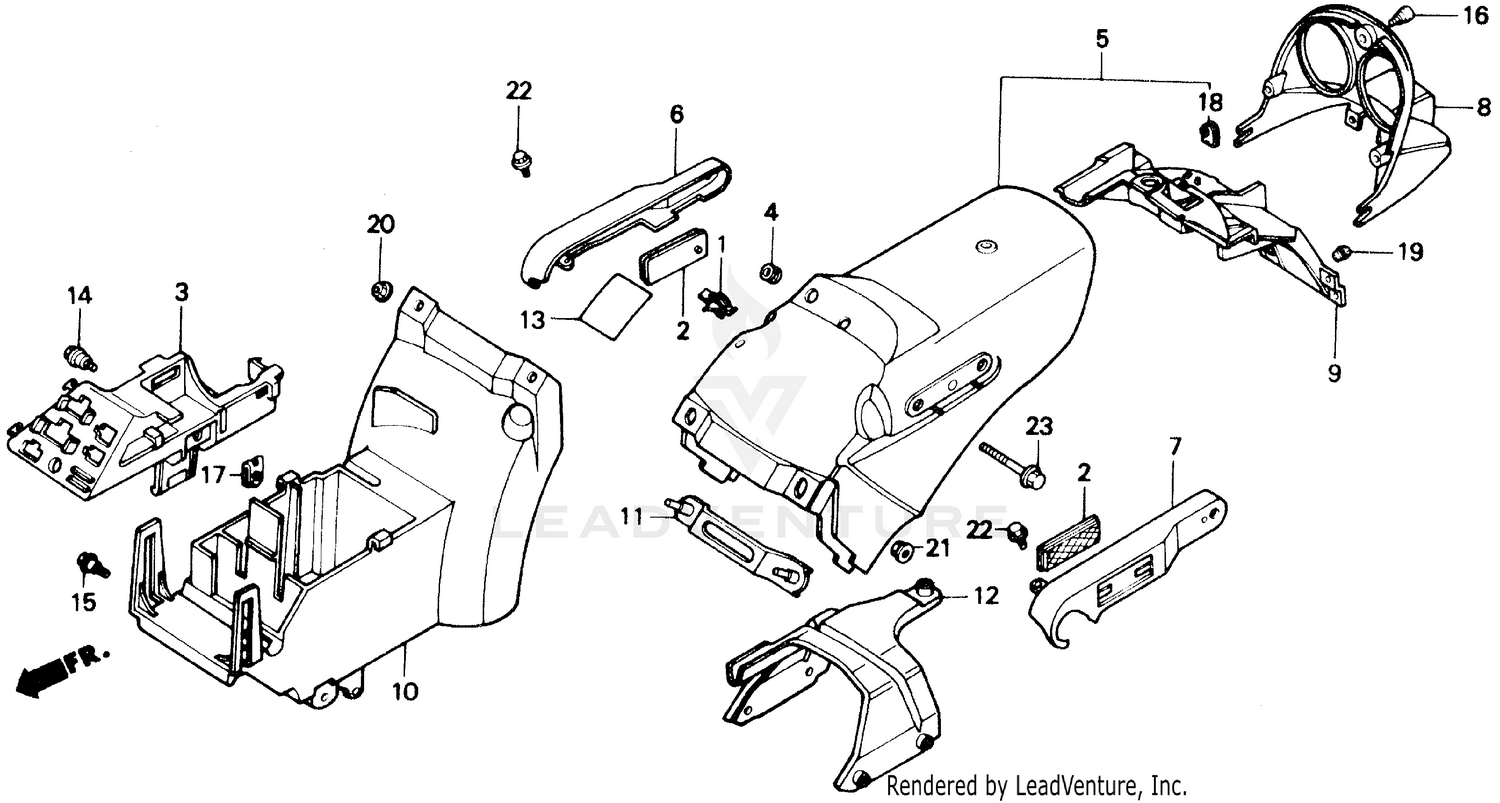

1987 Honda VF700CH MAGNA REAR FENDER OEM Parts Diagram

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Exhaust
+
Foot Control
+
Handlebars & Controls
+
Seat
+
Suspension
+
Item MSRP Qty
#1 CLIP B, HARNESS
32172-GJ1-003
$3.55
Available: Ships in 7-12 days.
Add to View Price
#2 REFLECTOR, REFLEX (NOT AVAILABLE)
33742-MN0-003
$20.07
Available: Ships in 7-12 days.
Add to View Price
#3 PLATE, ELECTRIC
50326-MN0-000
$20.86
Available: Ships in 7-12 days.
Add to View Price
#4 GROMMET B, METER CASE
66219-634-000
$4.01
Available: Ships in 7-12 days.
Add to View Price
#5 COWL, RR. *PB161CU* (CANDY WAVE BLUE-U)
77200-MN0-P00ZA
$205.35
Available: Ships in 7-12 days.
Add to View Price
#5 COWL, RR. *R107CU* (CANDY BOURGOGNE RED-U)
77200-MN0-P00ZB
$205.35
Available: Ships in 7-12 days.
Add to View Price
#5 COWL, RR. *PB161CU* (CANDY WAVE BLUE-U)
77200-MN0-000ZA
Superseded by 77200-MN0-P00ZA
$205.35
Unavailable
#5 COWL, RR. *R107CU* (CANDY BOURGOGNE RED-U)
77200-MN0-000ZB
Superseded by 77200-MN0-P00ZB
$205.35
Unavailable
#6 GRAB RAIL, R.
77330-MN0-000
Superseded by 77330-MN0-010
$78.87
Available: Ships in 7-12 days.
Add to View Price
#7 GRAB RAIL, L.
77340-MN0-000
Superseded by 77340-MN0-010
$78.87
Available: Ships in 7-12 days.
Add to View Price
#8 FENDER A, RR. (NOT AVAILABLE)
80100-MN0-000
$51.60
Available: Ships in 7-12 days.
Add to View Price
#9 FENDER (INNER)
80101-MN0-000
Superseded by 80101-MN2-000
$51.95
Available: Ships in 7-12 days.
Add to View Price
#9 FENDER (INNER)
80101-MN2-000
$51.95
Unavailable
#10 FENDER B, RR.
80105-MN0-000
$66.32
Available: Ships in 7-12 days.
Add to View Price
#11 STAY, RR. COWL SET (NOT AVAILABLE)
80106-MN0-000
$14.68
Available: Ships in 7-12 days.
Add to View Price
#12 PLATE, CROSS (INNER)
80110-MN0-000
$68.38
Available: Ships in 7-12 days.
Add to View Price
#13 MARK, BATTERY CAUTION
87506-MN0-300
$3.03
Available: Ships in 7-12 days.
Add to View Price
#14 BOLT, RR. FENDER
90003-GC3-000
$1.68
Available: Ships in 7-12 days.
Add to View Price
#15 BOLT, FLANGE (6MM)
90111-187-000
$5.77
Available: Ships in 7-12 days.
Add to View Price
#16 BOLT, SOCKET (5X15)
90151-MN0-000
$4.20
Available: Ships in 7-12 days.
Add to View Price
#17 NUT, SPRING (5MM)
90320-HB9-000
$2.84
Available: Ships in 7-12 days.
Add to View Price
#18 NUT, SPRING (5MM)
90320-MN0-000
$3.17
Available: Ships in 7-12 days.
Add to View Price
#19 PLUG, CONE TYPE
90899-422-610
$1.78
Available: Ships in 7-12 days.
Add to View Price
#20 NUT, FLANGE (6MM)
94050-06080
$0.55
In Stock: Ready to ship.
Add to View Price
#21 NUT, FLANGE (8MM)
94050-08080
$0.78
In Stock: Ready to ship.
Add to View Price
#22 BOLT, FLANGE (6X10)
95701-06010-08
$1.37
In Stock: Ready to ship.
Add to View Price
#23 BOLT, FLANGE (8X40)
95701-08040-08
$1.97
Available: Ships in 7-12 days.
Add to View Price
