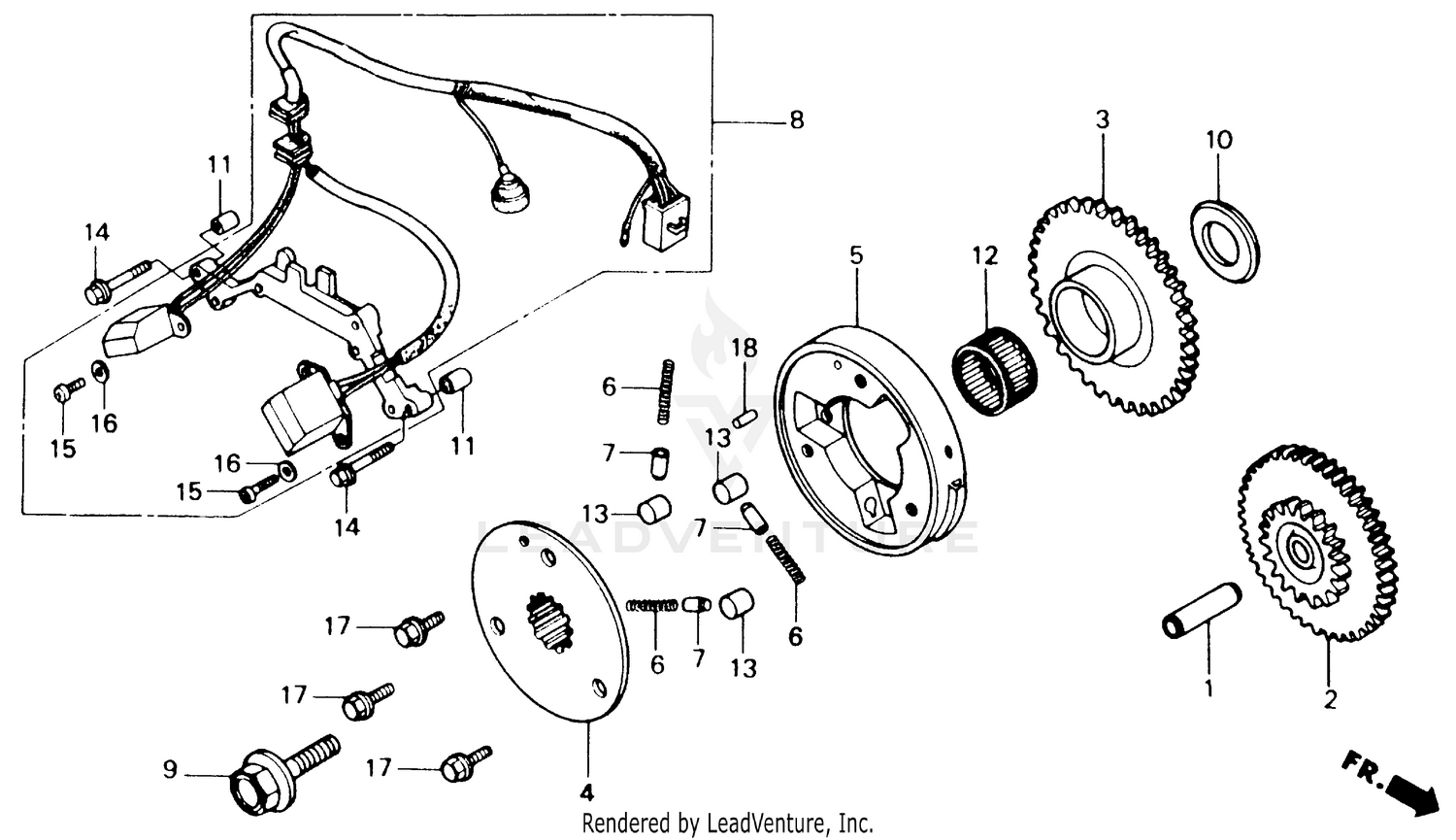

Pulse Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, PISTON
13111-GK8-000
Superseded by 13111-GS7-000
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#1
PIN, PISTON
13111-GS7-000
|
$11.57 | ||
|
Unavailable |
|||
|
#1
PIN, PISTON
13111-122-000
Superseded by 13111-GS7-000
|
$11.57 | ||
|
Unavailable |
|||
|
#2
GEAR, STARTER REDUCTION (21T/82T)
28101-MB0-000
|
$94.75 | ||
|
Unavailable |
|||
|
#3
GEAR, STARTER CLUTCH (48T)
28110-MB0-010
|
$142.43 | ||
|
Unavailable |
|||
|
#4
FLANGE, STARTER CLUTCH (NOT AVAILABLE)
28115-MN0-000
|
$73.25 | ||
|
Unavailable |
|||
|
#5
CLUTCH, STARTER (OUTER) (NOT AVAILABLE)
28120-MN0-000
|
$153.87 | ||
|
Unavailable |
|||
|
#6
SPRING, STARTER CLUTCH ROLLER
28125-516-030
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, STARTER CLUTCH ROLLER SPRING
28126-415-000
|
$22.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
GENERATOR ASSY., PULSE
30300-MN0-154
Superseded by 30300-MN0-164
|
$89.07 | ||
|
Unavailable |
|||
|
#8
GENERATOR ASSY., PULSE
30300-MN0-164
|
$89.07 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE (12X45)
90023-HA7-670
Superseded by 90024-MT3-000
|
$13.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (12X45)
90023-428-000
Superseded by 90024-MT3-000
|
$13.43 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE (12X45)
90024-MT3-000
|
$13.43 | ||
|
Unavailable |
|||
|
#10
WASHER, SPLINE (23MM)
90433-MB0-000
|
$17.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL (8X8)
90702-MB0-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, NEEDLE (30X35X17)
91022-MB0-003
|
$42.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, NEEDLE (30X35X17)
91022-MB0-004
|
$28.56 | ||
|
Unavailable |
|||
|
#13
ROLLER (15X13)
91101-516-000
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-WASHER (6X25)
93401-06025-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-WASHER (6X25)
93491-06025-00
Superseded by 93401-06025-00
|
$1.05 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN (4X12)
93500-04012-0H
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING (4MM)
94111-04800
|
$1.03 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (8X14)
95700-08014-08
Superseded by 95701-08014-08
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X14)
95701-08014-08
|
$1.83 | ||
|
Unavailable |
|||
|
#18
ROLLER (6X15)
96220-60150
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
