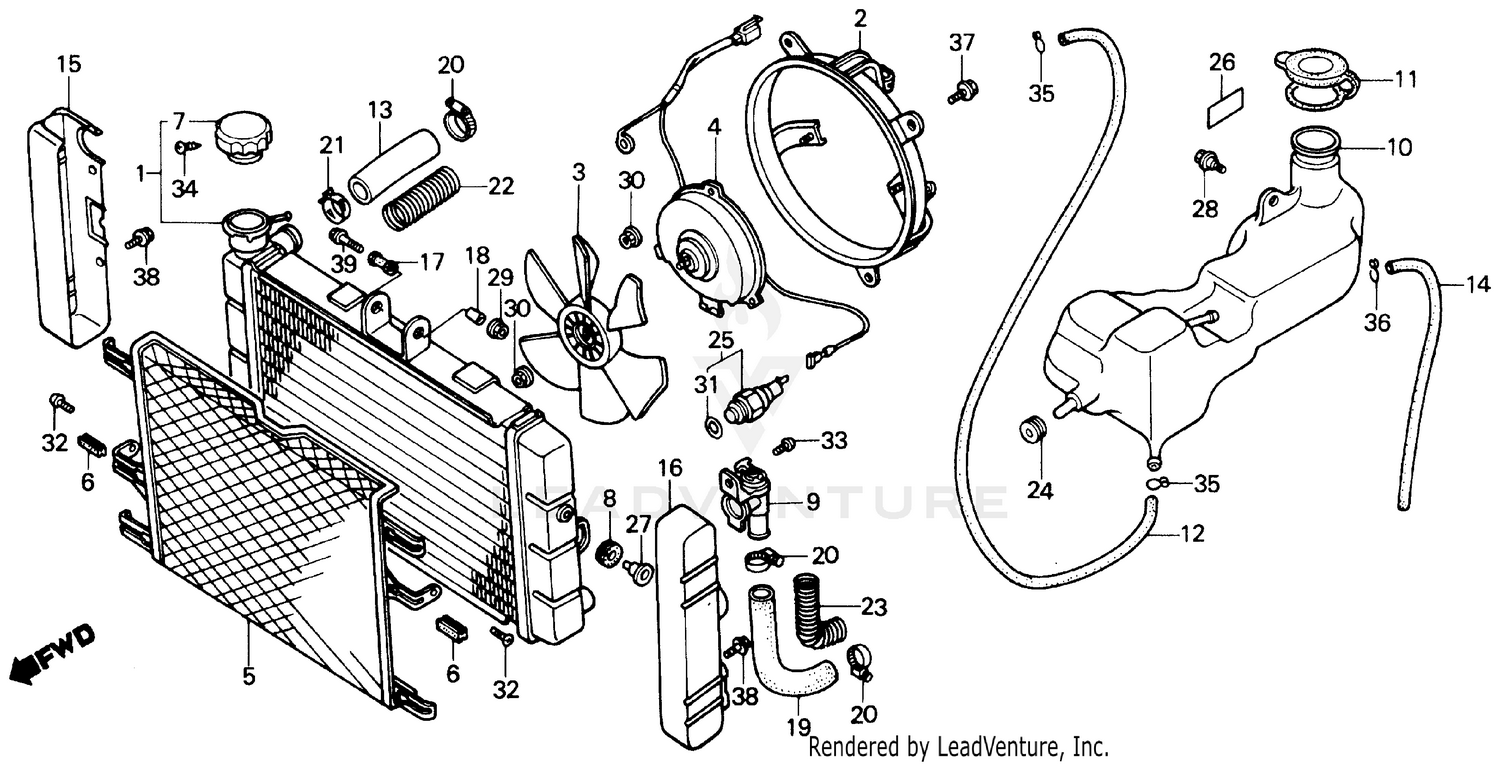

1987 Honda VF700CH MAGNA RADIATOR OEM Parts Diagram

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Exhaust
+
Foot Control
+
Handlebars & Controls
+
Seat
+
Suspension
+
Item MSRP Qty
#1 RADIATOR (TOYO)
19010-MN0-P00
$701.50
Available: Ships in 7-12 days.
Add to View Price
#1 RADIATOR (TOYO)
19010-MN0-003
Superseded by 19010-MN0-P00
$701.50
Unavailable
#2 SHROUD
19015-MN0-003
$77.72
Available: Ships in 7-12 days.
Add to View Price
#3 FAN, COOLING
19020-MG8-003
$53.25
Available: Ships in 7-12 days.
Add to View Price
#4 MOTOR, FAN
19030-MN0-004
Superseded by 19030-MN0-024
$269.17
Available: Ships in 7-12 days.
Add to View Price
#4 MOTOR, FAN
19030-MN0-014
Superseded by 19030-MN0-024
$269.17
Unavailable
#4 MOTOR, FAN
19030-MN0-024
$269.17
Unavailable
#5 GRILLE, RADIATOR
19032-MN0-000
$137.01
Available: Ships in 7-12 days.
Add to View Price
#6 RUBBER, RADIATOR GRILLE
19033-MN0-000
$2.94
Available: Ships in 7-12 days.
Add to View Price
#7 CAP, RADIATOR
19045-MB0-702
Superseded by 19045-MZ3-405
$28.33
In Stock: Ready to ship.
Add to View Price
#8 RUBBER, RADIATOR SETTING
19051-MN0-000
$4.21
Available: Ships in 7-12 days.
Add to View Price
#9 VALVE ASSY., RADIATOR
19060-MN0-003
$77.41
Available: Ships in 7-12 days.
Add to View Price
#10 TANK, RESERVE (NOT AVAILABLE)
19101-MN0-000
$26.58
Available: Ships in 7-12 days.
Add to View Price
#11 CAP, RESERVE TANK
19104-MB0-700
$11.69
Available: Ships in 7-12 days.
Add to View Price
#12 TUBE, RADIATOR RESERVE (NOT AVAILABLE)
19105-MN0-000
$12.30
Available: Ships in 7-12 days.
Add to View Price
#13 HOSE, RADIATOR (UPPER) (NOT AVAILABLE)
19107-MN0-000
$7.23
Available: Ships in 7-12 days.
Add to View Price
#14 TUBE, RESERVE TANK OVERFLOW
19108-MN0-000
$7.49
Available: Ships in 7-12 days.
Add to View Price
#15 COVER, R. RADIATOR
19110-MN0-000
$36.62
Available: Ships in 7-12 days.
Add to View Price
#16 COVER, L. RADIATOR
19111-MN0-000
$39.25
Available: Ships in 7-12 days.
Add to View Price
#17 RUBBER, RADIATOR SETTING
19113-MB0-000
$5.37
Available: Ships in 7-12 days.
Add to View Price
#18 COLLAR, RADIATOR SETTING
19114-MB0-000
$3.81
Available: Ships in 7-12 days.
Add to View Price
#19 HOSE, RADIATOR (LOWER) (NOT AVAILABLE)
19115-MN0-000
$12.32
Available: Ships in 7-12 days.
Add to View Price
#20 CLAMP, HOSE (24-32MM)
19503-ML0-003
Superseded by 19516-ML7-691
$13.85
Available: Ships in 7-12 days.
Add to View Price
#20 CLAMP, HOSE (24-32)
19516-ML7-691
$13.85
Unavailable
#21 CLAMP, HOSE (22-29MM)
19513-MF5-000
Superseded by 19517-ML7-691
$11.16
Available: Ships in 7-12 days.
Add to View Price
#21 CLAMP, HOSE (22-29MM)
19513-MM4-003
Superseded by 19517-ML7-691
$11.16
Unavailable
#21 CLAMP, HOSE (22-29)
19517-ML7-691
$11.16
Unavailable
#22 GUARD, RADIATOR HOSE (UPPER/LOWER) (NOT AVAILABLE)
19551-MN0-000
$7.44
Available: Ships in 7-12 days.
Add to View Price
#23 GUARD, RADIATOR HOSE (LOWER)
19552-MN0-000
$18.56
Available: Ships in 7-12 days.
Add to View Price
#24 GROMMET A, TUBE
36043-657-000
Superseded by 36037-657-000
$6.37
Available: Ships in 7-12 days.
Add to View Price
#25 SWITCH ASSY., THERMO
37760-MB2-901
Superseded by 37760-MR1-003
$57.11
Available: Ships in 7-12 days.
Add to View Price
#25 SWITCH ASSY., THERMO
37760-MR1-003
$57.11
Unavailable
#26 LABEL, RESERVE TANK
87507-MB4-670
$3.19
Available: Ships in 7-12 days.
Add to View Price
#27 BOLT, RADIATOR SETTING
90111-MN0-000
$6.64
Available: Ships in 7-12 days.
Add to View Price
#28 BOLT, FLANGE (6MM)
90111-187-000
$5.77
Available: Ships in 7-12 days.
Add to View Price
#29 NUT, FLANGE (6MM)
90301-428-900
Superseded by 94050-06070
$1.25
Available: Ships in 7-12 days.
Add to View Price
#29 NUT, FLANGE (6MM)
94050-06070
$1.25
Unavailable
#30 NUT, SERRATE (5MM)
90315-MK3-003
$2.11
Available: Ships in 7-12 days.
Add to View Price
#31 O-RING (13.5X1.4)
91307-PH7-660
$2.62
Available: Ships in 7-12 days.
Add to View Price
#31 O-RING (13.5X1.4)
91307-611-000
Superseded by 91307-PH7-660
$2.62
Unavailable
#32 SCREW, PAN (6X10)
93500-06010
$0.83
Available: Ships in 7-12 days.
Add to View Price
#32 SCREW, PAN (6X10)
93500-06010-0A
$0.83
Available: Ships in 7-12 days.
Add to View Price
#33 SCREW, PAN (6X10)
93500-06010-0H
$0.80
Available: Ships in 7-12 days.
Add to View Price
#33 SCREW, PAN (6X10)
93500-06010-08
Superseded by 93500-06010-0H
$0.80
Unavailable
#34 SCREW, TAPPING (3X8)
93901-22180
$0.77
Available: Ships in 7-12 days.
Add to View Price
#35 CLIP, TUBE (B12)
95002-02120
$1.72
In Stock: Ready to ship.
Add to View Price
#36 CLIP, TUBE (C11)
95002-70000
$1.40
Available: Ships in 7-12 days.
Add to View Price
#37 BOLT, FLANGE (6X10)
96000-06010-00
Superseded by 96001-06010-00
$1.38
Available: Ships in 7-12 days.
Add to View Price
#37 BOLT, FLANGE (6X10)
96001-06010-00
$1.38
Unavailable
#38 BOLT, FLANGE (6X10)
96000-06010-07
Superseded by 96001-06010-07
$1.38
Available: Ships in 7-12 days.
Add to View Price
#38 BOLT, FLANGE (6X10)
96001-06010-07
$1.38
Unavailable
#39 BOLT, FLANGE (6X45)
96000-06045-07
Superseded by 96001-06045-07
$1.87
Available: Ships in 7-12 days.
Add to View Price
#39 BOLT, FLANGE (6X45)
96001-06045-07
$1.87
Unavailable
