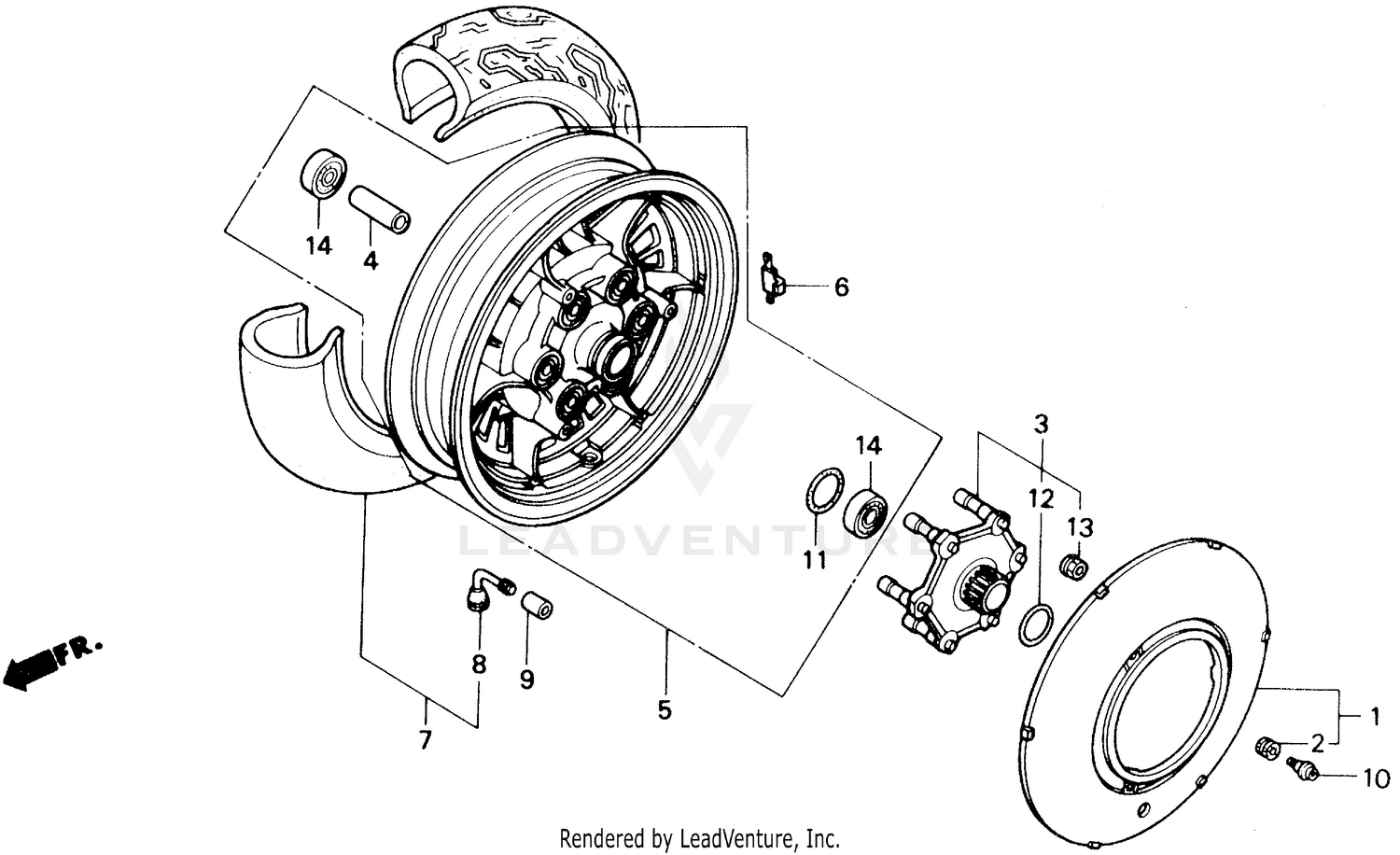

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, RR. WHEEL (NOT AVAILABLE)
42200-MN0-000
|
$154.39 | ||
|
Unavailable |
|||
|
#2
GROMMET, RR. WHEEL COVER (NOT AVAILABLE)
42220-MN0-300
|
$1.48 | ||
|
Unavailable |
|||
|
#3
FLANGE SET, FINAL DRIVEN
42610-MG8-770
Superseded by 42630-MG8-305
|
$235.66 | ||
|
Unavailable |
|||
|
#3
FLANGE SET, FINAL DRIVEN
42610-MG8-771
Superseded by 42630-MG8-305
|
$235.66 | ||
|
Unavailable |
|||
|
#3
FLANGE SET, FINAL DRIVEN
42630-MG8-305
|
$235.66 | ||
|
Unavailable |
|||
|
#4
COLLAR, RR. DISTANCE
42620-ME1-405
|
$13.90 | ||
|
Unavailable |
|||
|
#4
COLLAR, RR. DISTANCE
42620-MN0-000
Superseded by 42620-ME1-405
|
$13.90 | ||
|
Unavailable |
|||
|
#5
WHEEL SET, RR.
42650-MN0-305
Superseded by 42650-MN0-315
|
$637.15 | ||
|
Unavailable |
|||
|
#5
WHEEL SET, RR.
42650-MN0-315
|
$637.15 | ||
|
Unavailable |
|||
|
#6
WEIGHT, BALANCE (10G)
42704-MN0-000
|
$8.23 | ||
|
Unavailable |
|||
|
#6
WEIGHT, BALANCE (20)
42705-MN0-000
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
WEIGHT, BALANCE (30)
42706-MN0-000
|
$8.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP)
42710-MN0-003
Superseded by 42711-MZ5-024
|
$221.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP)
42710-MN0-004
Superseded by 42711-MZ5-024
|
$221.35 | ||
|
Unavailable |
|||
|
#7
TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP)
42710-MN0-014
Superseded by 42711-MZ5-024
|
$221.35 | ||
|
Unavailable |
|||
|
#7
TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP)
42710-MZ5-004
Superseded by 42711-MZ5-024
|
$221.35 | ||
|
Unavailable |
|||
|
#7
TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP)
42711-MZ5-004
Superseded by 42711-MZ5-024
|
$221.35 | ||
|
Unavailable |
|||
|
#7
TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP)
42711-MZ5-014
Superseded by 42711-MZ5-024
|
$221.35 | ||
|
Unavailable |
|||
|
#7
TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP)
42711-MZ5-024
|
$221.35 | ||
|
Unavailable |
|||
|
#8
VALVE, RIM (BS) (NOT AVAILABLE)
42753-MN0-003
|
$8.48 | ||
|
Unavailable |
|||
|
#8
VALVE, RIM (BS) (NOT AVAILABLE)
42753-MN0-004
Superseded by 42753-MN0-003
|
$8.48 | ||
|
Unavailable |
|||
|
#9
TUBE, RIM VALVE (NOT AVAILABLE)
42754-MN0-000
|
$1.21 | ||
|
Unavailable |
|||
|
#10
BOLT, SOCKET (5X10)
90128-MN0-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (61X2)
91302-MA6-003
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (46.5X3.5)
91358-MB0-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (10MM)
94050-10080
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, RADIAL BALL (6204UU)
96150-62040-10
|
$22.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
