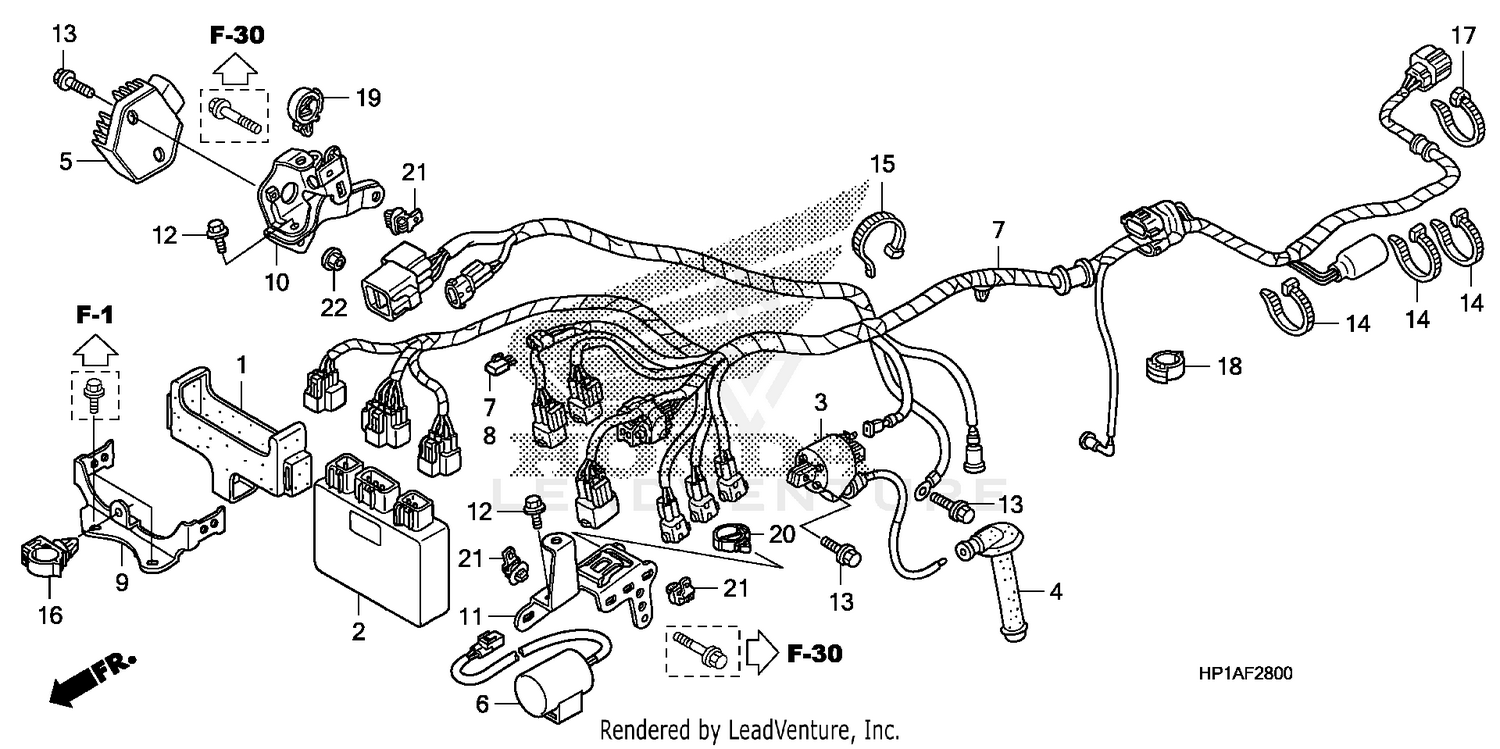

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-HP1-600
|
$8.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
MODULE, IGNITION CONTROL (CDI)
30410-HP1-A02
|
$563.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
COIL, IGNITION
30500-HP1-003
|
$83.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY., NOISE SUPPRESSOR
30700-MEB-671
|
$61.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
RECTIFIER, REGULATOR
31600-KTB-003
|
$254.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE HARNESS
32100-HP1-600
|
$478.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR, DIODE (2P) (3A)
32146-S84-003
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, C.D.I.
50128-HP1-600
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, R. SHROUD
61101-HP1-900
|
$16.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, L. SHROUD
61102-HP1-900
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X12) (NSHF)
90004-GHB-610
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X18) (NSHF)
90004-GHB-640
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, WIRE
90650-HP1-000
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND, WIRE
90650-KW3-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP, HARNESS
90652-HC4-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, HARNESS
90652-HP1-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, WIRE HARNESS
90683-KJ2-003
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, HARNESS
90684-ZA0-600
Superseded by 90684-ZA0-601
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, WIRE HARNESS
90684-ZA0-601
|
$3.67 | ||
|
Unavailable |
|||
|
#20
STRAP, WIRE HARNESS (25MM) (BLACK)
90690-SA0-003
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, CONNECTOR (BLACK) (Honda Code 7386865)
91565-SEL-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
