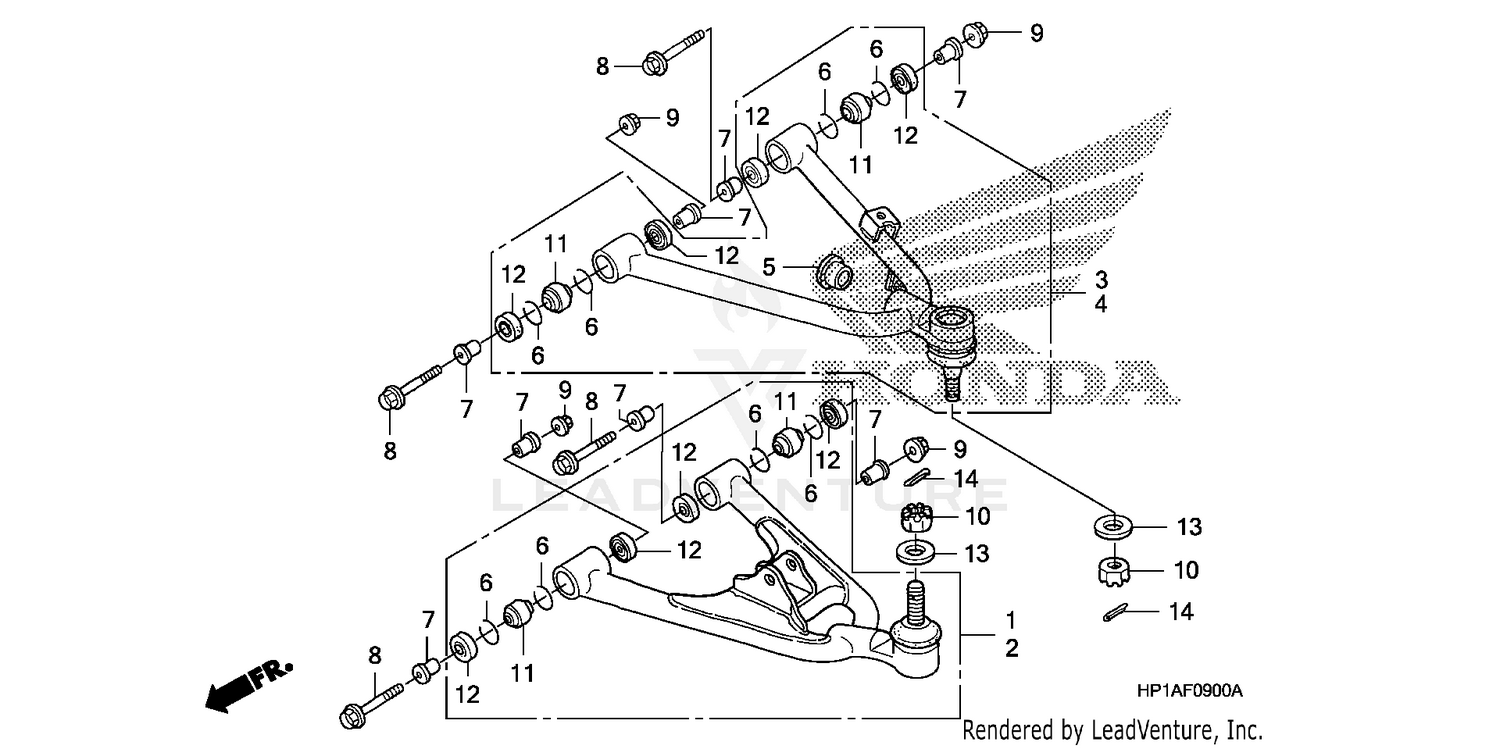

Front Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM ASSY., R. FR. (LOWER)
51350-HP1-A20
|
$253.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM ASSY., L. FR. (LOWER)
51360-HP1-A20
|
$253.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM ASSY., R. FR. (UPPER)
51370-HP1-A60
|
$234.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM ASSY., L. FR. (UPPER)
51380-HP1-A60
|
$224.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, ARM (UPPER)
51391-HP6-A00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, STOPPER
51393-HB9-670
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, FR. ARM PIVOT
51394-HC0-000
|
$13.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (10X62)
90183-HC0-770
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, SPECIAL (10MM) (THOMPSON)
91077-HB9-672
|
$46.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL, FR. ARM PIVOT (ARAI) (RR.)
91265-HB9-671
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN (12MM)
94102-12000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SPLIT (3.0X18)
94201-30180
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
