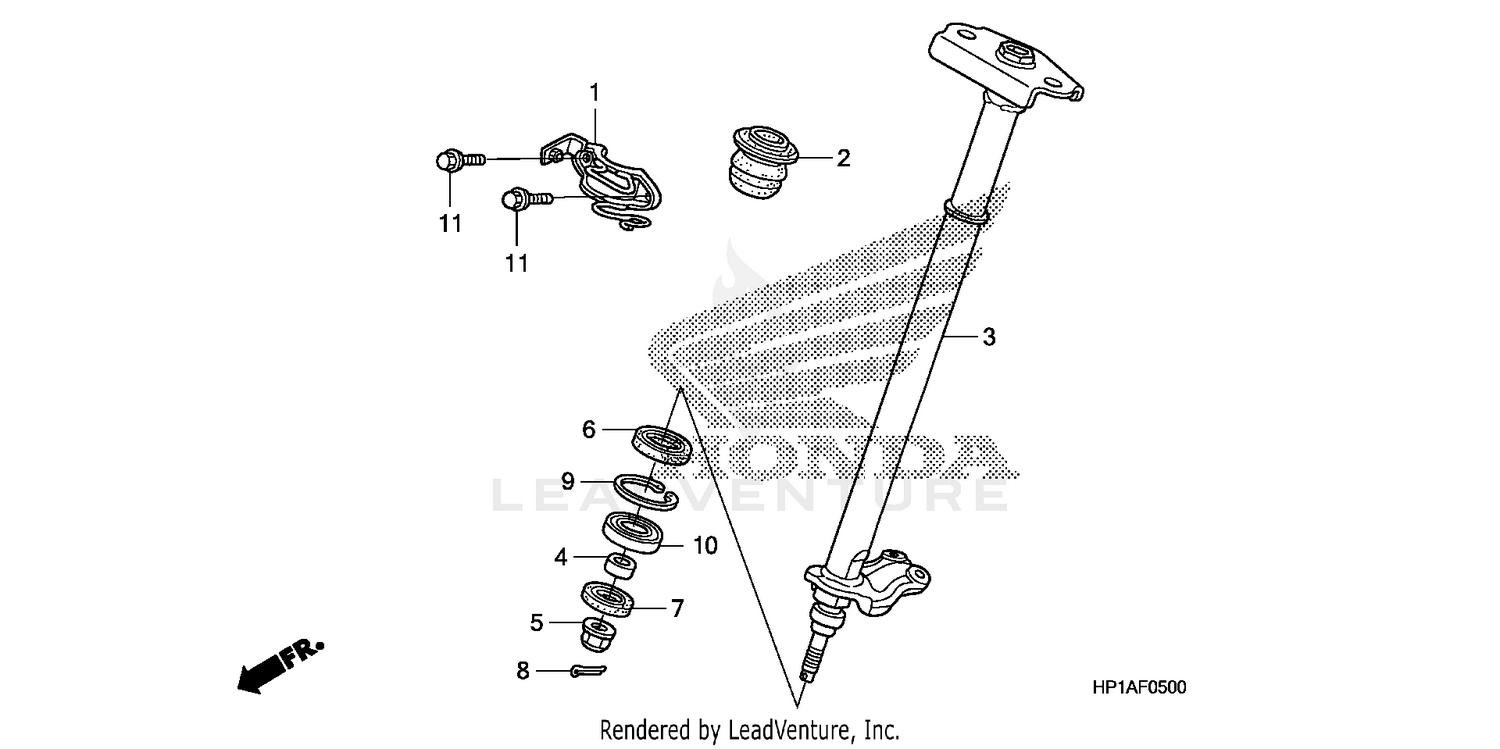

Steering Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, STEERING SHAFT
53220-HP1-A00
|
$28.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH, STEERING
53221-HP1-003
|
$17.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, STEERING
53310-HP1-600
|
$353.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, STEERING SHAFT
53317-HM8-A00
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCK (14MM)
90213-S73-003
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (27X40X6) (ARAI)
90753-GB4-681
Superseded by 90753-GK4-003
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (27X40X6) (ARAI)
90753-GK4-003
|
$10.49 | ||
|
Unavailable |
|||
|
#7
DUST SEAL (23X35X7)
91205-VM6-003
|
$11.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, COTTER (3.0X45)
94201-30200
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#8
PIN, COTTER (3.0X45)
94201-30280
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#8
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#8
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#8
PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#9
CIRCLIP (INNER) (40MM)
94520-40000
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, RADIAL BALL (6203UU)
96150-62033-10
|
$21.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X16)
96300-08016-07
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X16)
96400-08016-07
Superseded by 96300-08016-07
|
$1.47 | ||
|
Unavailable |
|||
