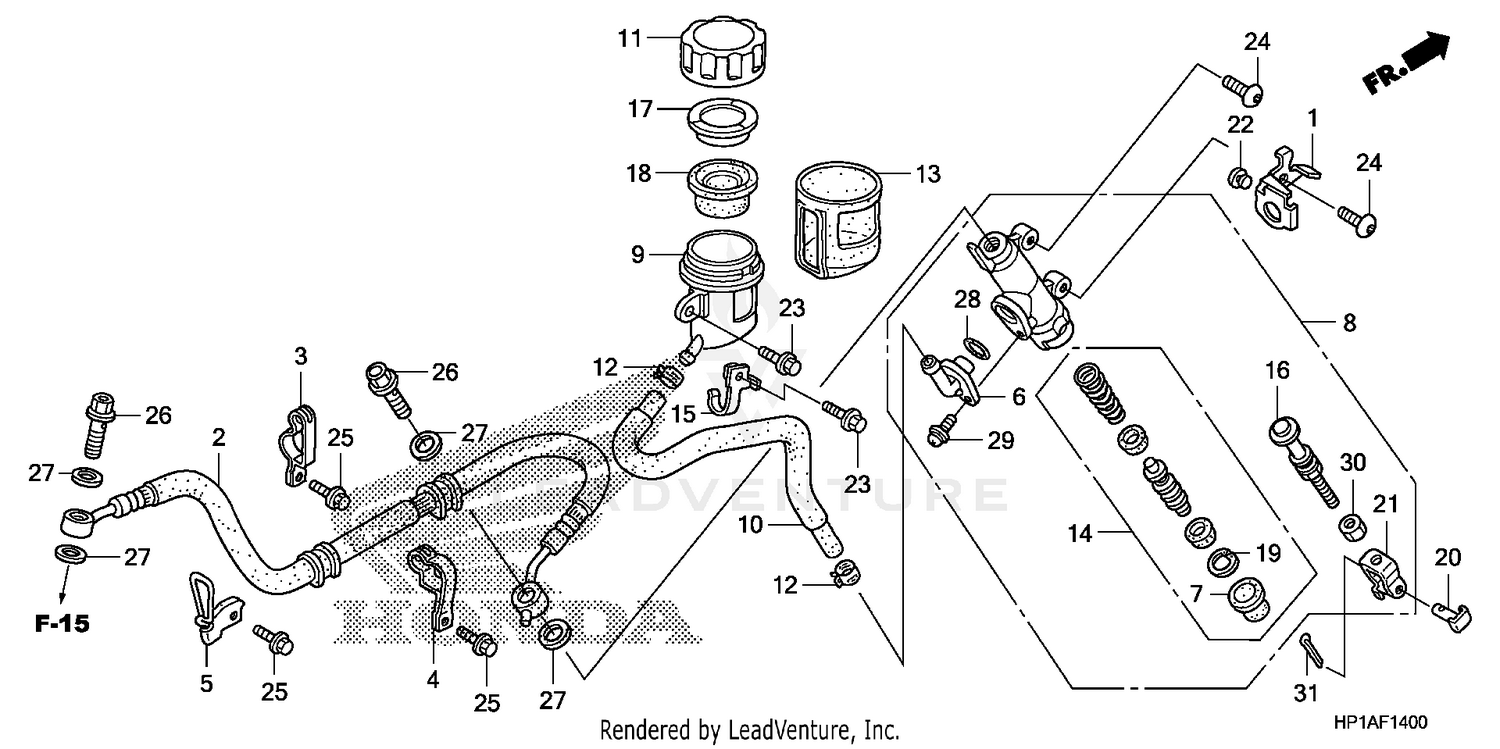

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, STOP SWITCH
35351-HP1-600
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, RR. BRAKE
43310-HP1-602
|
$64.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP A, RR. BRAKE HOSE
43462-HP1-600
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP B, RR. BRAKE HOSE
43464-HP1-600
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, BRAKE HOSE
43465-HP1-600
|
$16.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONNECTOR
43503-MR7-006
|
$17.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
MASTER CYLINDER SUB-ASSY., RR. BRAKE
43510-HP1-016
|
$230.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
MASTER CYLINDER SUB-ASSY., RR. BRAKE
43510-HP1-305
Superseded by 43510-HP1-016
|
$230.64 | ||
|
Unavailable |
|||
|
#9
CUP, MASTER CYLINDER OIL
43511-KS6-702
|
$31.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, RR. BRAKE MASTER CYLINDER
43512-HP1-006
|
$19.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, MASTER CYLINDER
43513-KS6-701
|
$17.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, OIL CUP
43516-HP1-000
|
$31.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MJ6-315
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, OIL HOSE
43525-HP1-600
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD, PUSH
43530-HP1-006
|
$17.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, DIAPHRAGM
45518-GM9-711
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
DIAPHRAGM
45520-GM9-711
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
46182-MEL-D21
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, BRAKE ROD
46503-MBW-E10
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
JOINT, BRAKE ROD
46504-MAL-601
|
$15.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, HOLE
50317-254-000
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X12) (NSHF)
90004-GHB-610
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, SPECIAL (6X22)
90085-KFB-000
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X12)
90103-MCS-G00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (8MM)
94002-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
