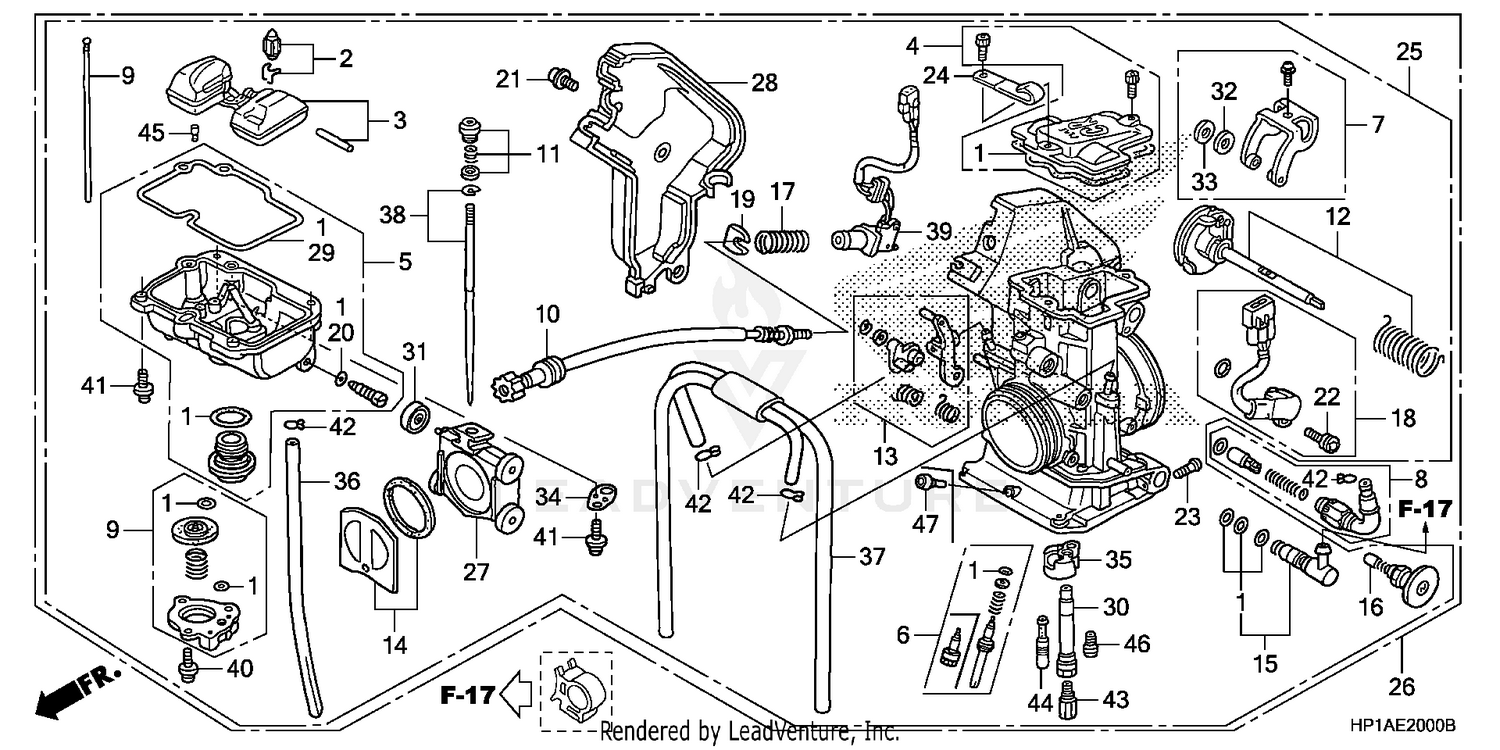

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET (CARBURETOR NO.)
16010-MEN-851
|
$31.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-MEN-851
|
$51.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLOAT SET
16013-HP1-601
|
$51.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
TOP SET
16014-MEY-A11
|
$56.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAMBER SET, FLOAT
16015-HP1-601
|
$154.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET A
16016-HP1-601
|
$27.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM SET, LINK
16018-MEY-A11
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
DIAPHRAGM SET, PUMP
16021-HP1-601
|
$74.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW SET B
16028-HP1-601
|
$51.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW SET, JET NEEDLE
16029-MEY-A11
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, THROTTLE
16032-HP1-A01
|
$93.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE SET, FLOATING
16037-MEB-671
|
$143.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT SET, FUEL
16038-MEB-671
|
$9.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
VALVE, STARTER
16046-HP1-601
|
$60.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, COMPRESSION COIL
16051-HP1-601
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR ASSY., THROTTLE
16060-HP1-601
|
$181.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, SET
16068-HP1-601
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (1.3X4.3) (CARBURETOR NO.)
16076-ND5-004
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, COVER
16080-HP1-601
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, BREAK HEAD
16083-HP0-A01
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN
16083-MEB-671
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
16088-HP1-901
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#25
CARBURETOR ASSY. (FCR10C A)
16100-HP1-A02
|
$1,416.27 | ||
|
Available to order. Add to View Price |
|||
|
#27
VALVE, THROTTLE
16112-HP1-A01
|
$351.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, THROTTLE
16157-HP1-601
|
$34.07 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET, FLOAT CHAMBER
16163-MEB-671
|
$15.93 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER, NEEDLE JET
16165-MEY-A11
|
$18.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
ROLLER
16172-MEB-671
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN (PO)
16177-MEB-671
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN (SUS)
16178-MEB-671
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#34
BINDER
16179-HP1-601
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE, BUFFER
16185-MEN-671
|
$13.65 | ||
|
Available to order. Add to View Price |
|||
|
#36
TUBE, OVERFLOW (CARBURETOR NO.)
16196-MEB-671
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#37
TUBE (AV)
16198-HP1-601
|
$21.87 | ||
|
Available to order. Add to View Price |
|||
|
#38
NEEDLE SET, JET
16203-HP1-901
|
$26.18 | ||
|
Available to order. Add to View Price |
|||
|
#39
SWITCH ASSY., CARBURETOR
35360-HP1-601
|
$65.58 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW-WASHER (4X8)
93892-04008-08
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
SCREW-WASHER (4X8)
93892-04008-18
Superseded by 93892-04008-08
|
$1.20 | ||
|
Unavailable |
|||
|
#41
SCREW-WASHER (4X14)
93892-04014-08
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW-WASHER (4X14)
93892-04014-18
Superseded by 93892-04014-08
|
$1.15 | ||
|
Unavailable |
|||
|
#42
CLIP, TUBE (B17)
95002-02079
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#43
JET, MAIN (#118) JET, MAIN (#120)
99101-357-1180
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#43
JET, MAIN (#122) JET, MAIN (#125)
99101-357-1220
|
$21.80 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, SLOW (#42) JET, SLOW (#45)
99103-440-0420
|
$15.96 | ||
|
Available to order. Add to View Price |
|||
|
#45
JET, LEAK (#58)
99108-HP1-0580
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#46
JET, BY-STARTER (#72)
99112-MEB-0720
|
$14.87 | ||
|
Available to order. Add to View Price |
|||
|
#46
JET, BY-STARTER (#75)
99112-MEB-0750
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
