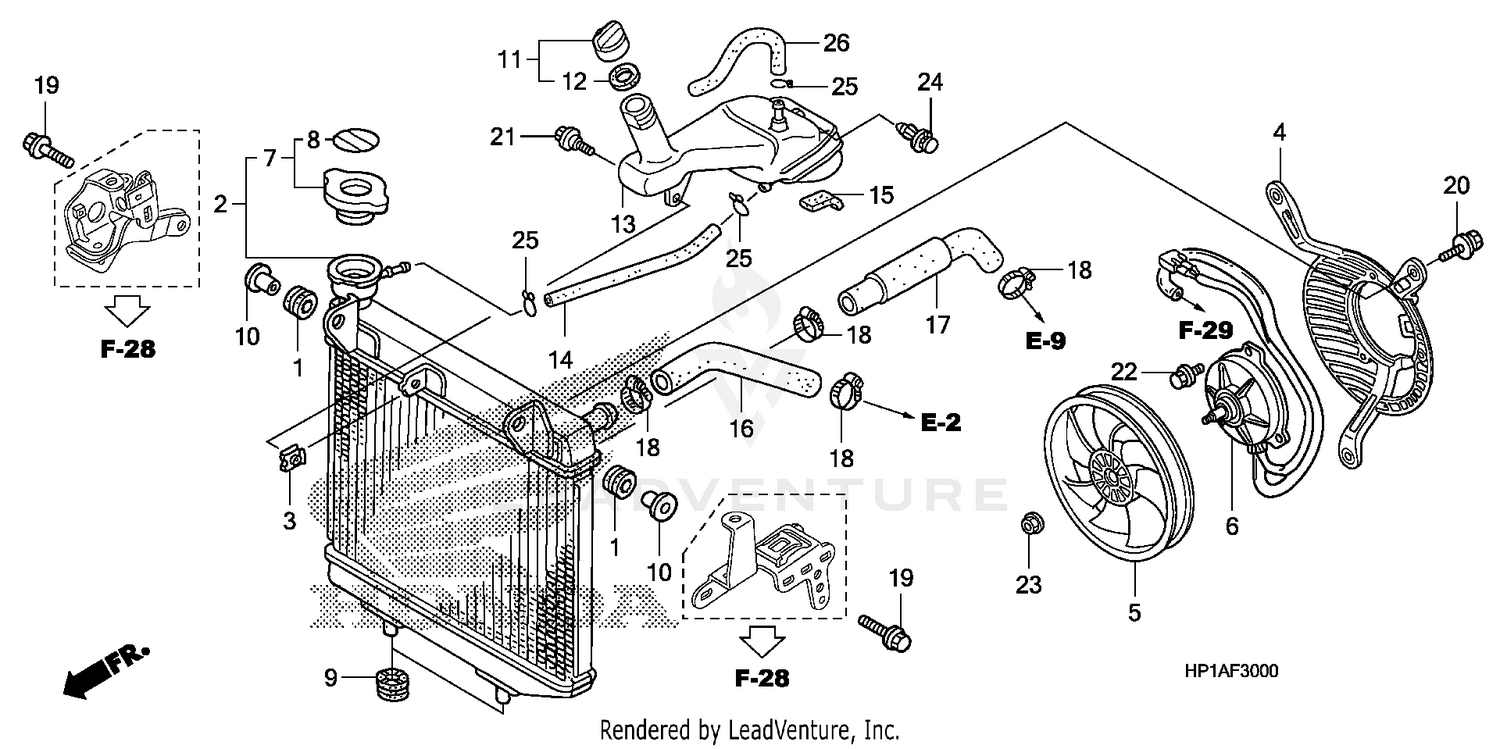

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, CANISTER MOUNT
17419-MEE-770
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR
19010-HP1-601
|
$784.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR
19010-HP1-305
Superseded by 19010-HP1-601
|
$784.35 | ||
|
Unavailable |
|||
|
#3
NUT, SETTING (6MM)
19014-KEA-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, RADIATOR FAN
19015-HP1-900
|
$43.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
FAN, COOLING
19020-MEA-671
|
$52.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOTOR ASSY., FAN
19030-HP1-901
|
$296.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, RADIATOR
19037-GEE-710
|
$36.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, RADIATOR CAP
19046-PAA-A00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, RADIATOR MOUNTING
19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.84 | ||
|
Unavailable |
|||
|
#11
CAP ASSY., RESERVE TANK
19106-GET-000
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, RESERVE TANK
19107-GET-000
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANK, RADIATOR RESERVE
19110-HP1-600
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, RADIATOR RESERVE
19111-HP1-600
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, RADIATOR RESERVE
19121-HP1-900
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, WATER (UPPER)
19501-HP1-600
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, WATER (LOWER)
19502-HP1-600
|
$21.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, HOSE (22-29MM)
19517-ML7-691
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X25) (NSHF)
90004-GHB-670
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT-WASHER (6X15)
90107-HN8-003
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (5X10)
90196-MBB-003
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M)
95005-45001-20M
|
$40.16 | ||
|
Available to order. Add to View Price |
|||
