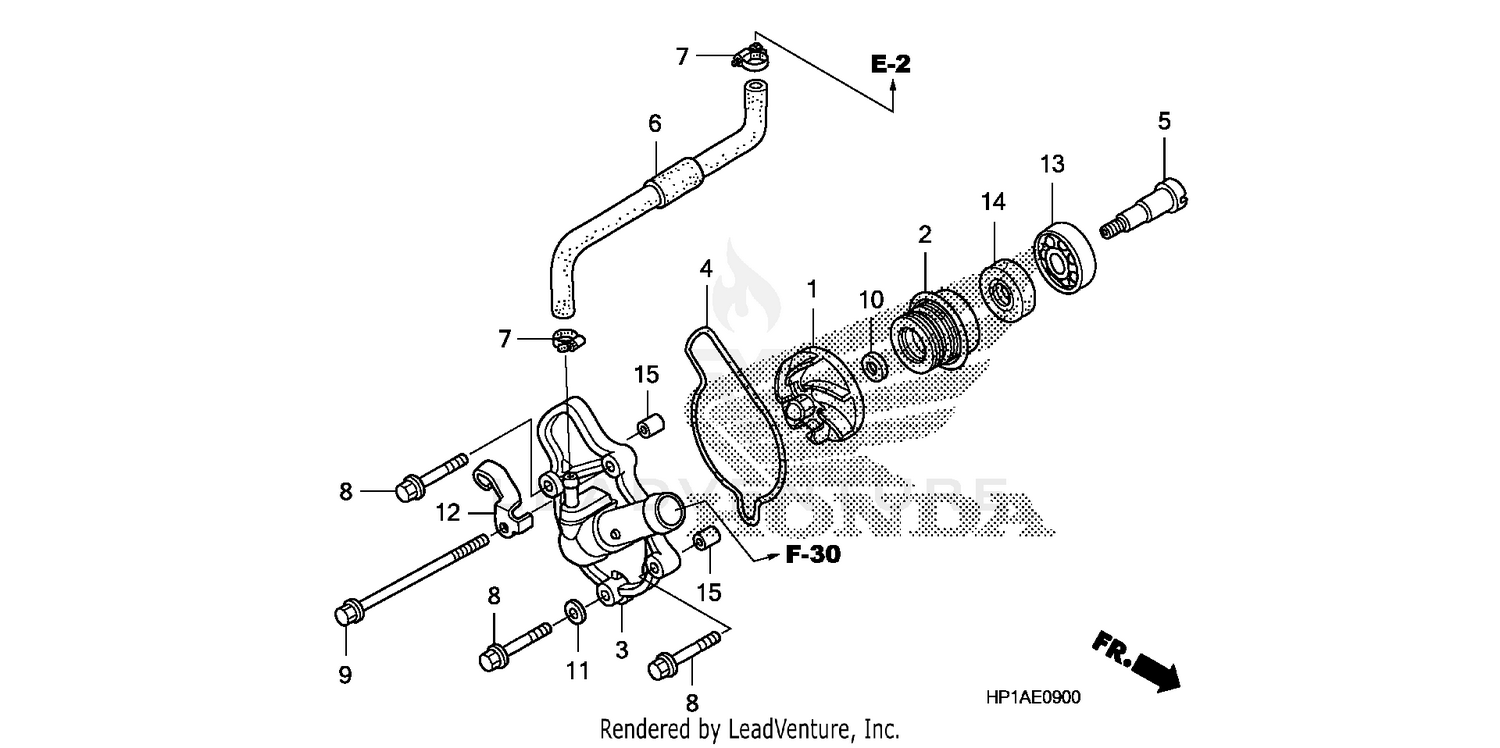

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IMPELLER, WATER PUMP
19215-HP1-670
|
$55.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, MECHANICAL
19217-MAL-300
|
$64.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
COVER, WATER PUMP
19220-HP1-600
|
$98.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, WATER PUMP COVER
19226-MEB-670
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, WATER PUMP
19241-MEY-670
|
$73.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, WATER
19505-HP1-600
|
$20.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, BREATHER HOSE
19507-MK4-620
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X28) (NSHF)
90004-GHB-680
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X80) (NSHF)
90004-GHB-790
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SEALING (7MM)
90447-KE1-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GUIDE, WATER HOSE
90610-HP1-600
|
$13.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (12X28X7) (TOYO)
91001-KA4-003
|
$20.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
OIL SEAL (12X22X5)
91201-148-003
Superseded by 91201-965-000
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
OIL SEAL (12X22X5)
91201-965-000
|
$5.09 | ||
|
Unavailable |
|||
|
#15
PIN, DOWEL (8X7)
91320-KE1-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
