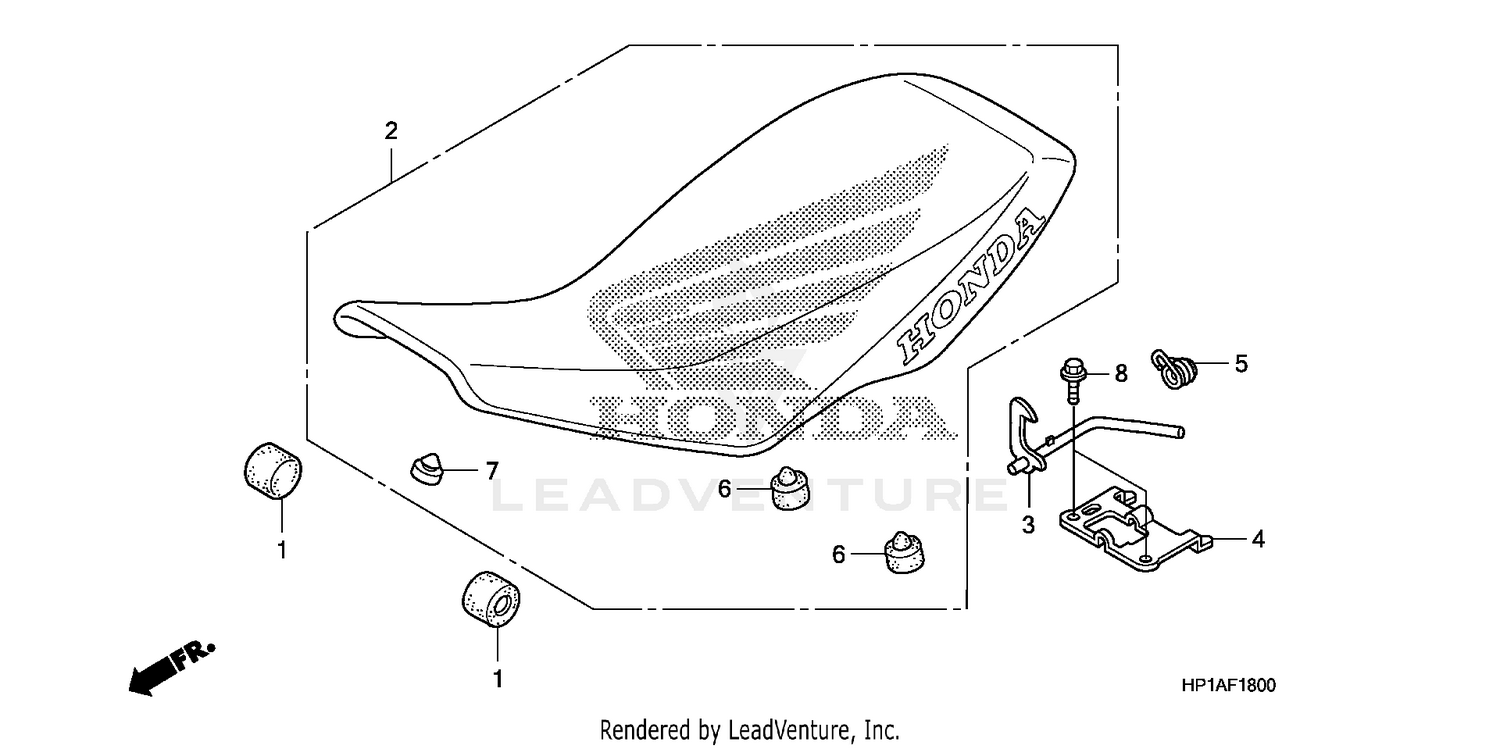

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, FR. FUEL TANK
17611-HP1-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAT (TYPE2)
77100-HP1-B00ZA
|
$484.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER, SEAT LOCK
77105-HP1-A00
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, LOCK LEVER
77108-HP1-600
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, SEAT LOCK
77109-HP1-000
|
$41.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER B, SEAT SETTING
77206-329-000
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER B, SEAT STOPPER
77215-GC2-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X12) (NSHF)
90004-GHB-610
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
