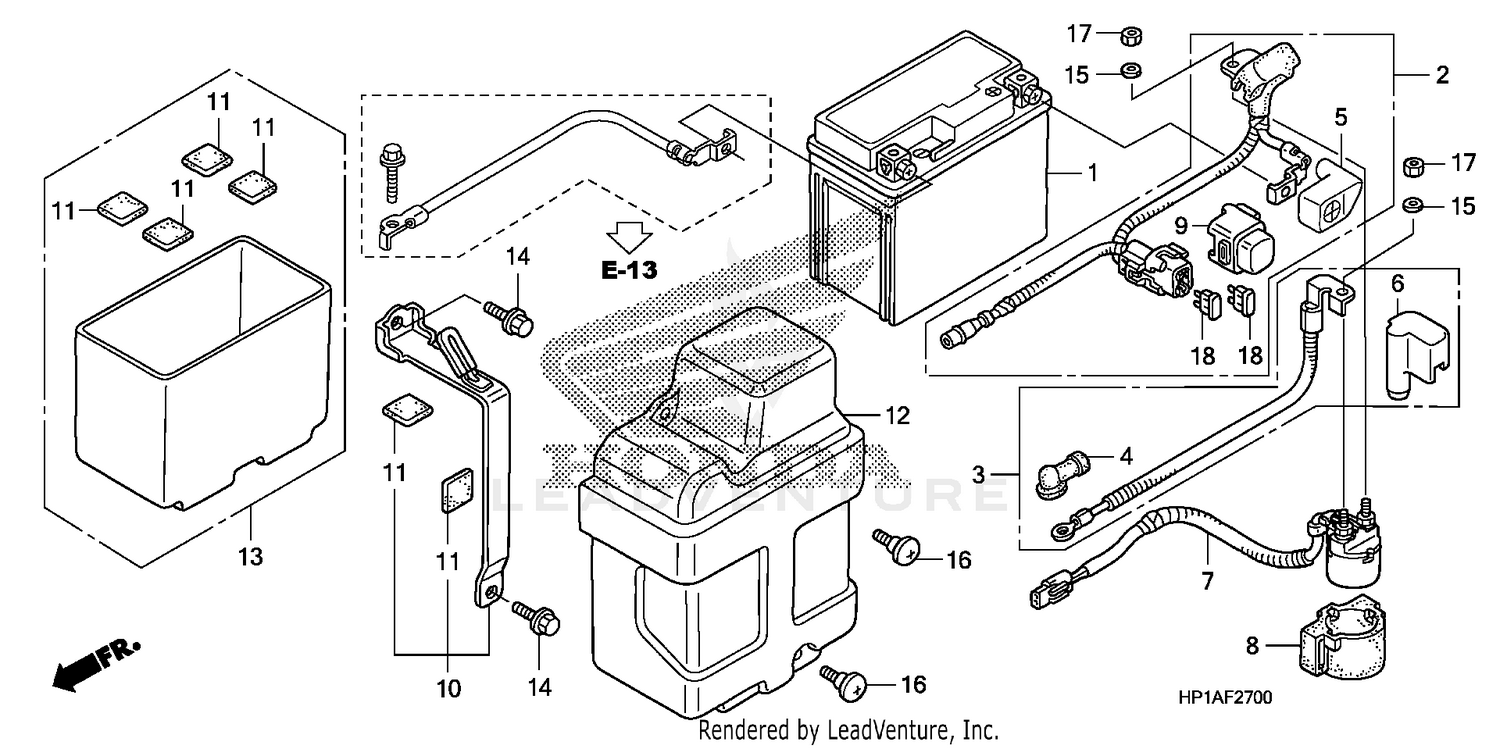

Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY (YTZ7S)
31500-HP1-601
Superseded by 31500-HP1-602
|
$171.72 | ||
|
Available to order. Add to View Price |
|||
|
#1
BATTERY (YTZ7S)
31500-HP1-602
|
$171.72 | ||
|
Unavailable |
|||
|
#2
CABLE, STARTER BATTERY
32401-HP1-601
|
$73.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, STARTER MOTOR
32402-HP1-600
|
$37.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, TERMINAL
32411-473-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, BATTERY TERMINAL
32414-MCF-000
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, MAGNETIC SWITCH TERMINAL
32416-HN8-300
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., STARTER MAGNETIC
35850-HP1-601
|
$101.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, MAGNETIC SHOCK
35856-425-000
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER ASSY., FUSE (15A)
38216-ZV5-003
|
$5.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, BATTERY
50327-HP1-600
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, BATTERY
50328-HP1-600
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, BATTERY
50329-HP1-600
|
$13.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
TRAY, BATTERY
50331-HP1-600
|
$20.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X10) (NSHF)
90004-GHB-600
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, SPRING (6MM) (Honda Code 1310549)
90052-ZA0-800
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, SPECIAL (6X11)
90381-KEJ-C50
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. (6MM)
94002-06390-0S
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUSE, BLADE (15A)
98200-31500
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
