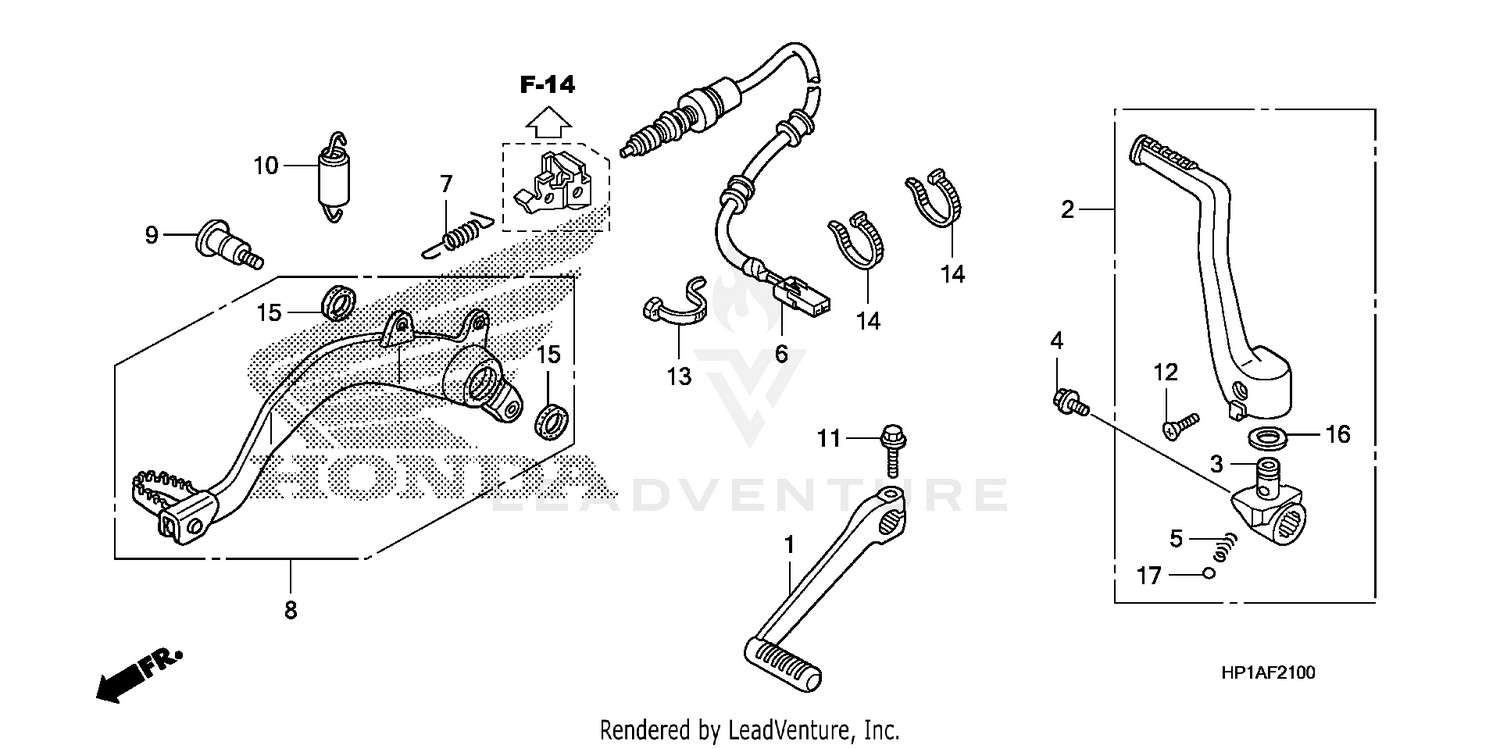

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT (COO)
24700-HP1-600
Superseded by 24700-HP1-305
|
$103.51 | ||
|
Available to order. Add to View Price |
|||
|
#1
PEDAL, GEARSHIFT (COO)
24700-HP1-305
|
$103.51 | ||
|
Unavailable |
|||
|
#6
SWITCH ASSY., RR. STOP
35350-HP1-601
|
$65.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, STOP SWITCH
35357-KR3-670
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
PEDAL, BRAKE
46510-HP1-600
|
$201.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
PEDAL, BRAKE
46510-HP1-305
Superseded by 46510-HP1-600
|
$201.53 | ||
|
Unavailable |
|||
|
#9
SHAFT, BRAKE PIVOT
46513-MBN-670
|
$19.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING ASSY., BRAKE RETURN
46515-MAJ-G40
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X25) (NSHF)
90004-GHB-670
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, WIRE
90650-KW3-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, HOSE
90651-SA5-701
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUST SEAL (15X20X2.5)
91251-444-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
