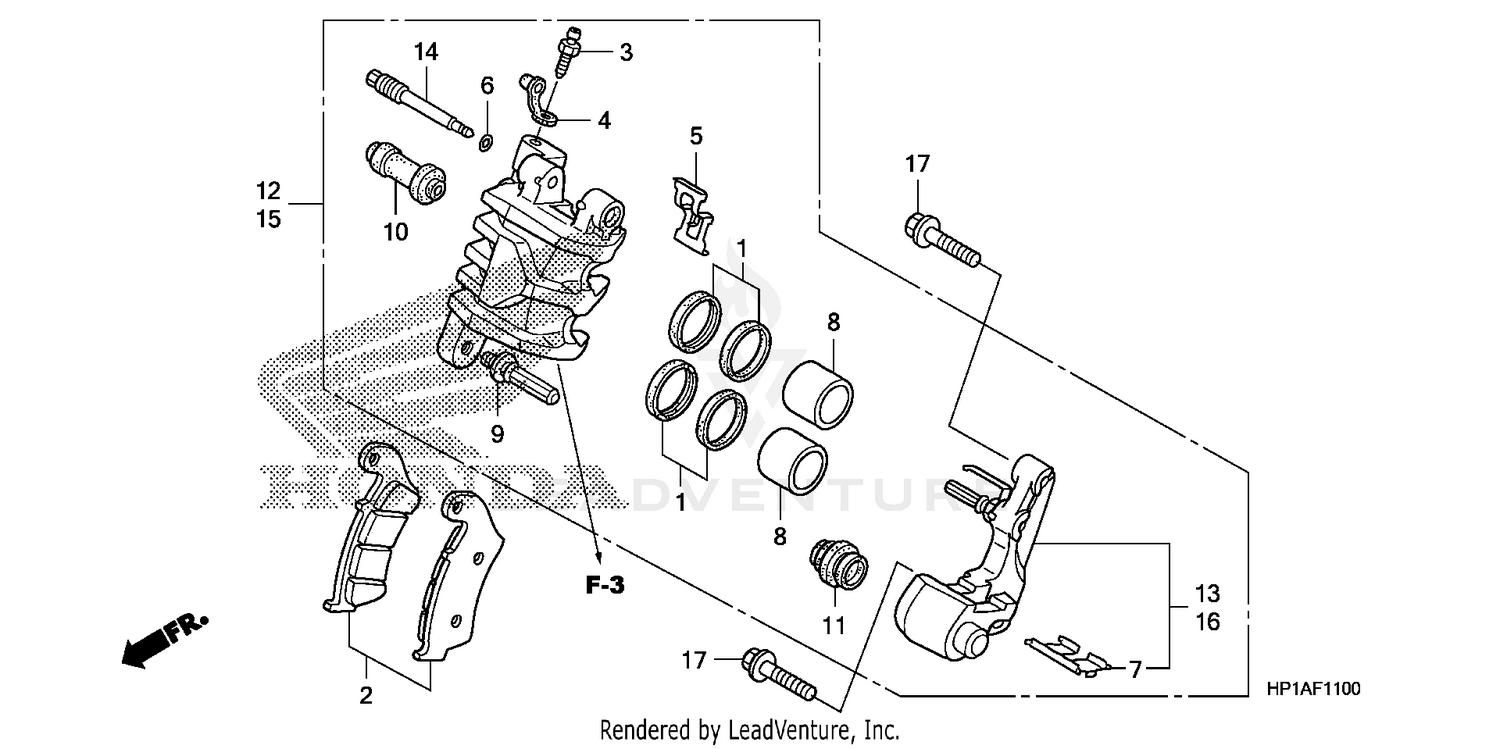

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)
06451-GE2-405
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, FR.
06455-HP1-016
|
$55.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, PAD
45108-MY1-006
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, STOPPER
45111-MAJ-G41
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER
45112-HA5-671
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON A (25X27)
45117-MAJ-G41
|
$34.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT A, BOLT
45131-HA5-672
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT B
45133-MA3-006
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)
45150-HP1-006
|
$261.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET SUB-ASSY., L. FR. CALIPER
45190-HP1-006
|
$54.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, HANGER
45215-HP1-006
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN)
45250-HP1-006
|
$269.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET SUB-ASSY., R. FR. CALIPER
45290-HP1-006
|
$64.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X28)
90102-KV3-700
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
