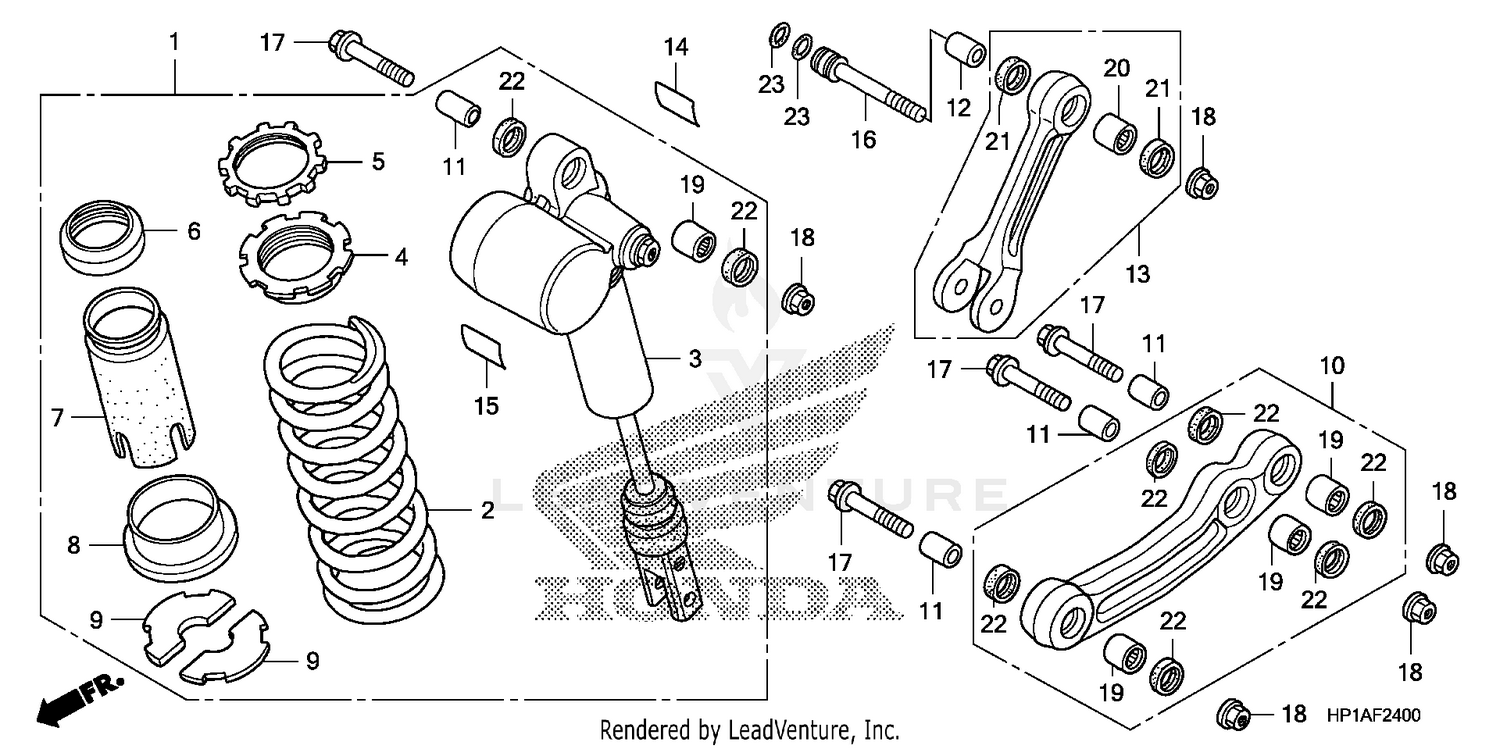

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR. (COO)
52400-HP1-306
|
$1,575.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHOCK ABSORBER
52401-HP1-B31
|
$389.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, RR.
52410-HP1-A01
|
$818.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
ADJUSTER, SPRING
52422-KS7-701
|
$38.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, ADJUSTER
52423-HP1-601
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUST SEAL
52457-ML7-003
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, SPRING
52458-HP1-601
|
$28.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT C, SPRING
52458-MN1-681
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
STOPPER, SPRING SEAT
52459-MN1-681
|
$25.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM SUB-ASSY., CUSHION
52465-HP1-600
|
$265.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR C, CUSHION ARM
52465-MY1-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, CONNECTING ROD
52472-HP1-000
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD SUB-ASSY., CUSHION CONNECTING
52475-HP1-600
|
$263.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
LABEL, RR. DAMPER
87516-MBL-610
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, RR. CUSHION
90104-HP1-000
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SPECIAL FLANGE (10X58)
90153-965-000
|
$8.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SPECIAL FLANGE (10X58)
90153-965-010
Superseded by 90153-965-000
|
$8.64 | ||
|
Unavailable |
|||
|
#18
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, NEEDLE (17X24X17) (KOYO)
91071-MY1-005
|
$23.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (20X26X20)
91072-MY1-005
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUST SEAL (20X26X4.5) (ARAI)
91254-KS6-003
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUST SEAL (20X26X4.5) (ARAI)
91254-KS6-005
Superseded by 91254-KS6-003
|
$11.15 | ||
|
Unavailable |
|||
|
#22
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (13.5X1.5) (ARAI)
91353-671-003
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
