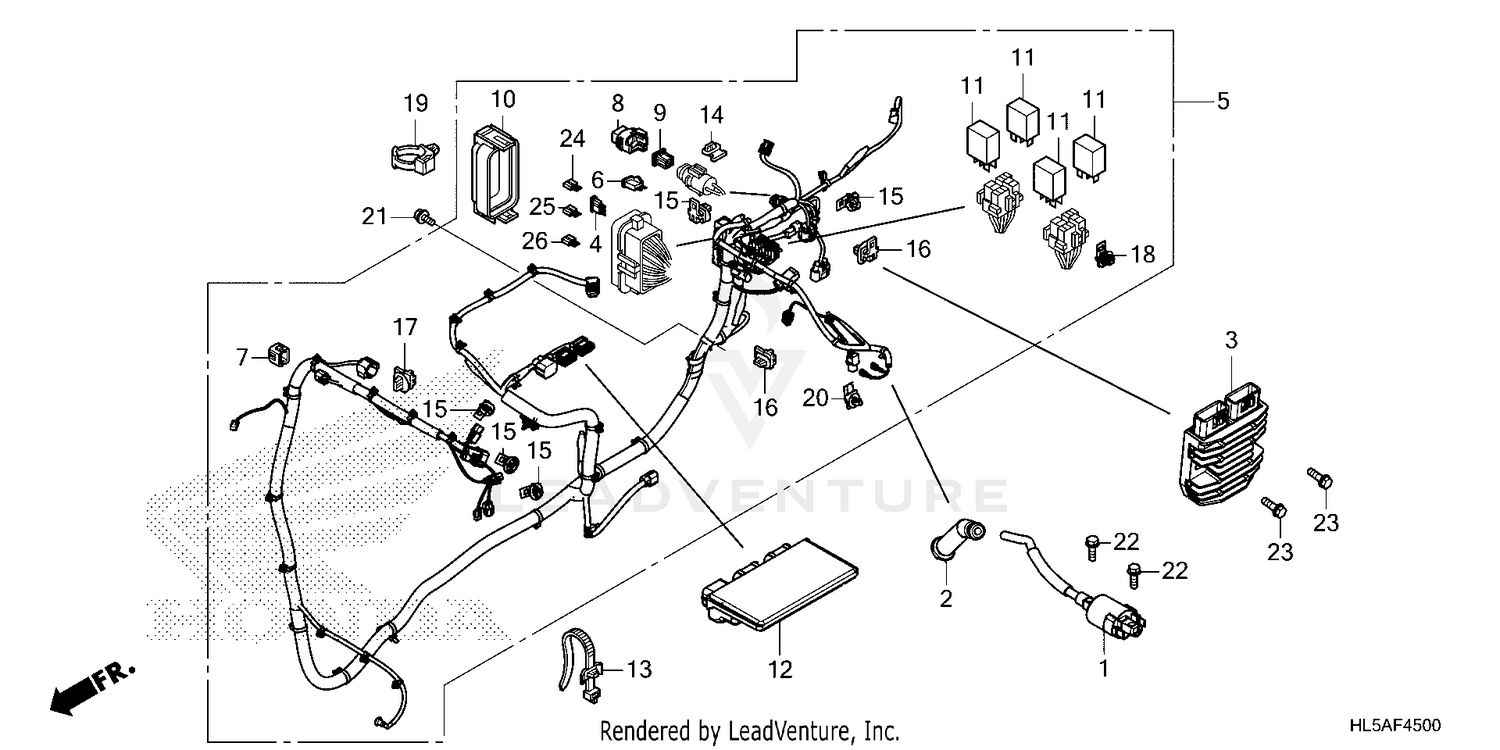

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, IGNITION
30510-HL5-A01
|
$95.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-MBN-671
|
$33.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
RECTIFIER ASSY., REGULATOR
31600-MKN-D51
|
$228.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE HARNESS
32100-HL5-K01
|
$615.93 | ||
|
Unavailable |
|||
|
#6
CONNECTOR, DIODE (2P)
32146-SH3-003
|
$22.28 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, DUMMY (4P) (RED) (Honda Code 7679160)
32606-GEV-761
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER ASSY., FUSE (40A)
38205-HP0-B11
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE, BLOCK (40A)
38211-SNA-A21
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER SET, FUSE
38230-HL5-A00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
RELAY, POWER (MICRO ISO 4P)
38503-MCA-A61
|
$17.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
PGM-FI UNIT
38770-HL5-E62
|
$235.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, WIRE HARNESS (150MM) (NATURAL)
90649-SC2-003
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, CONNECTOR (NATURAL)
91533-S04-003
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, CONNECTOR (DARK BLUE)
91535-STK-003
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, CONNECTOR (BROWN)
91535-TF0-003
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, RELAY HOLDER (NATURAL)
91536-STK-003
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, WIRE HARNESS (BLACK)
91556-SK7-003
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, CONNECTOR
91565-S3Y-003
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#25
FUSE, MINI (15A) (Honda Code 4853438)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
|
#26
FUSE, MINI (30A) (Honda Code 5359666)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
