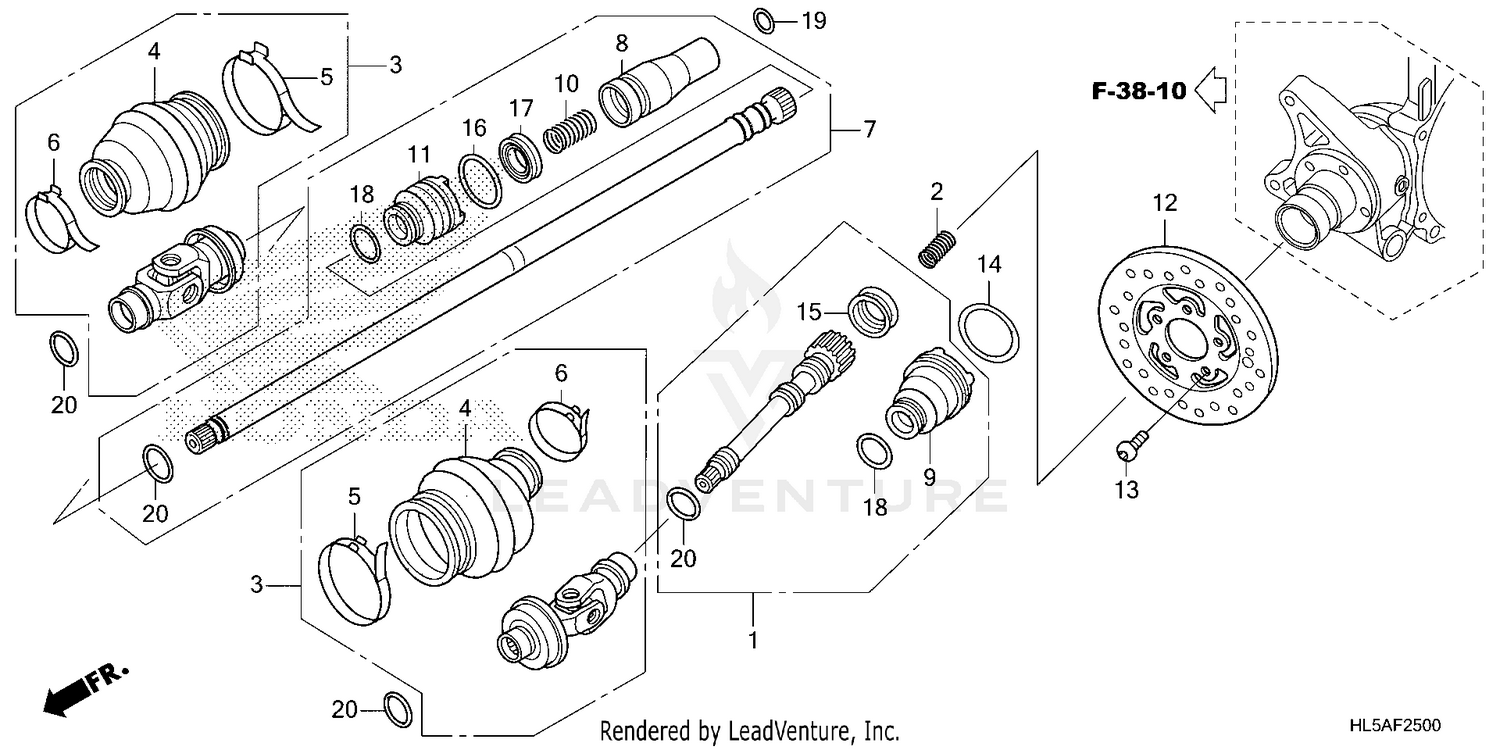

Propeller Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT ASSY., RR. PROPELLER
40200-HL5-A00
|
$66.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHAFT
40215-HL3-A00
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT ASSY., YOKE
40300-HR3-A20
|
$88.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT, YOKE JOINT
40321-HR0-F00
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND A, YOKE JOINT BOOT
40322-HN8-000
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND B, YOKE JOINT BOOT
40323-HN8-000
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT ASSY., FR. PROPELLER
40400-HL5-A00
|
$148.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT, FR. PROPELLER SHAFT
40402-HL5-A00
|
$58.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT A, PROPELLER
40410-HN8-000
|
$35.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, FR. SHAFT
40415-HL1-A00
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT B, PROPELLER
40420-HM7-A00
|
$16.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
DISK, RR. BRAKE
43251-HN8-B01
Superseded by 43251-HR6-MF1
|
$346.11 | ||
|
Unavailable |
|||
|
#12
DISK, RR. BRAKE
43251-HR6-MF1
|
$346.11 | ||
|
Unavailable |
|||
|
#13
BOLT, DISK (6X17)
90105-HN8-000
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, BOOT (D32)
91301-HM7-A00
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL A, RUBBER
91302-HM7-003
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, BOOT (D27)
91302-HM7-A00
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, PROPELLER
91302-HN5-671
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, BOOT (D20)
91303-HM7-A00
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (18.5X2.4) (ARAI)
91311-MB0-003
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (21.8X2.4) (Honda Code 3793031)
91355-759-003
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
