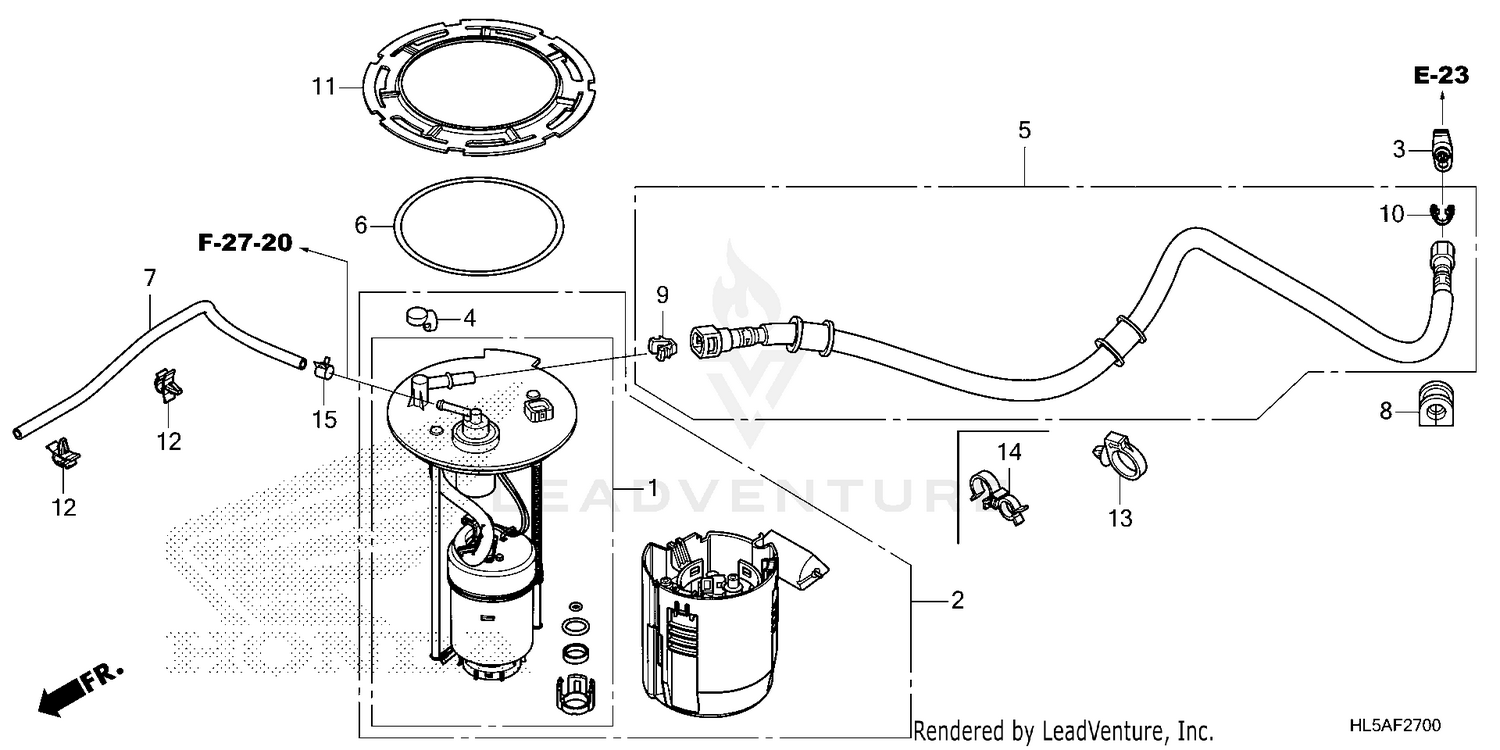

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FILTER SET, FUEL
16010-HL3-A01
|
$80.11 | ||
|
Available to order. Add to View Price |
|||
|
#1
FILTER SET, FUEL
16010-HL5-A00
Superseded by 16010-HL3-A01
|
$80.11 | ||
|
Unavailable |
|||
|
#2
UNIT, FUEL PUMP
16700-HL5-A01
Superseded by 16700-HL5-A02
|
$227.87 | ||
|
Unavailable |
|||
|
#3
DAMPER, CONNECTOR
16718-HR0-F00
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, CONNECTOR (Honda Code 7003056)
16719-HW1-670
|
$27.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE, FUEL FEED
17570-HL5-A41
|
$194.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, FUEL PUMP
17574-HR3-A21
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, FUEL TANK BREATHER
17575-HL5-A40
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, FUEL FEED HOSE
17579-HP5-600
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER (ORANGE) (TOKAI) (Honda Code 5928296)
17711-S0X-003
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER (GREEN) (TOKAI)
17711-S0X-A31
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING, FUEL PUMP LOCKING
17719-HR3-A21
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP, WIRE HARNESS
32171-GJ1-003
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP, HARNESS
90652-HC4-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, TUBE (D10)
95002-41000-08
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
