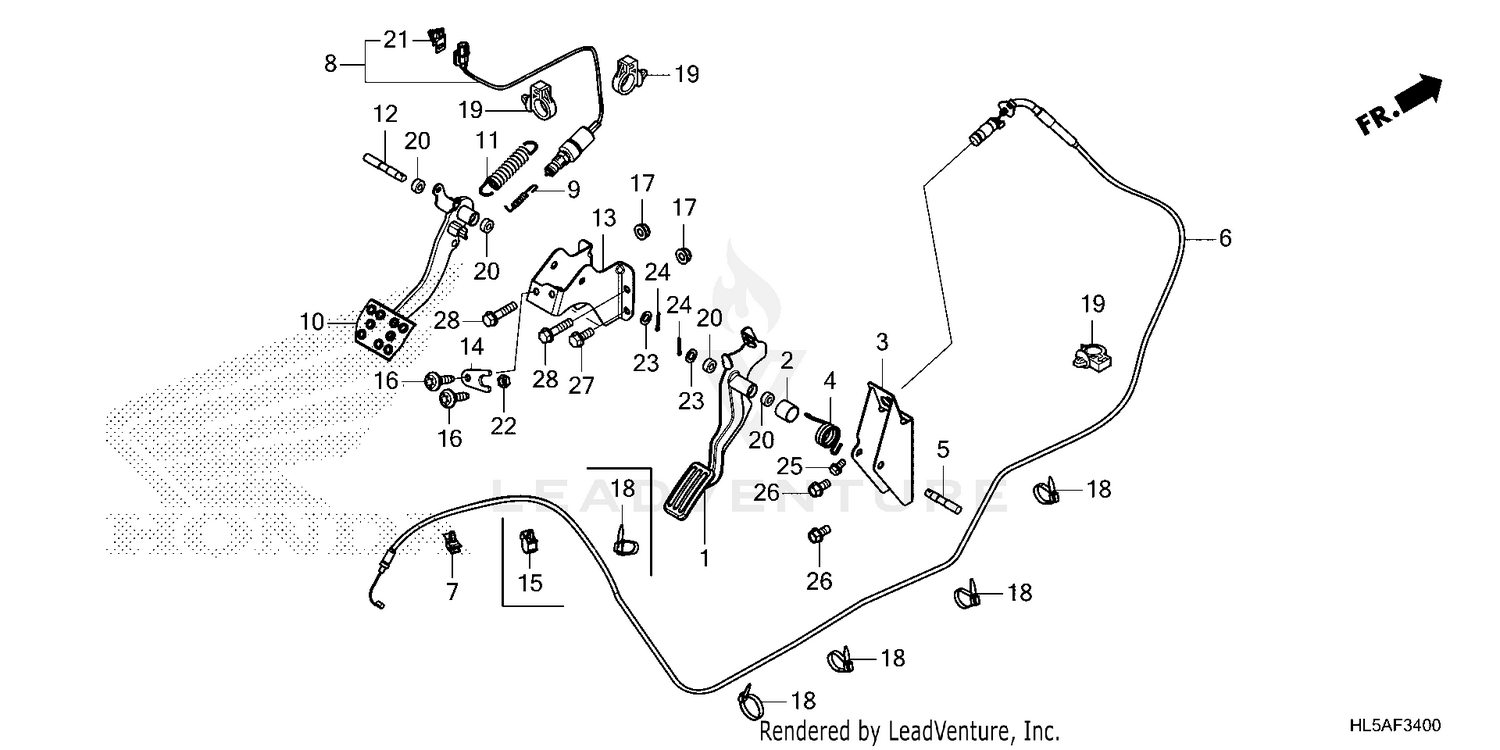

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, ACCELERATOR
17810-HL5-A00
|
$24.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, ACCELERATOR PEDAL
17811-HL1-A00
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, ACCELERATOR PEDAL
17820-HL5-E60
|
$19.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, ACCELERATOR PEDAL
17830-HL5-A00
|
$16.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, ACCELERATOR PIVOT
17840-HL3-A00
|
$15.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, THROTTLE
17910-HL5-E61
|
$67.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, WIRE HARNESS
32171-GJ1-003
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH ASSY., STOP
35350-HL3-A01
|
$62.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, STOP SWITCH
35357-KR3-670
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
PEDAL, BRAKE
46510-HL5-A00
|
$37.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, BRAKE PEDAL
46514-HL1-A00
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, BRAKE PIVOT
46550-HL3-A00
|
$22.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, BRAKE PEDAL
46560-HL5-A00
|
$34.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, ADJUSTER NUT
46561-HL1-A00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE TORX (8X30)
90106-SJC-000
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#18
BAND, WIRE HARNESS
90651-MA6-720
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP, HARNESS
90652-HC4-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (10X16X4.5)
91206-333-003
Superseded by 91259-VM0-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (10X16X4.5)
91259-VM0-000
|
$5.29 | ||
|
Unavailable |
|||
|
#21
CLIP, CONNECTOR
91565-S3Y-003
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT,HEX 8MM
94002-08080-0S
Superseded by 94002-080000S
|
$1.37 | ||
|
Unavailable |
|||
|
#23
WASHER, PLAIN (10MM)
94102-10800
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, SPLIT (3.0X18)
94201-30180
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X16)
95701-08016-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X20)
95701-08020-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X40)
95701-08040-00
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
