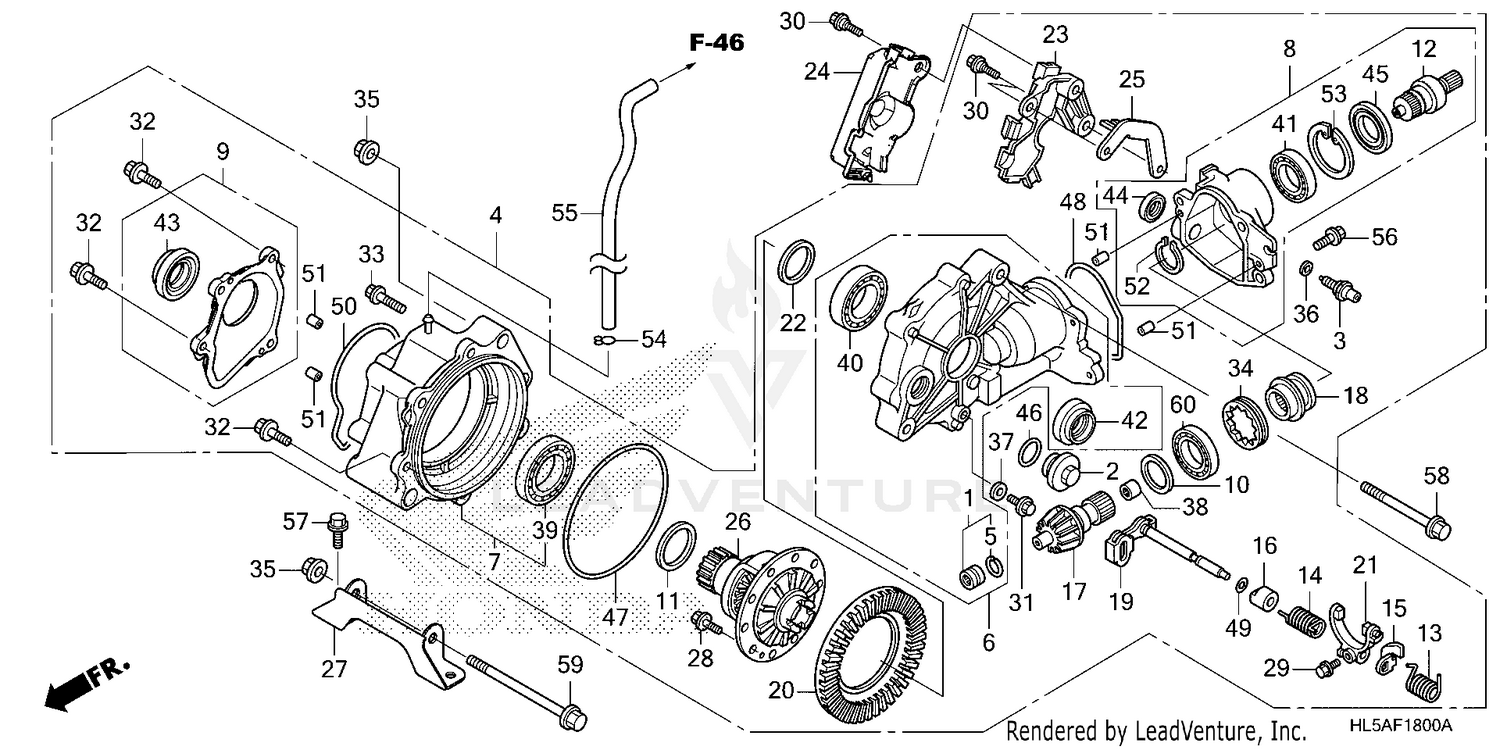

Front Final Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING SET, NEEDLE
06910-HL5-E60
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH ASSY., NEUTRAL
35600-HN7-003
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR ASSY., FR. FINAL
41400-HL5-E60
|
$1,418.45 | ||
|
Unavailable |
|||
|
#5
RING, STOPPER
41405-HA7-670
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE SUB-ASSY., FR. FINAL GEAR
41411-HL5-E60
|
$124.25 | ||
|
Unavailable |
|||
|
#7
COVER SUB-ASSY., FR. FINAL GEAR
41412-HL3-600
|
$177.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE SUB-ASSY., FR. CLUTCH
41413-HL5-A40
|
$114.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER SUB-ASSY., R. FR. FINAL GEAR
41414-HL5-A00
|
$73.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM A, PINION GEAR (1.64)
41447-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM B, PINION GEAR (1.70)
41448-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM C, PINION GEAR (1.76)
41449-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM D, PINION GEAR (1.82)
41451-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM E, PINION GEAR (1.88)
41452-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM F, PINION GEAR (1.94)
41453-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM G, PINION GEAR (2.00)
41454-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM H, PINION GEAR (2.06)
41455-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM I, PINION GEAR (2.12)
41456-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM J, PINION GEAR (2.18)
41457-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM K, PINION GEAR (2.24)
41458-HN0-670
|
|||
|
Unavailable |
|||
|
#10
SHIM L, PINION GEAR (2.30)
41459-HN0-670
|
|||
|
Unavailable |
|||
|
#10
SHIM M, PINION GEAR (2.36)
41461-HN0-670
|
|||
|
Unavailable |
|||
|
#10
SHIM N, PINION GEAR (2.42)
41462-HN0-670
|
$4.58 | ||
|
Unavailable |
|||
|
#10
SHIM O, PINION GEAR (2.48)
41463-HN0-670
|
|||
|
Unavailable |
|||
|
#11
SHIM A, RING GEAR (0.64)
41450-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM B, RING GEAR (0.70)
41451-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM C, RING GEAR (0.76)
41452-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM D, RING GEAR (0.82)
41453-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM E, RING GEAR (0.88)
41454-HL1-A00
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM F, RING GEAR (0.94)
41455-HL1-A00
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM G, RING GEAR (1.00)
41456-HL1-A00
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM H, RING GEAR (1.06)
41457-HL1-A00
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM I, RING GEAR (1.12)
41458-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM J, RING GEAR (1.18)
41459-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM K, RING GEAR (1.24)
41460-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM L, RING GEAR (1.30)
41461-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM M, RING GEAR (1.36)
41462-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM N, RING GEAR (1.42)
41463-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM O, RING GEAR (1.48)
41464-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, FR. FINAL CLUTCH
41502-HL5-A40
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, FR. FINAL CLUTCH
41503-HP5-600
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, FR. FINAL CLUTCH LOCK
41504-HP5-600
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, FR. FINAL CLUTCH
41505-HP5-600
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, FR. FINAL CLUTCH
41506-HL1-A00
|
$27.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, FR. PINION (13T)
41521-HL5-A00
|
$276.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
SLEEVE, FR. FINAL CLUTCH
41527-HP5-600
|
$46.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT, FR. FINAL CLUTCH
41530-HL1-A00
|
$56.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, FR. RING (53T)
41531-HL5-A00
|
$137.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
FORK, FR. FINAL CLUTCH
41550-HP5-600
|
$88.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM A, RING GEAR (0.64)
41580-HL1-A00
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM B, RING GEAR (0.70)
41581-HL1-A00
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM C, RING GEAR (0.76)
41582-HL1-A00
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM D, RING GEAR (0.82)
41583-HL1-A00
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM E, RING GEAR (0.88)
41584-HL1-A00
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM F, RING GEAR (0.94)
41585-HL1-A00
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM G, RING GEAR (1.00)
41586-HL1-A00
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM H, RING GEAR (1.06)
41587-HL1-A00
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM I, RING GEAR (1.12)
41588-HL1-A00
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM J, RING GEAR (1.18)
41589-HL1-A00
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM K, RING GEAR (1.24)
41590-HL1-A00
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM L, RING GEAR (1.30)
41591-HL1-A00
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM M, RING GEAR (1.36)
41592-HL1-A00
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM N, RING GEAR (1.42)
41593-HL1-A00
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM O, RING GEAR (1.48)
41594-HL1-A00
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM P, RING GEAR (1.54)
41595-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM Q, RING GEAR (1.60)
41596-HL1-A00
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
CASE, CLUTCH ARM
41711-HL1-A00
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, CLUTCH ARM
41712-HL1-A00
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY, CLUTCH CABLE
41715-HL1-A00
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#26
CASE, FR. DIFFERENTIAL
42420-HL1-A00
|
$330.78 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET, FR. FINAL CASE
50350-HL5-A00
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, UBS (8X17)
90101-HN2-680
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, SPECIAL (6MM)
90101-HP5-600
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FR. FENDER FIXING
90106-MM9-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X27)
90133-HP5-600
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (10X35)
90134-HP5-600
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, LOCK (64MM)
90242-MB0-000
|
$39.40 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SELF-LOCK (12MM)
90305-HC4-000
|
$5.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
WASHER, NEUTRAL SWITCH
90443-KR0-000
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BEARING, NEEDLE (12X18X12)
91056-HP5-601
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING, RADIAL BALL (6009)
91057-HL3-601
|
$11.89 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING, RADIAL BALL (6008)
91057-HL4-A01
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING, RADIAL BALL (60/32)
91059-HL4-A01
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#42
OIL SEAL (35X56X8)
91252-HL1-A01
|
$13.55 | ||
|
Available to order. Add to View Price |
|||
|
#43
OIL SEAL (40X61X8)
91252-HL5-A01
|
$16.25 | ||
|
Available to order. Add to View Price |
|||
|
#44
OIL SEAL (22X30X5)
91253-HL1-A01
|
$7.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
OIL SEAL (42X58X12)
91254-HR3-A21
|
$9.33 | ||
|
Available to order. Add to View Price |
|||
|
#46
O-RING (30.8MM) (Honda Code 0001065)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
O-RING (156.5X1.9)
91351-HL1-A01
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#48
GASKET, FR. FINAL CLUTCH COVER
91351-HP5-601
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#49
O-RING (8.5X1.5) (L. SIDE ONLY)
91352-GAZ-930
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#50
GASKET, R. SIDE COVER
91355-HL1-A01
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#51
PIN A, DOWEL (6X10) (YAMADA)
94301-06100
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
CIRCLIP (OUTER) (32MM)
94510-32000
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#53
CIRCLIP (INNER) (58MM)
94520-58000
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#54
CLIP, TUBE (C6.5)
95002-35000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#55
BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M)
95005-35001-30M
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, FLANGE (8X25)
95701-08025-00
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, FLANGE (10X20) BOLT, FLANGE (10X16)
95701-10020-00
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#58
BOLT, FLANGE (12X110)
95801-12110-08
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#59
BOLT, FLANGE (12X150)
95801-12150-00
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#60
BEARING, RADIAL BALL (6206)
96100-62060-00
|
$17.71 | ||
|
Available to order. Add to View Price |
|||
