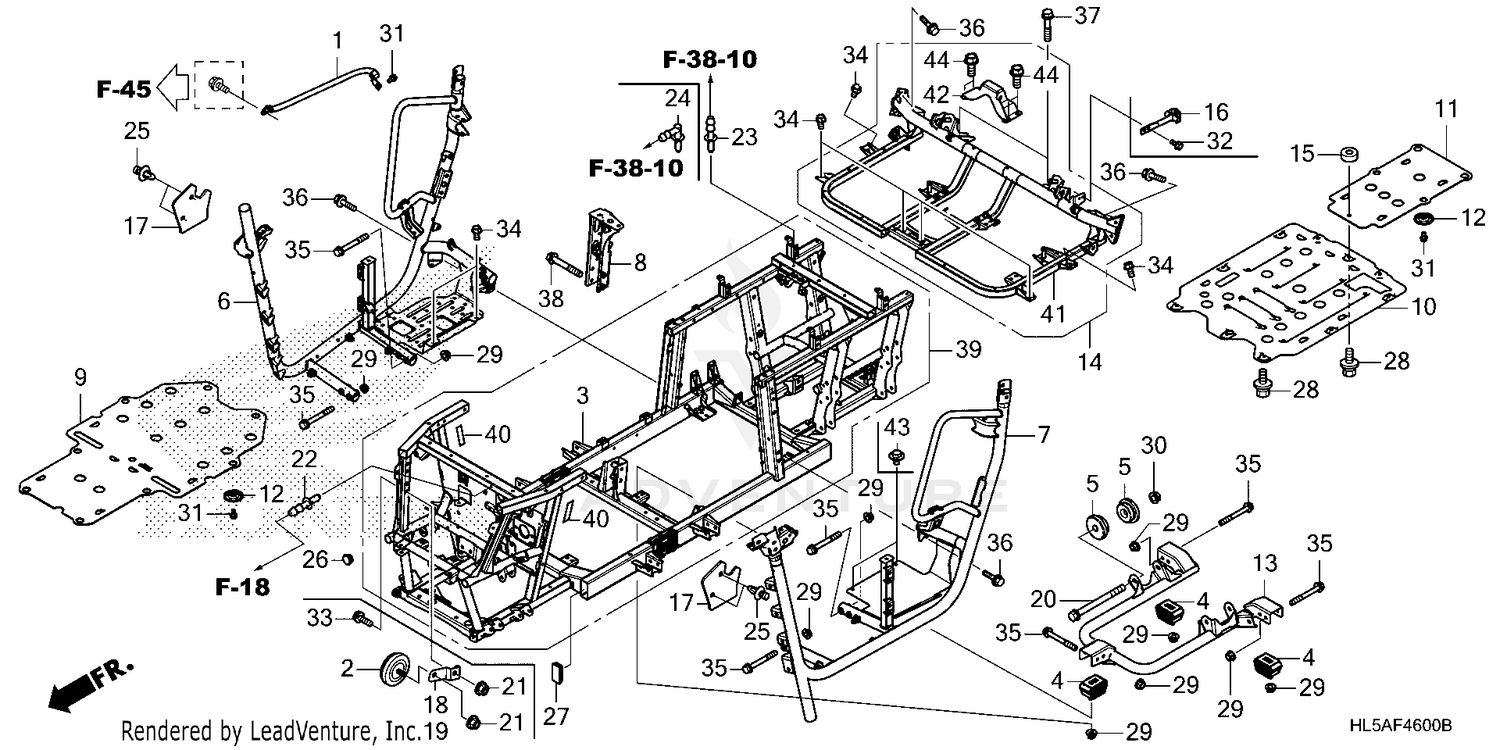

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, FRAME GROUND
32603-HL3-A00
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
FRAME COMP
50100-HL5-K00
|
$1,316.95 | ||
|
Unavailable |
|||
|
#4
RUBBER, ENGINE MOUNTING
50301-HL5-A01
|
$30.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, ENGINE MOUNTING
50304-HL5-A00
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE COMP, R STEP
50310-HL5-K00
|
$506.15 | ||
|
Unavailable |
|||
|
#7
PIPE COMP, L STEP
50320-HL5-K00
|
$457.05 | ||
|
Unavailable |
|||
|
#8
BRACKET, PARKING
50330-HL5-A00
|
$49.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, FR. SKID
50400-HL5-A00
|
$90.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, MIDDLE SKID
50401-HL5-A41
|
$144.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, RR. SKID
50402-HL5-A00
|
$28.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SKID PLATE
50403-HL3-A00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
FRAME, ENGINE
50500-HL5-E60
|
$82.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
FRAME, SEAT
50600-HL5-E60
|
$497.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, STEP RUBBER SETTING
50605-GZ4-670
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, BED LATCH
50650-HL5-E60
|
$34.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, LATCH PROTECTOR
61180-HL5-A40
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, ALTERNATOR
90057-671-000
|
$25.17 | ||
|
Available to order. Add to View Price |
|||
|
#22
JOINT, BREATHER TUBE
90652-HF7-003
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
JOINT, BREATHER TUBE
90652-HL5-E61
|
$7.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CAP, PIPE END (1-1/4")
90860-HL5-A00
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP, PIPE END
90883-HL3-A00
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT-WASHER (6X12)
93404-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#28
BOLT-WASHER (6X12)
93404-06012-08
Superseded by 93404-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#28
BOLT-WASHER (6X12)
93414-06012-08
Superseded by 93404-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#29
NUT, FLANGE (8MM) NUT, FLANGE (10MM)
94050-08000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BOLT, FLANGE (8X16)
95701-08016-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (8X65)
95701-08065-00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (10X20) BOLT, FLANGE (10X16)
95701-10020-00
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (10X50)
95701-10050-00
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (10X65)
95701-10065-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
