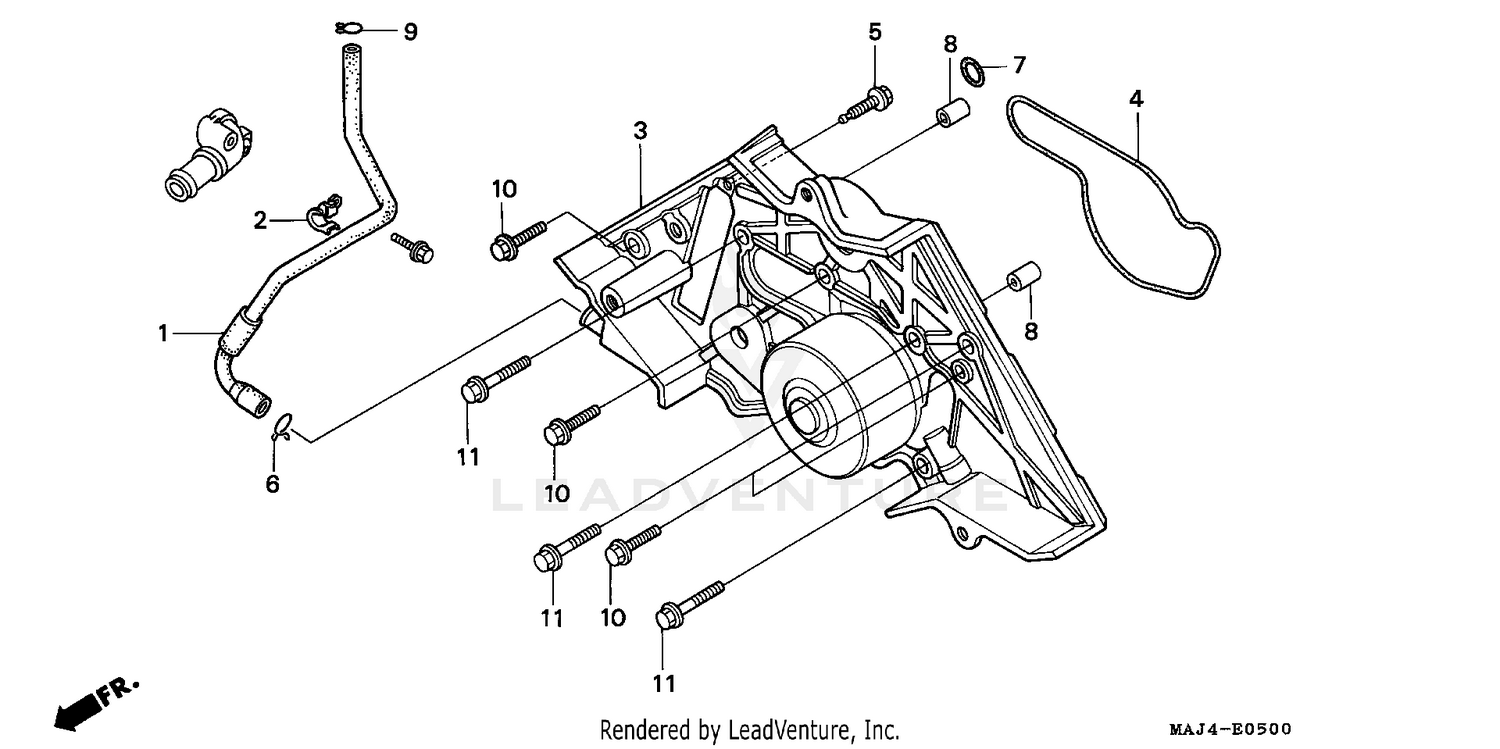

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, BREATHER
11150-MY3-010
|
$19.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, BREATHER HOSE
11159-MY3-000
|
$14.19 | ||
|
Unavailable |
|||
|
#3
WATER PUMP
19200-MY3-000
Superseded by 19200-MY3-010
|
$438.60 | ||
|
Unavailable |
|||
|
#4
O-RING, WATER PUMP
19226-MT3-000
|
$13.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, TIMING BELT ADJUST SPRING
90010-MT3-000
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, AIR HOSE (16MM)
90646-657-000
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING (15.8X2.5) (ARAI)
91301-MC7-003
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING (15.8X2.5) (ARAI)
91305-MN5-003
Superseded by 91301-MC7-003
|
$5.16 | ||
|
Unavailable |
|||
|
#8
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP, TUBE (B12.5)
95002-02130
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X30)
95701-06030-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
