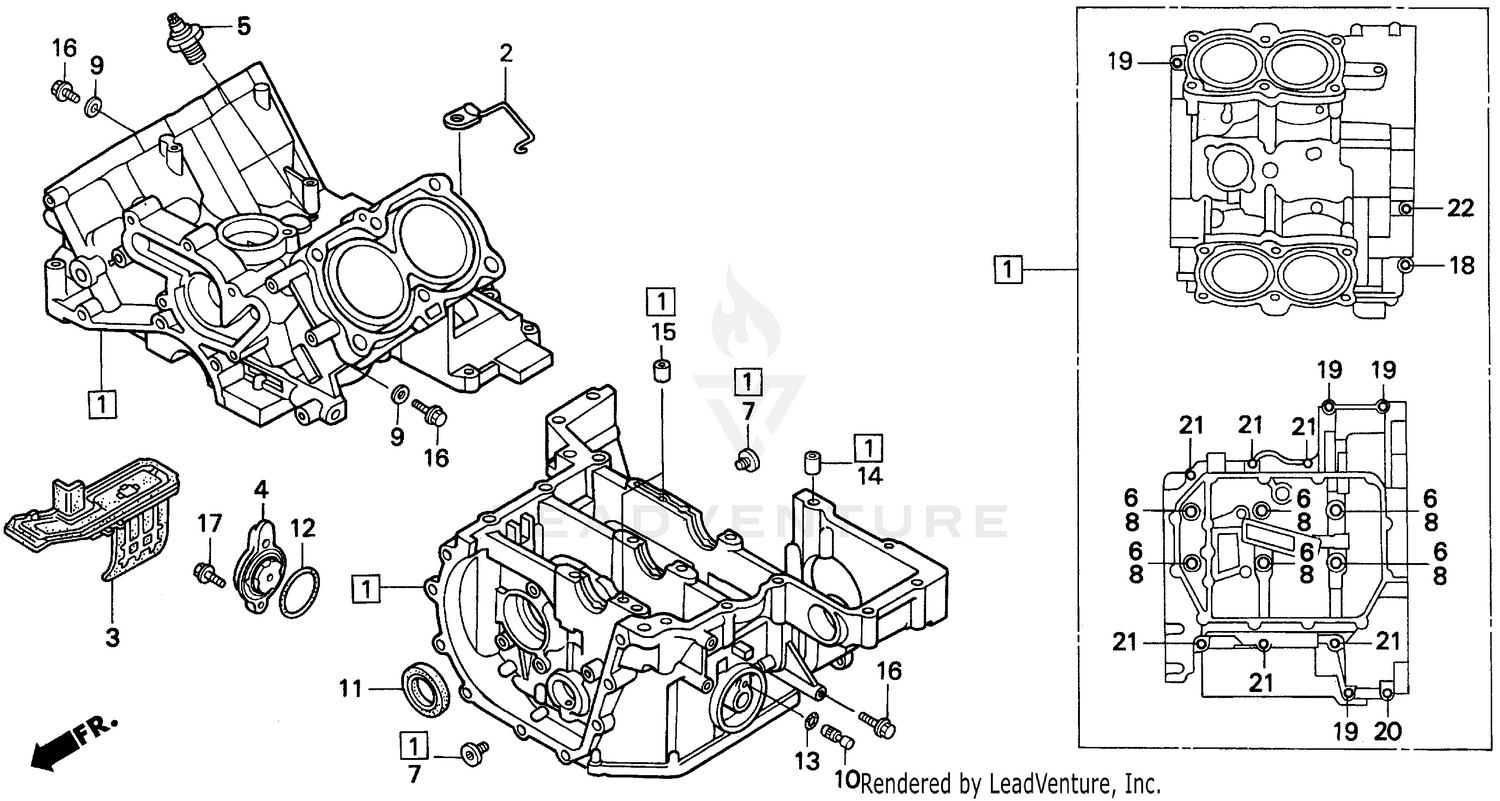

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11000-MY3-020
Superseded by 11000-MAJ-G20
|
$2,982.29 | ||
|
Unavailable |
|||
|
#2
CLAMP, TUBE
11120-MT3-000
|
$10.24 | ||
|
Unavailable |
|||
|
#3
PLATE, OIL SEPARATE
11140-MY3-000
|
$92.27 | ||
|
Unavailable |
|||
|
#4
FINDER, OIL LEVEL
15660-MT3-000
|
$49.89 | ||
|
Unavailable |
|||
|
#5
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-024
|
$51.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (10X97) (NOT AVAILABLE)
90001-MT3-003
|
$10.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, SPECIAL (10MM)
90042-MM5-000
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (10MM)
90441-MT3-000
|
$11.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
ORIFICE (1.2)
90802-MT3-000
Superseded by 90802-MT3-010
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
ORIFICE (1.2) (NOT AVAILABLE)
90802-MT3-010
|
$5.66 | ||
|
Unavailable |
|||
|
#11
OIL SEAL (35X52X8)
91201-ZE3-004
|
$10.94 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (45X2.5) (ARAI)
91301-679-003
|
$6.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI)
91313-MA6-003
Superseded by 91313-MA6-005
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI)
91313-MA6-005
|
$2.98 | ||
|
Unavailable |
|||
|
#14
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN B, DOWEL (10X16)
94302-10160
|
$2.02 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X50) (Honda Code 2410975)
95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X70)
95701-06070-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X60)
95701-08060-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X65)
95701-08065-00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
