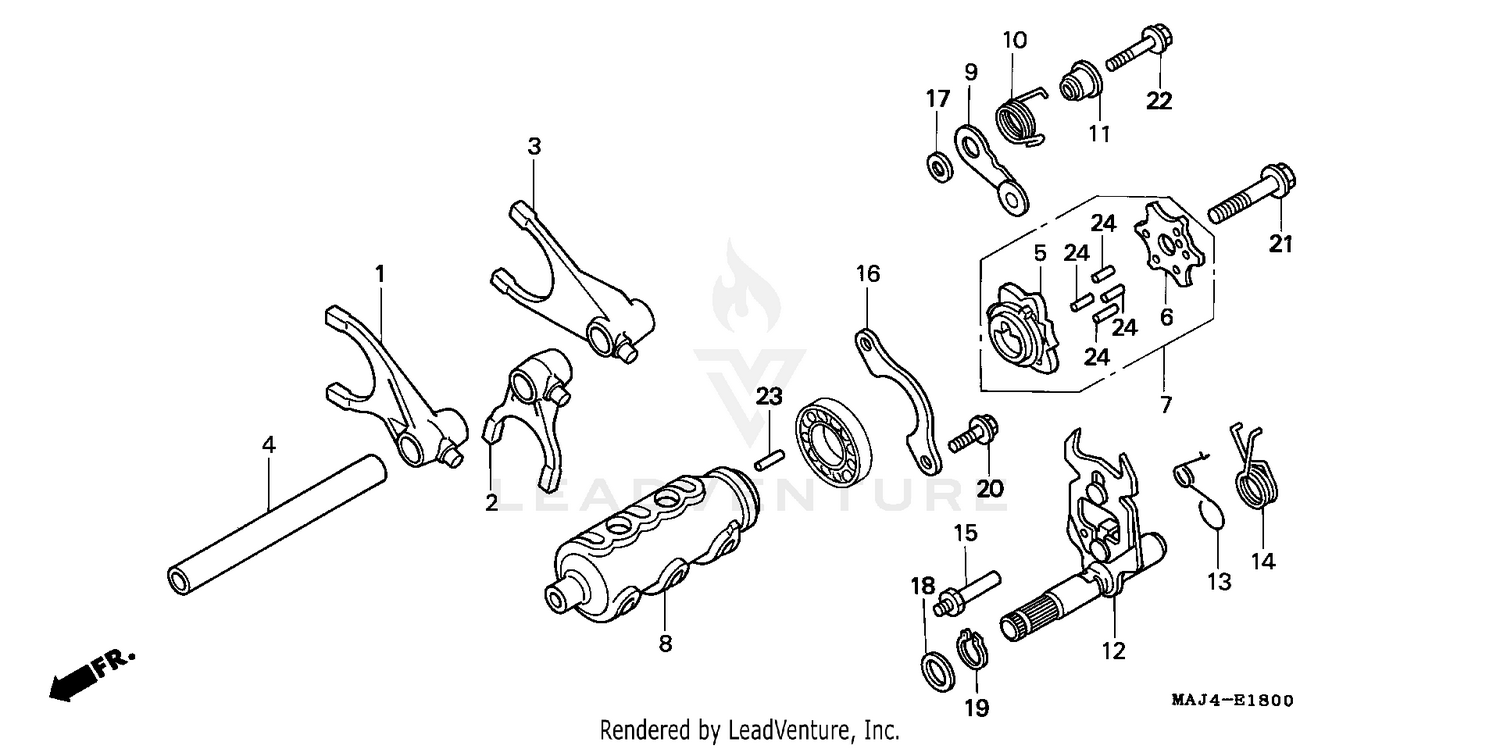

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, FR. GEARSHIFT
24211-MT3-000
|
$91.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, CENTER GEARSHIFT
24212-MT3-000
|
$86.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWINGARM, GEARSHIFT
24213-MT3-000
|
$91.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, GEARSHIFT FORK
24261-MT3-000
|
$29.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
CENTER, GEARSHIFT DRUM
24302-MA6-010
|
$29.75 | ||
|
Unavailable |
|||
|
#6
PLATE, DRUM CENTER
24303-MA6-010
|
$12.58 | ||
|
Unavailable |
|||
|
#7
GEARSHIFT ASSY.
24310-MT3-000
|
$57.49 | ||
|
Unavailable |
|||
|
#8
DRUM, GEARSHIFT
24311-MT3-010
|
$171.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
STOPPER, GEARSHIFT DRUM
24430-MT3-000
|
$23.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, SHIFT DRUM STOPPER
24435-MT3-670
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, SHIFT DRUM STOPPER
24438-MT3-000
|
$11.52 | ||
|
Unavailable |
|||
|
#12
SPINDLE, GEARSHIFT
24610-MY3-000
|
$108.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, GEARSHIFT RESET
24624-MT3-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, GEARSHIFT RETURN
24651-107-000
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, SHIFT RETURN SPRING
24652-259-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, SHIFT DRUM BEARING SETTING
24655-MT3-000
|
$11.60 | ||
|
Unavailable |
|||
|
#17
WASHER, DRUM STOPPER
90417-360-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (14.2MM)
90451-115-000
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP (OUTER) (14MM)
94510-14000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X40)
95701-08040-00
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X30)
95801-06030-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
ROLLER (4X13) (NOT AVAILABLE)
96220-40130
|
$0.33 | ||
|
Unavailable |
|||
|
#24
ROLLER (4X14.8)
96220-40148
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
