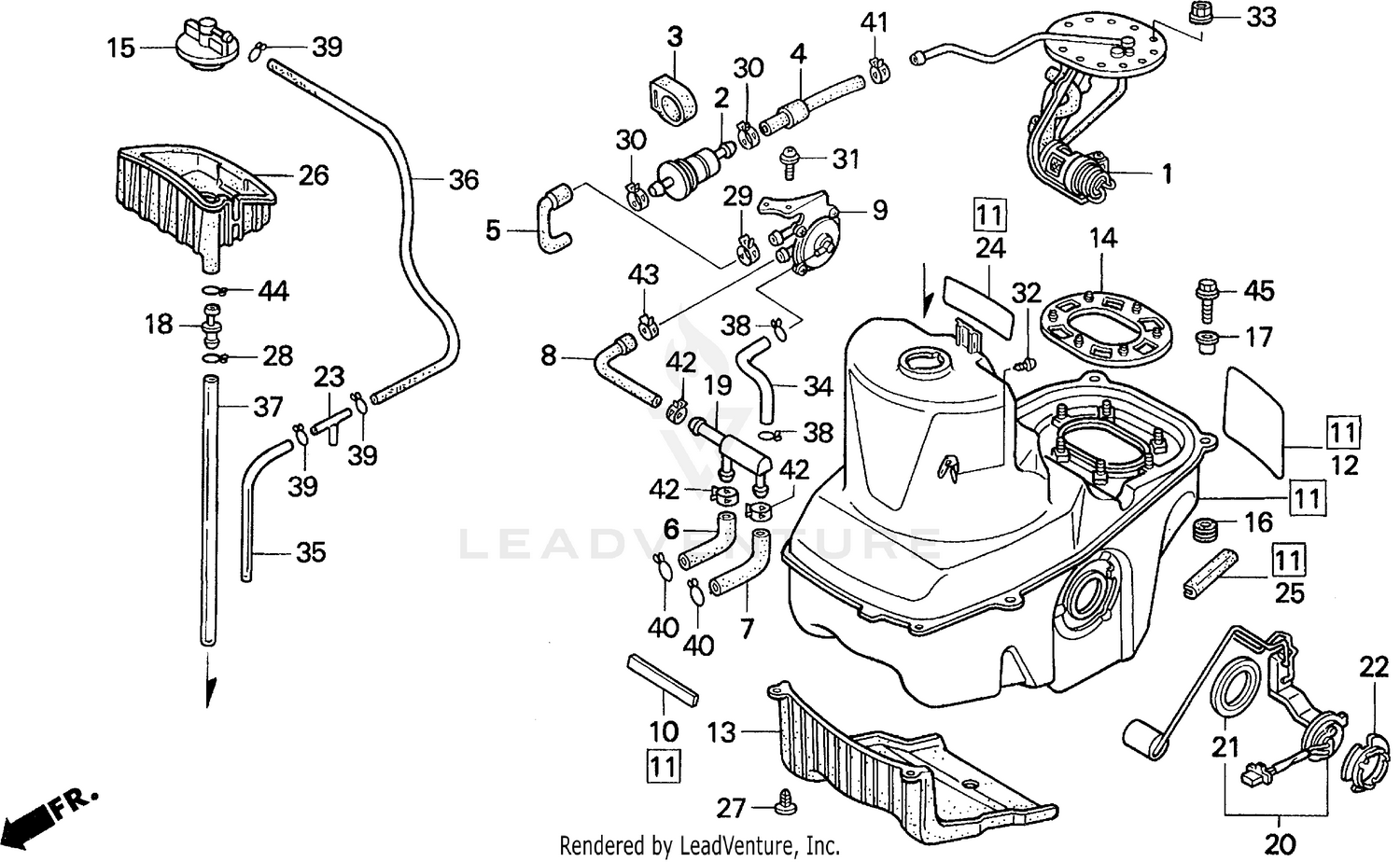

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., FUEL (MSDS)
16700-MT3-010
|
$865.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILTER, FUEL
16900-MG8-003
|
$28.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
CUSHION, FUEL STRAINER
16905-MG7-000
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE B, FUEL
16954-MT3-000
|
$18.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE C, FUEL
16955-MT3-000
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, R. FUEL
16956-MT3-000
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, L. FUEL
16957-MT3-000
|
$8.83 | ||
|
Unavailable |
|||
|
#8
TUBE D, FUEL
16958-MT3-000
|
$16.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
PETCOCK ASSY., AUTO
16970-MT3-000
Superseded by 16970-MT3-013
|
$289.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
PETCOCK ASSY., AUTO
16970-MT3-003
Superseded by 16970-MT3-013
|
$289.76 | ||
|
Unavailable |
|||
|
#9
PETCOCK ASSY., AUTO
16970-MT3-013
|
$289.76 | ||
|
Unavailable |
|||
|
#10
CUSHION, BATTERY TRAY (A)
17509-MN5-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK, FUEL
17510-MY3-000
Superseded by 17510-MY3-010
|
$534.57 | ||
|
Unavailable |
|||
|
#12
TAPE, FUEL TANK PROTECTOR
17539-MT3-300
Superseded by 17539-MT3-310
|
$15.68 | ||
|
Unavailable |
|||
|
#13
PROTECTOR, FUEL TANK HEAT
17570-MT3-000
|
$98.57 | ||
|
Unavailable |
|||
|
#14
GASKET, BASE
17574-MN5-000
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, FUEL FILLER
17670-MT3-003
|
$162.74 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, RADIATOR MOUNTING
19051-KA4-000
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, RADIATOR MOUNTING
19052-MB0-000
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT, TUBE
19102-KT8-000
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT (THREE-WAY) (D)
19525-MT8-000
|
$12.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUEL UNIT
37800-MY3-781
|
$88.16 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, BASE
37801-689-000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
RETAINER, FUEL UNIT
37802-SD2-000
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
RETAINER, FUEL UNIT
37802-689-000
Superseded by 37802-SD2-000
|
$7.95 | ||
|
Unavailable |
|||
|
#23
JOINT (THREE-WAY)
38773-PB9-000
Superseded by 36010-PA6-004
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
TAPE, PROTECTOR
81229-MR5-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER, PROTECTOR
83171-MT3-300
|
$4.75 | ||
|
Unavailable |
|||
|
#26
TRAY, FUEL TANK
83502-MT3-000
|
$78.87 | ||
|
Unavailable |
|||
|
#27
CLIP (Honda Code 3488079)
90651-MT3-000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CLAMP, TUBE (12.5MM) (B)
90661-GHB-610
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, FUEL HOSE
90678-MN5-000
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP, CANISTER HOSE
90682-SA0-671
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW-WASHER (5X16)
93891-05016-07
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
SCREW, TAPPING (4X6)
93901-24020
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#34
BULK HOSE, FUEL (3.5X3000) (95001-3500(95001-35001-60M)
95001-35003-60M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#35
BULK HOSE, FUEL (4.5X3000) (95001-4500(95001-45001-60M)
95001-45003-60M
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#36
BULK HOSE, FUEL (4.5X3000) (95001-4500(95001-45001-60M)
95001-45003-60M
|
$44.43 | ||
|
Unavailable |
|||
|
#37
BULK HOSE, FUEL (7.5X8000) (7.3X350) (BULK HOSE: 95001-75008-40M)
95001-75008-60M
|
$125.78 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP, TUBE (B7) CLIP, TUBE (B6.5)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
CLIP, TUBE (B8) CLIP, TUBE (B7)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
CLIP, TUBE (B12.5)
95002-02130
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP, TUBE (D12)
95002-41200-04
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLAMP, TUBE (D12)
95002-41200-08
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP, TUBE (D13)
95002-41300-08
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLIP, TUBE (C12)
95002-80000
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
