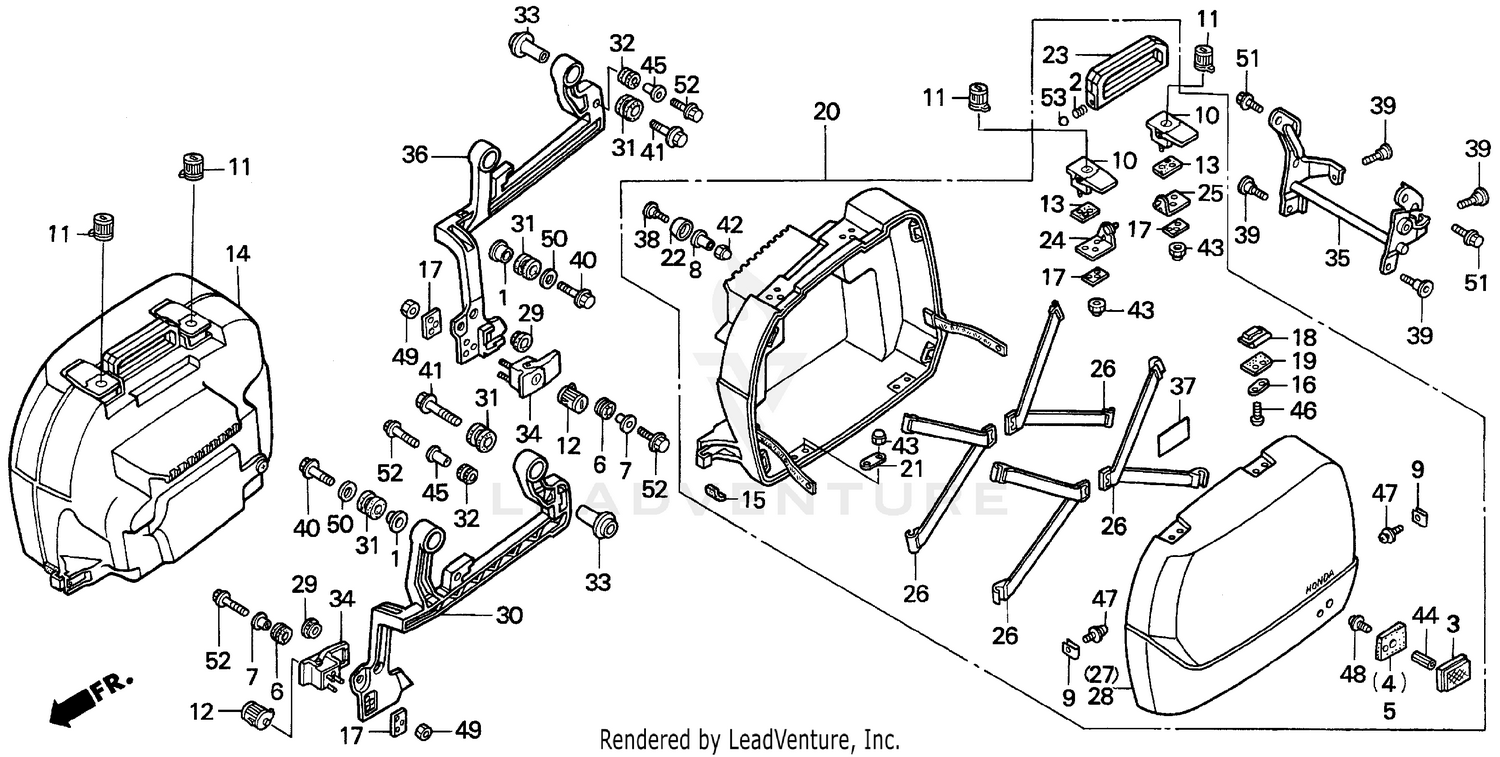

Saddlebag Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, MUFFLER MOUNTING
18422-MA6-000
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, CLUTCH SUB-FREE (AS)
22431-121-880
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
REFLECTOR, RR. REFLEX
33742-MB2-672
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, R. BAG REFLECTOR
33746-MT3-670
|
$31.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, L. BAG REFLECTOR
33747-MT3-670
|
$28.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, OIL CUP MOUNTING
43516-HA2-000
|
$5.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COLLAR (6.3X13)
50324-425-010
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, FR. FENDER
61105-MA3-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CLIP (4MM)
64521-KY6-000
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
LOCK ASSY. A, BAG
81170-MT3-003
|
$118.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
CYLINDER ASSY. A, BAG LOCK (INCLUDES 2 KEYS)
81171-MT3-003
|
$41.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
CYLINDER ASSY., BAG LOCK (B)
81172-MT3-003
|
$39.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, LOCK
81175-MT3-003
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
SADDLEBAG ASSY., R. (TYPE19) (WL) (SOURCE: VINTAGE PARTS INC.)
81200-MAJ-A00ZA
|
$1,364.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, PROTECTOR (L. SIDE ONLY)
81214-MT3-300
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, HOOK SETTING
81222-MG9-770
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, LOCK SETTING
81223-MG9-770
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOOK, LOCK
81223-MT3-000
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
RUBBER, HOOK
81224-MT3-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
SADDLEBAG ASSY., L. (TYPE19) (WL) (NOT AVAILABLE)
81300-MAJ-A00ZA
|
$1,334.81 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, HINGE SETTING
81318-MT3-000
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
CUSHION, SADDLEBAG
81327-MT3-000
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
GRIP, SADDLEBAG *NH285* (GUSTO GRAY)
81335-MT3-000ZA
|
$29.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
HINGE, GRIP (A)
81336-MT3-000
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#25
HINGE, GRIP (B)
81337-MT3-000
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND, SADDLEBAG
81343-MT3-000
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, R. SADDLEBAG (TYPE19) (WL) (SOURCE: VINTAGE PARTS INC.)
81450-MAJ-A00ZA
|
$568.83 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, L. SADDLEBAG (TYPE19) (WL) (NOT AVAILABLE)
81550-MAJ-A00ZA
|
$556.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
GROMMET, SIDE COVER
83551-MA6-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
STAY, R. SADDLEBAG
84250-MT3-000
|
$158.37 | ||
|
Available to order. Add to View Price |
|||
|
#31
RUBBER, BAG MOUNTING
84252-MT3-000
|
$4.51 | ||
|
Unavailable |
|||
|
#32
RUBBER
84253-MT3-000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
84254-MT3-000
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
|
#34
LOCK ASSY. B, BAG
84260-MT3-003
|
$105.25 | ||
|
Available to order. Add to View Price |
|||
|
#35
STOPPER, SADDLEBAG STAY
84300-MT3-000
|
$84.73 | ||
|
Available to order. Add to View Price |
|||
|
#36
STAY, L. SADDLEBAG
84350-MT3-000
|
$209.15 | ||
|
Available to order. Add to View Price |
|||
|
#37
LABEL, CARGO LIMIT (9.0KG)
87520-MZ3-300
Superseded by 87520-MZ3-310
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#37
LABEL, CARGO LIMIT (9.0KG)
87520-MZ3-310
|
$3.53 | ||
|
Unavailable |
|||
|
#38
SCREW, PANEL (INNER)
90105-MN5-000
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, PAN (6X20)
90112-MT3-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (8X44)
90154-KZ3-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (8X50)
90155-KZ3-000
|
$8.11 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, CAP (L. SIDE ONLY)
90201-428-900
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, MOLDING SIDE
90305-SJ4-003
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, SPECIAL
90337-MT3-670
|
$12.05 | ||
|
Available to order. Add to View Price |
|||
|
#45
COLLAR (6.3X14.5)
90503-KAE-000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW, PAN (4X14)
93500-04014-0G
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#47
SCREW-WASHER (4X12)
93894-04012-07
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#48
SCREW-WASHER (5X12)
93894-05012-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT, HEX. (4MM) (NOT AVAILABLE)
94002-04080-0S
|
$0.53 | ||
|
Unavailable |
|||
|
#50
WASHER, PLAIN (8MM)
94103-08000
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)
95701-06025-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#53
BALL, STEEL (#7) (7/32)
96211-07000
|
$1.34 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
