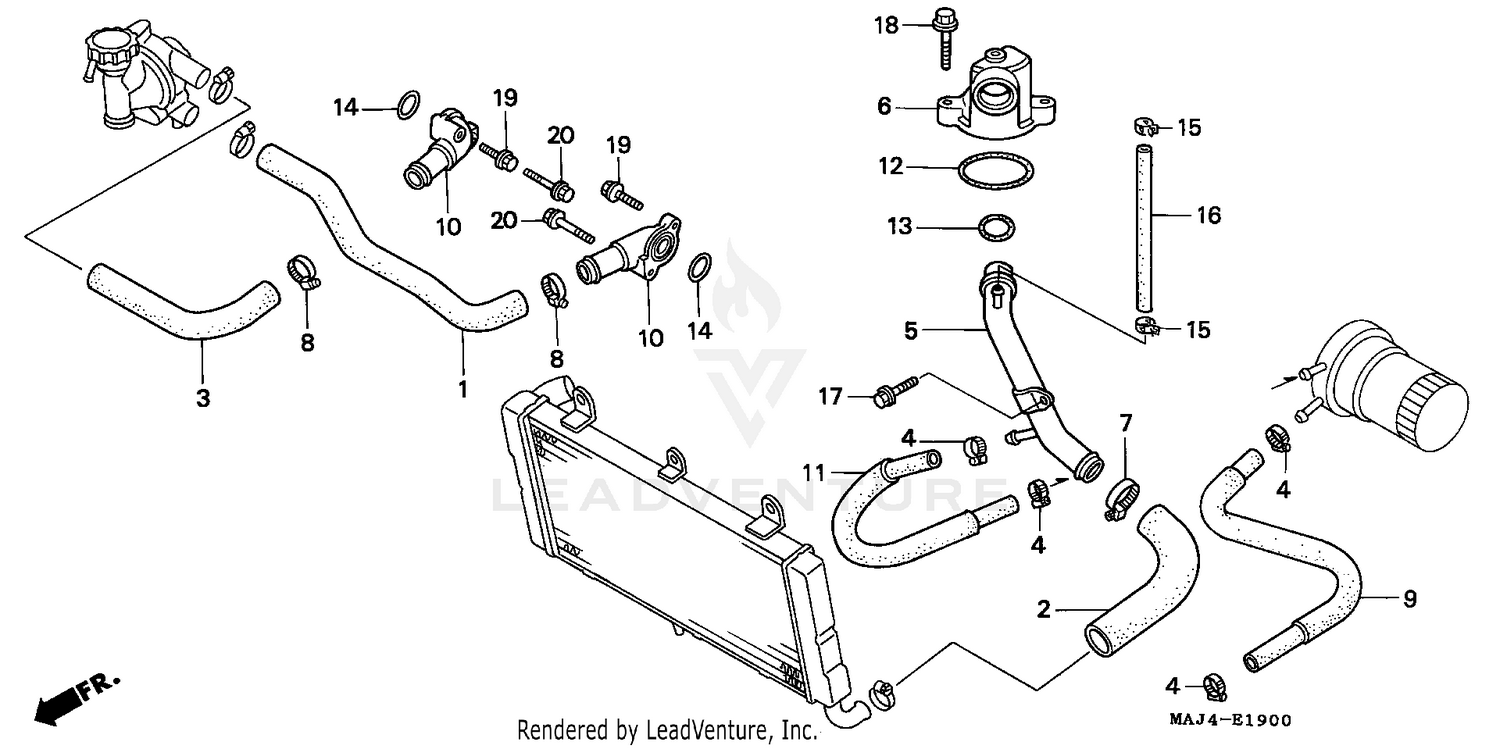

Water Pipe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, L. THERMOSTAT
19504-MT3-000
|
$39.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE B, WATER
19505-MT3-000
|
$26.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, R. THERMOSTAT
19506-MT3-000
|
$33.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, BREATHER HOSE
19507-MK4-620
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, WATER (NOT AVAILABLE)
19510-MT3-000
|
$60.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, WATER
19514-MT3-000
|
$56.08 | ||
|
Unavailable |
|||
|
#7
CLAMP, WATER HOSE
19516-MB6-000
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, HOSE (22-29MM)
19517-ML7-691
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, OIL COOLER (A) (NOT AVAILABLE)
19520-MT3-000
|
$24.97 | ||
|
Unavailable |
|||
|
#10
JOINT, WATER
19523-MT3-000
|
$16.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE, OIL COOLER (B) (NOT AVAILABLE)
19525-MT3-000
|
$37.82 | ||
|
Unavailable |
|||
|
#12
O-RING (47.5X2)
91311-KE8-000
Superseded by 91311-MCE-900
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, WATER PIPE
91315-MT3-003
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (21.2X2.4) (ARAI)
91331-PC9-003
|
$3.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLAMP, TUBE (D10)
95002-41000-08
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2
95005-55003-20M
|
$41.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
