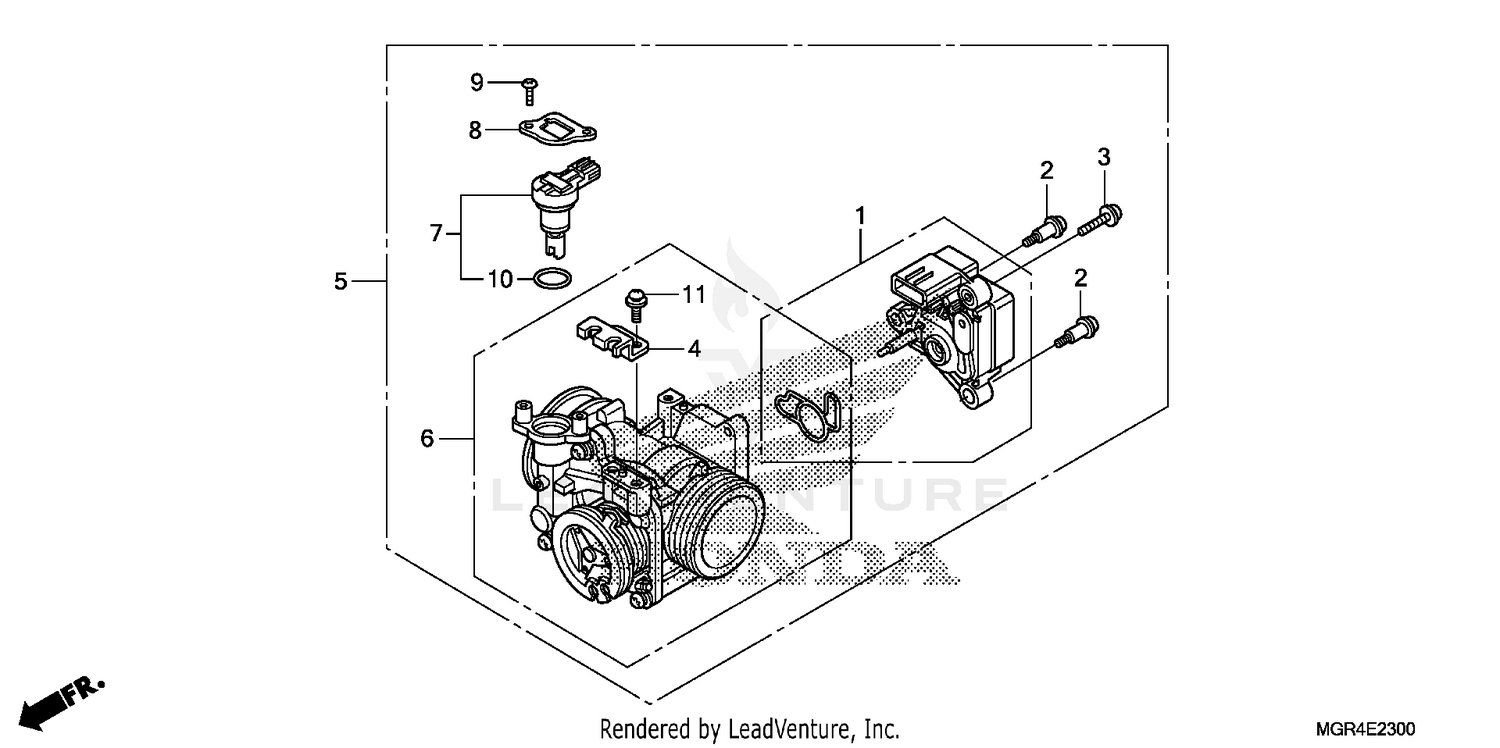

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SENSOR SET, THROTTLE
16060-MFS-003
|
$182.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, TORX (5X8.7)
16081-KPH-701
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, TORX (5X17)
16082-KPH-701
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, WIRE
16169-MFE-641
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
BODY ASSY., THROTTLE (GQ9KA A)
16400-MEG-A61
|
$545.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
BODY SET
16410-MEG-A61
|
$290.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE SET, IDLE AIR CONTROL
16430-MFE-641
|
$138.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, IDLE AIR CONTROL VALVE
16432-MFE-641
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, TORX
16433-HN8-A61
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (17.8X1.9)
16435-HN8-A61
|
$10.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-WASHER (5X12) (Honda Code 0368621)
93892-05012-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-WASHER (5X12)
93892-05012-18
Superseded by 93892-05012-08
|
$1.20 | ||
|
Unavailable |
|||
