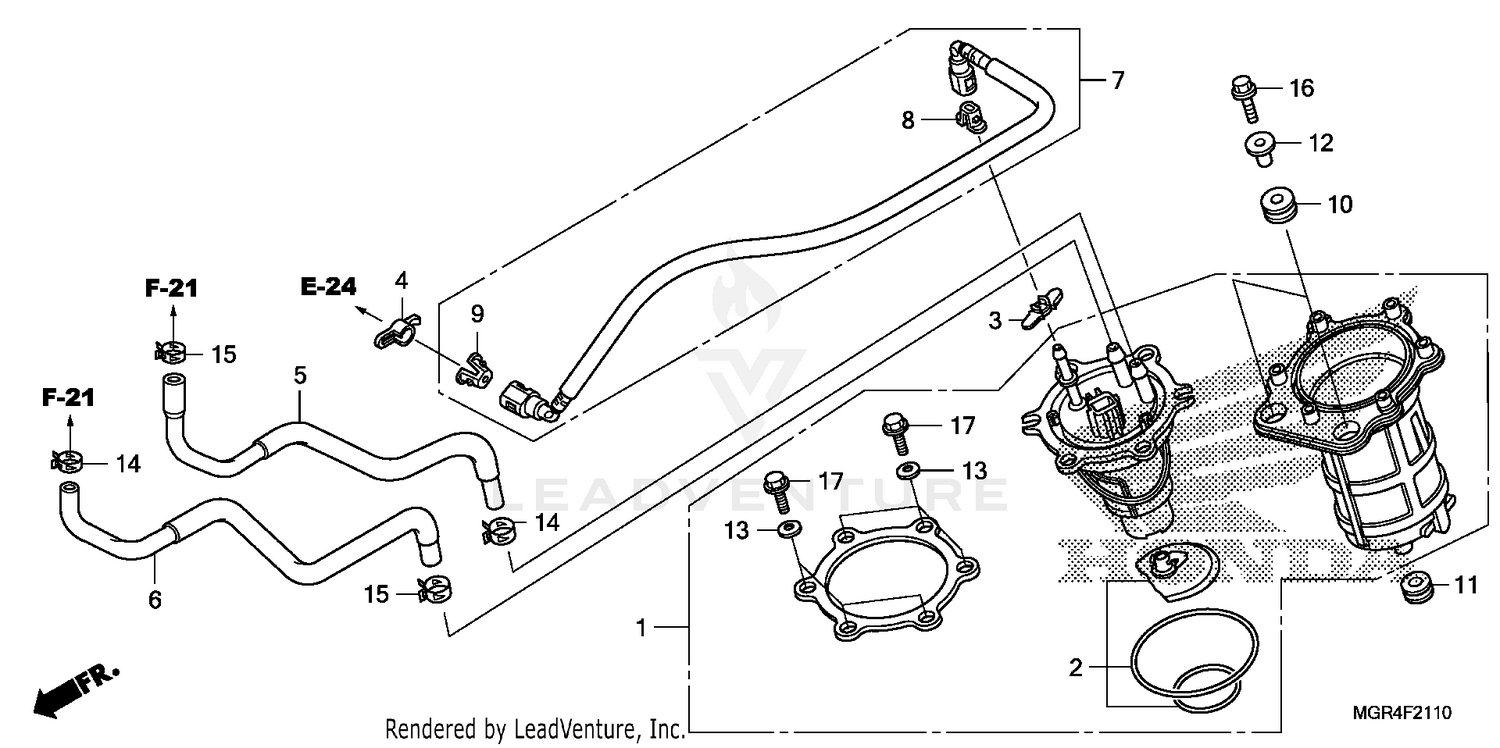

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., FUEL (MSDS)
16700-HN8-A62
Superseded by 16700-HN8-601
|
$174.69 | ||
|
Available to order. Add to View Price |
|||
|
#1
PUMP ASSY., FUEL (MSDS)
16700-HN8-601
|
$174.69 | ||
|
Unavailable |
|||
|
#2
FILTER KIT (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)
16706-HN8-A62
Superseded by 16706-HN8-305
|
$50.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILTER KIT (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)
16706-HN8-305
|
$50.78 | ||
|
Unavailable |
|||
|
#3
RUBBER, FUEL JOINT
16719-HN8-A61
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, CONNECTOR
16719-MFJ-D00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE, FUEL PUMP BREATHER
16730-MGR-670
|
$29.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, FUEL
16955-MGR-670
|
$38.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, FUEL FEED
17526-MGR-671
|
$146.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
RETAINER (GREEN) (TOKAI)
17711-S0X-A31
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)
17711-S0X-931
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, MUFFLER
18334-KA3-830
|
$4.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, RADIATOR MOUNTING
19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.84 | ||
|
Unavailable |
|||
|
#13
WASHER, CONICAL SPRING
90501-HN8-A60
|
$0.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLAMP, TUBE (12.0)
90651-HN6-A51
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, TUBE (D13)
95002-41300-08
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
