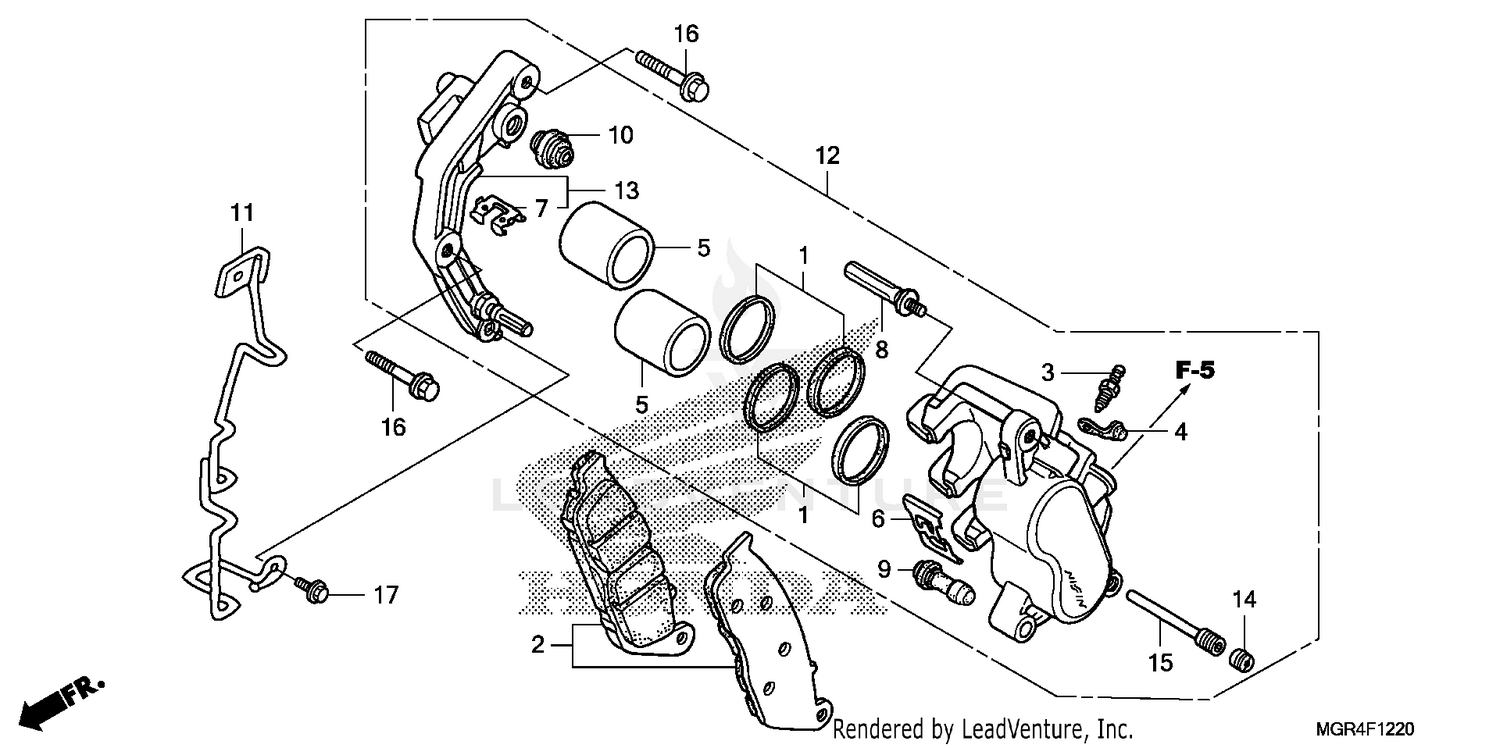

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)
06451-GE2-405
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, FR.
06455-MCK-A02
|
$37.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON (NISSIN)
45107-MN5-006
|
$45.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PAD (NISSIN)
45108-ML7-922
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER
45112-MT4-006
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT A, PIN (NISSIN)
45131-ML7-921
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GUIDE, SPEED SENSOR CORD
45136-MCL-000
|
$23.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
CALIPER SUB-ASSY., L. FR. (NISSIN)
45150-MEG-006
|
$375.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET SUB-ASSY., L. FR. CALIPER
45190-MEG-006
|
$129.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, PIN
45203-MG3-016
|
$6.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN, HANGER (NISSIN)
45215-ML7-922
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPECIAL FLANGE (8X32)
90101-MZ8-000
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X12)
90130-ML0-730
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
