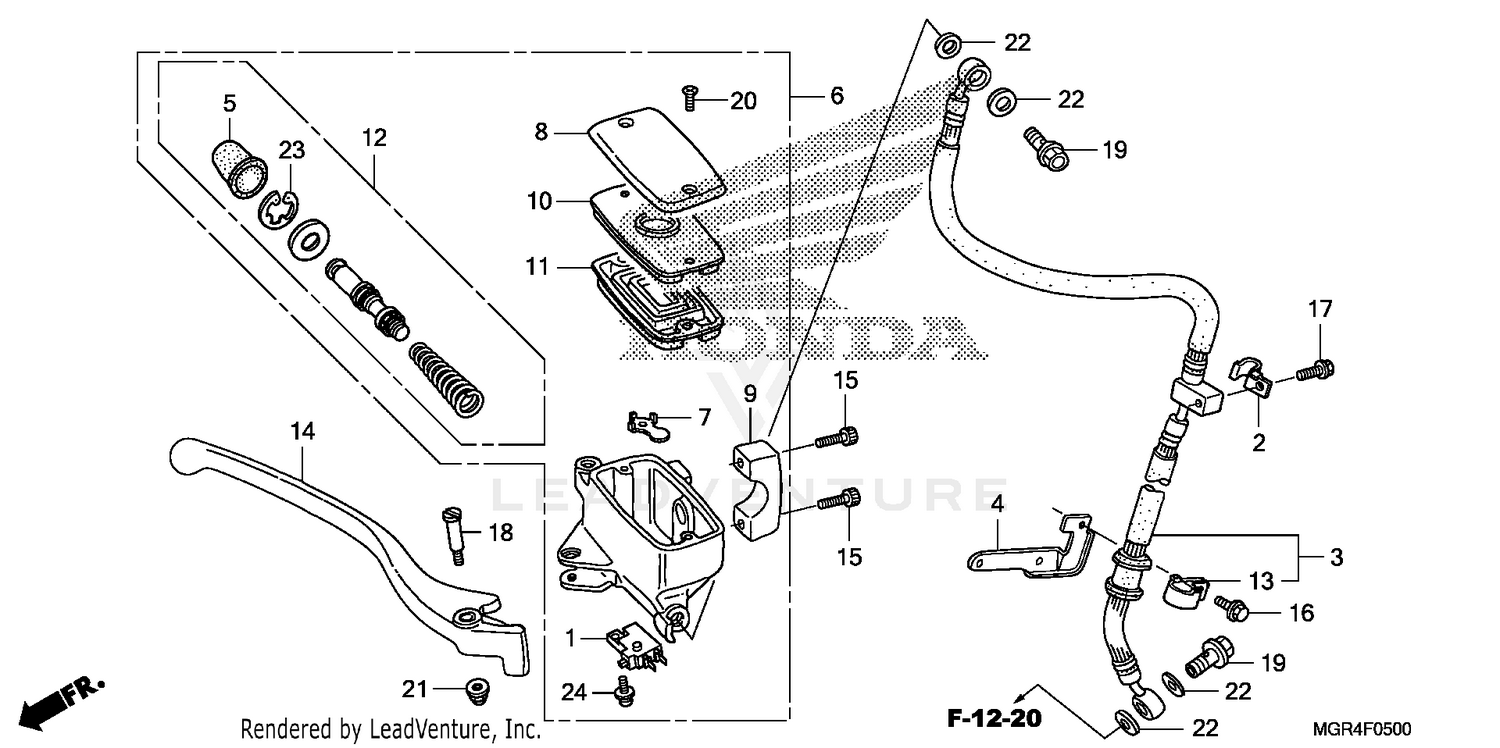

Front Brake Mastercylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MM5-600
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP B, SENSOR WIRE
38514-MEJ-J00
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, FR. BRAKE
45124-MGR-671
|
$112.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, L. FR. HOSE CLIP
45138-MCL-J00
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)
45510-MEG-006
|
$232.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)
45510-MEG-305
Superseded by 45510-MEG-006
|
$232.82 | ||
|
Unavailable |
|||
|
#7
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, MASTER CYLINDER (NISSIN)
45513-MM4-016
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, MASTER CYLINDER (NISSIN)
45517-MEG-006
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, DIAPHRAGM (NISSIN)
45518-MM5-006
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIAPHRAGM (NISSIN)
45520-MM5-006
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
MASTER CYLINDER SET (SET INCLD.7 PARTS,ITEM SHOWN BELOW SPRING DOES NOT APPLY)
45530-MN9-305
|
$61.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP A, BRAKE HOSE
52115-MCA-A20
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, R. HANDLE (COO)
53175-MR1-305
|
$19.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, R. HANDLE (COO)
53175-MR1-671
Superseded by 53175-MR1-305
|
$19.75 | ||
|
Unavailable |
|||
|
#15
BOLT, SOCKET (6X22)
90101-MCL-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X12)
90103-MCS-G00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X25)
90106-MEJ-D00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, R. HANDLEBAR PIVOT
90114-MA5-671
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FLAT (4X12)
90158-MT7-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
