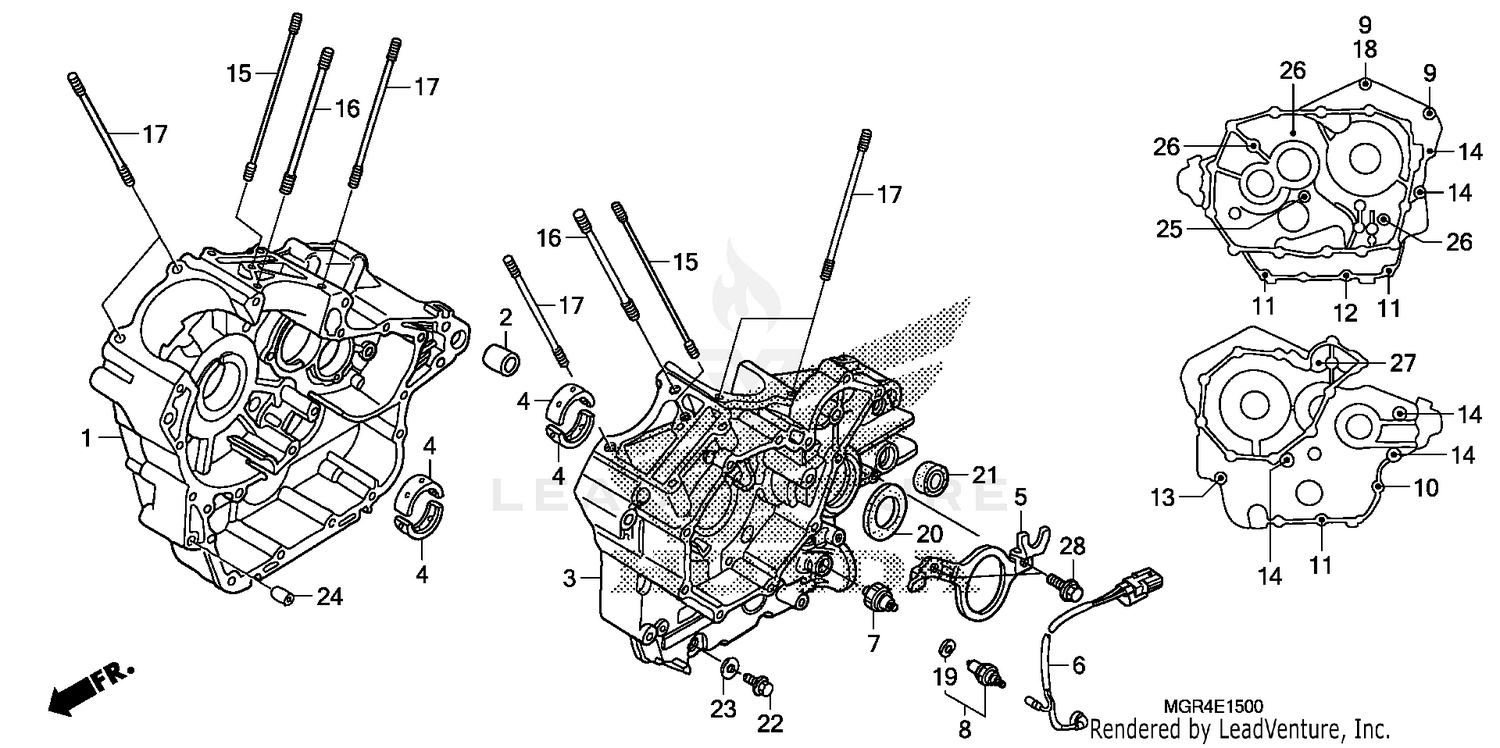

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-MGR-670
|
$1,103.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR (23X20)
11105-MM9-000
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE, L.
11200-MGR-670
|
$1,103.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING A, CRANKSHAFT (BLUE)
13321-MEG-003
|
$15.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING B, CRANKSHAFT (BLACK)
13322-MEG-003
|
$15.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING C, CRANKSHAFT (BROWN)
13323-MEG-003
|
$15.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING D, CRANKSHAFT (GREEN)
13324-MEG-003
|
$15.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING E, CRANKSHAFT (OVER SIZE) (YELLOW)
13325-MEG-305
|
$14.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING F, CRANKSHAFT (OVER SIZE) (PINK)
13326-MEG-305
|
$14.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING G, CRANKSHAFT (OVER SIZE) (RED)
13327-MEG-305
|
$14.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, OIL SEAL SETTING
23531-MV1-000
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUB-HARNESS A
32101-MGR-670
|
$25.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-024
|
$51.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH ASSY., NEUTRAL (TEC)
35600-MAW-601
|
$28.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (8X140)
90002-MEG-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X40) (NSHF)
90006-GHB-710
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X50) (NSHF) (Honda Code 7498413)
90006-GHB-730
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X80) (NSHF)
90006-GHB-790
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (8X70)
90008-MEW-920
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X80)
90010-MEG-000
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (8X189)
90011-MZ8-B40
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD (12X177)
90012-MCB-610
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD (10X177)
90013-MZ8-B40
|
$19.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SEALING (8MM)
90442-MR1-770
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, NEUTRAL SWITCH
90443-KR0-000
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (28X45X7)
91201-MV1-003
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (12.5X25X8) (ARAI)
91204-425-003
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, DRAIN PLUG (14MM)
92800-14000
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, DRAIN PLUG (14MM)
94109-14000
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIN A, DOWEL (14X20)
94301-14200
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (8X65)
95701-08065-00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X80)
95701-08080-09
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X125)
95701-08125-00
Superseded by 95701-08125-07
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X125)
95701-08125-07
|
$5.10 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
