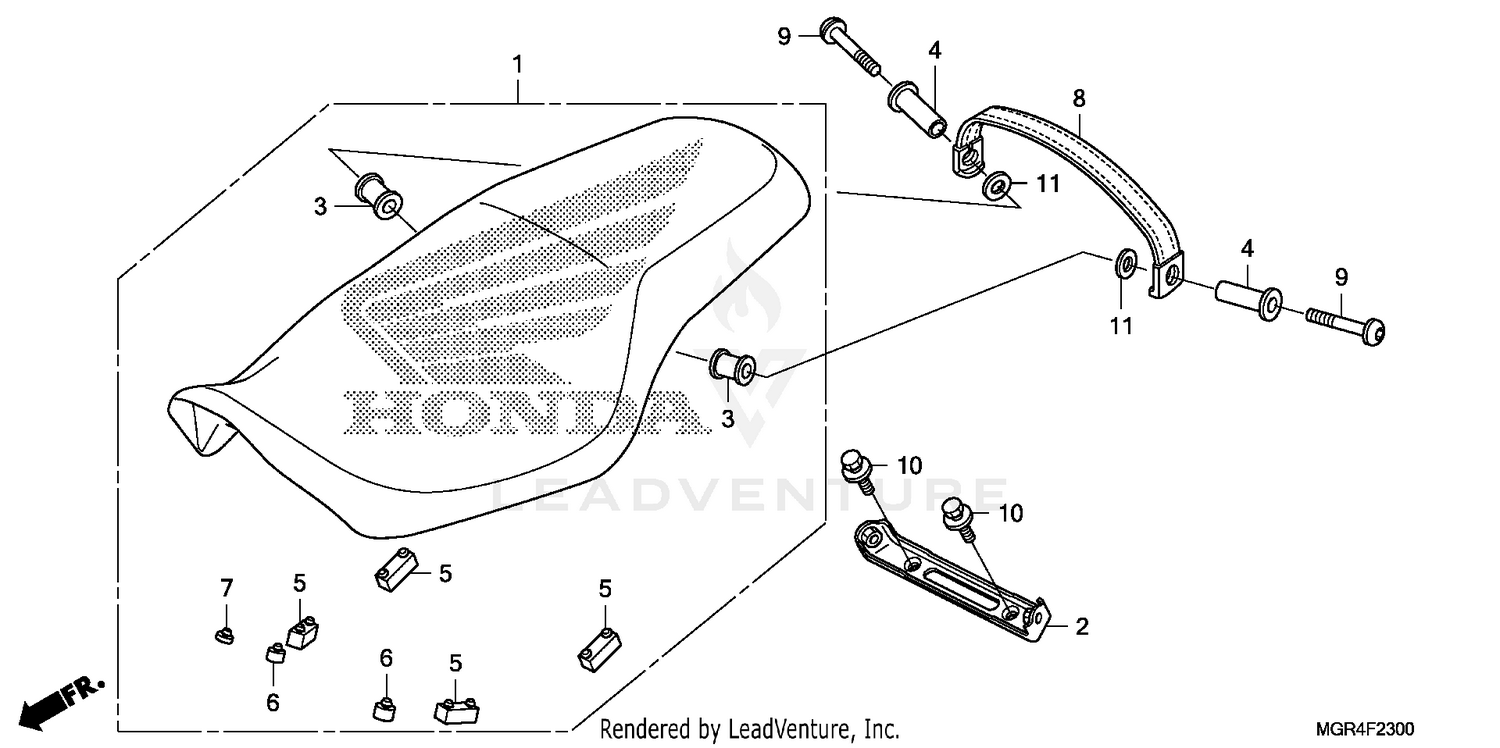

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY., DOUBLE
77200-MGR-671
|
$540.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, SEAT
77201-MGR-670
|
$25.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, SEAT MOUNTING
77202-MCL-000
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, SEAT MOUNT
77202-MGR-670
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER A, SEAT SETTING
77205-GB5-670
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER A, SEAT SETTING
77205-MG2-000
Superseded by 77205-GB5-670
|
$10.16 | ||
|
Unavailable |
|||
|
#6
RUBBER, SEAT SETTING
77206-GF0-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER B, SEAT STOPPER
77215-GC2-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT BELT
77310-MGR-671
|
$32.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SEAT BELT
90128-MGR-670
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-WASHER (8X20)
93406-08020-08
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN (12MM) (SOURCE: VINTAGE PARTS INC.)
94101-12700
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
