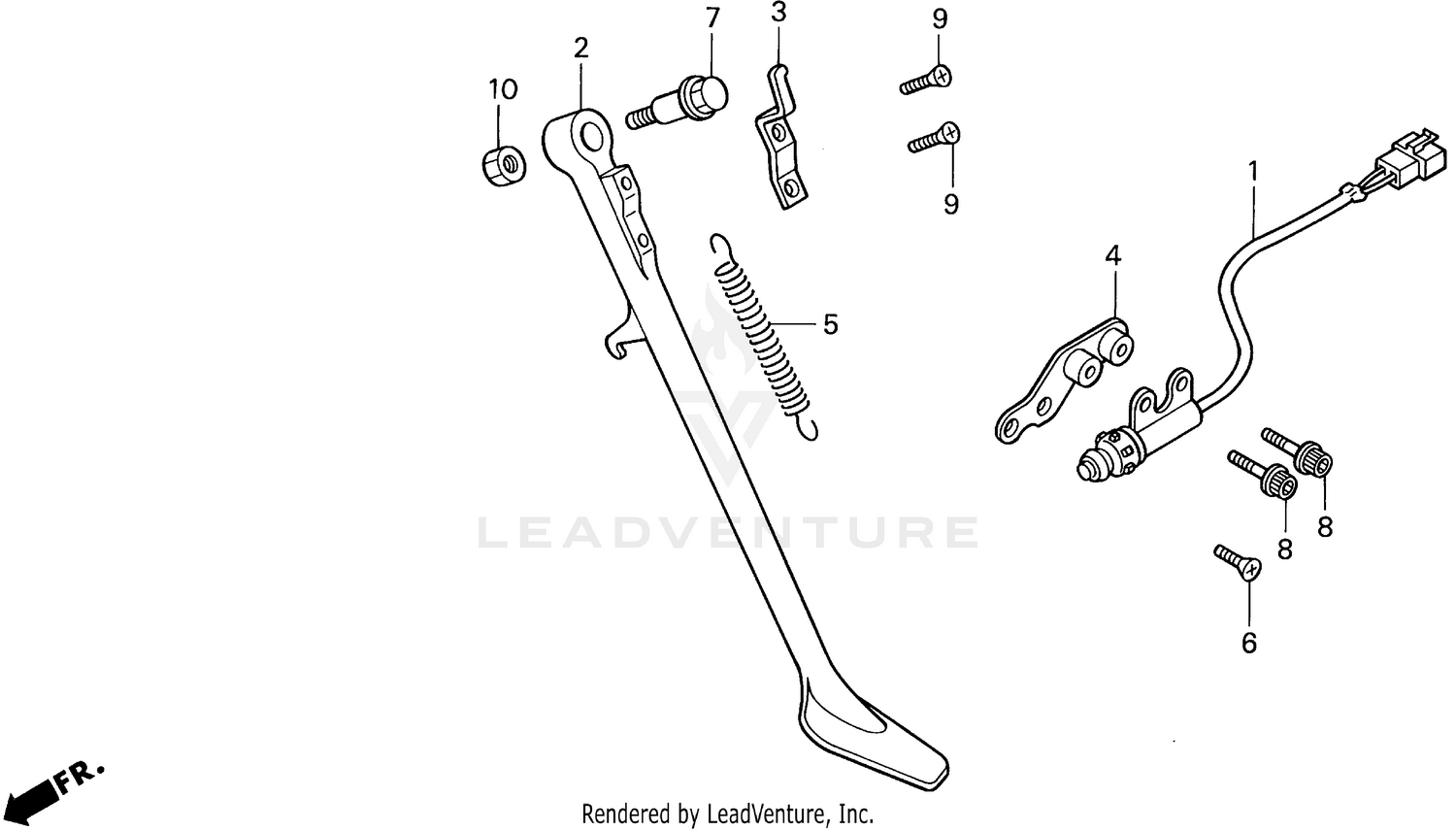

Vt1100c Stand 95-96 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., SIDE STAND (NOT AVAILABLE)
35710-MM8-611
|
$68.47 | ||
|
Unavailable |
|||
|
#2
BAR, SIDE STAND (NOT AVAILABLE)
50530-MM8-610
|
$81.45 | ||
|
Unavailable |
|||
|
#3
PLATE, ARM (SOURCE: VINTAGE PARTS INC.)
50536-MM8-610
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, SIDE STAND SWITCH (NOT AVAILABLE)
50537-MM8-610
|
$22.12 | ||
|
Unavailable |
|||
|
#5
SPRING, SIDE STAND
50541-MK3-000
|
$10.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, FLAT (6X16) (SOURCE: VINTAGE PARTS INC.)
90022-MM8-610
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, SIDE STAND PIVOT (NOT AVAILABLE)
90108-MM8-000
|
$6.89 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE (6X16) (SOURCE: VINTAGE PARTS INC.)
90128-MM8-680
|
$3.72 | ||
|
Unavailable |
|||
|
#9
SCREW, U-LOCK FLAT (6X12)
90164-028-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SIDE STAND (NOT AVAILABLE)
90203-MJ4-000
|
$4.32 | ||
|
Unavailable |
|||
