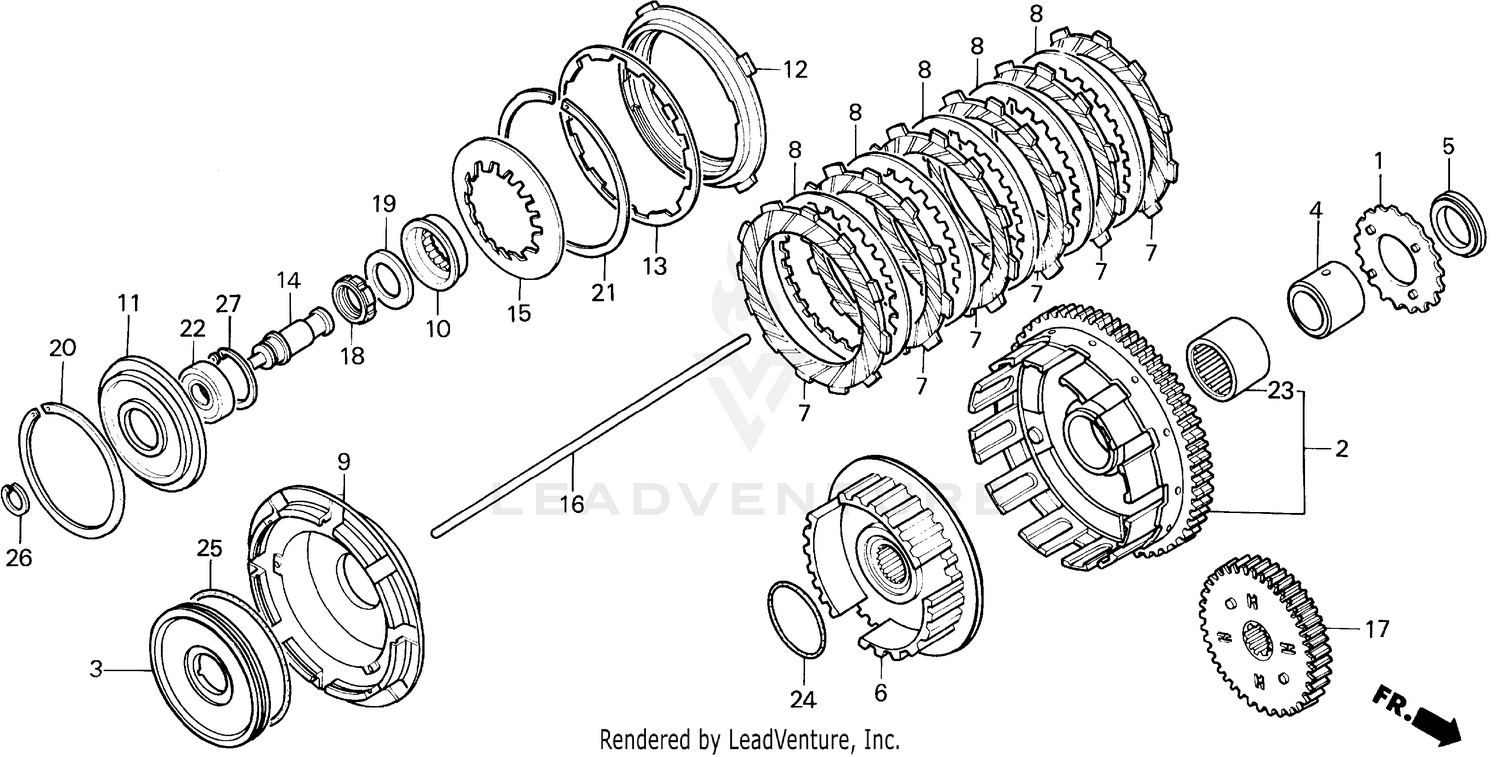

Vt1100c Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, OIL PUMP DRIVE (26T)
15131-MG8-000
|
$34.73 | ||
|
Unavailable |
|||
|
#2
CLUTCH (OUTER) (NOT AVAILABLE)
22100-MM8-000
|
$394.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON, CLUTCH (NOT AVAILABLE)
22111-MG8-000
|
$32.40 | ||
|
Unavailable |
|||
|
#4
GUIDE, CLUTCH (OUTER)
22116-MG8-000
|
$25.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, DISTANCE
22117-MG8-000
|
$14.87 | ||
|
Unavailable |
|||
|
#6
CENTER, CLUTCH (NOT AVAILABLE)
22120-MM8-000
|
$104.99 | ||
|
Unavailable |
|||
|
#7
DISK A, CLUTCH FRICTION
22201-MG8-010
|
$34.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH
22321-MG8-000
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH PRESSURE (NOT AVAILABLE)
22351-MM8-000
|
$87.33 | ||
|
Unavailable |
|||
|
#10
GUIDE, SPRING (NOT AVAILABLE)
22352-MM8-000
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CLUTCH LIFTER (NOT AVAILABLE)
22353-MG8-000
|
$30.68 | ||
|
Unavailable |
|||
|
#12
LIFTER B, CLUTCH (NOT AVAILABLE)
22354-MM8-000
|
$47.66 | ||
|
Unavailable |
|||
|
#13
SPRING, CLUTCH LIFTER (NOT AVAILABLE)
22355-MG8-000
|
$18.54 | ||
|
Unavailable |
|||
|
#14
PIECE, CLUTCH JOINT (SOURCE: VINTAGE PARTS INC.)
22366-MG8-010
|
$28.42 | ||
|
Unavailable |
|||
|
#15
SPRING, CLUTCH
22441-MG8-000
|
$14.82 | ||
|
Unavailable |
|||
|
#16
ROD, CLUTCH LIFTER (NOT AVAILABLE)
22850-MM8-000
|
$16.89 | ||
|
Unavailable |
|||
|
#17
GEAR ASSY., PRIMARY DRIVE
23110-MAH-000
|
$262.63 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR ASSY., PRIMARY DRIVE
23110-MM8-000
Superseded by 23110-MAH-000
|
$262.63 | ||
|
Unavailable |
|||
|
#18
NUT, LOCK (25MM)
90231-MM8-000
Superseded by 90231-MS2-610
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, LOCK (25MM)
90231-MS2-610
|
$22.76 | ||
|
Unavailable |
|||
|
#19
WASHER, SPRING (25MM) (CHUO SPRING)
90432-MM8-003
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP (INNER) (95MM)
90601-MB0-771
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP (INNER) (95MM)
90601-MG8-000
Superseded by 90601-MB0-771
|
$12.91 | ||
|
Unavailable |
|||
|
#21
RING, SETTING (123MM)
90602-MG8-000
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (16003)
91008-362-000
Superseded by 91011-KK6-013
|
$18.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, NEEDLE (35X42X30) (TOYO)
91024-MB0-003
|
$98.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, NEEDLE (35X42X30) (TOYO)
91024-MB0-004
Superseded by 91024-MB0-003
|
$98.35 | ||
|
Unavailable |
|||
|
#24
O-RING (51X2.3) (ARAI)
91301-MG8-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (92.3X2.3) (ARAI)
91302-MG8-003
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP, OUTER (17MM)
94510-17000
|
$1.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CIRCLIP (INNER) (35MM)
94520-35100
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
