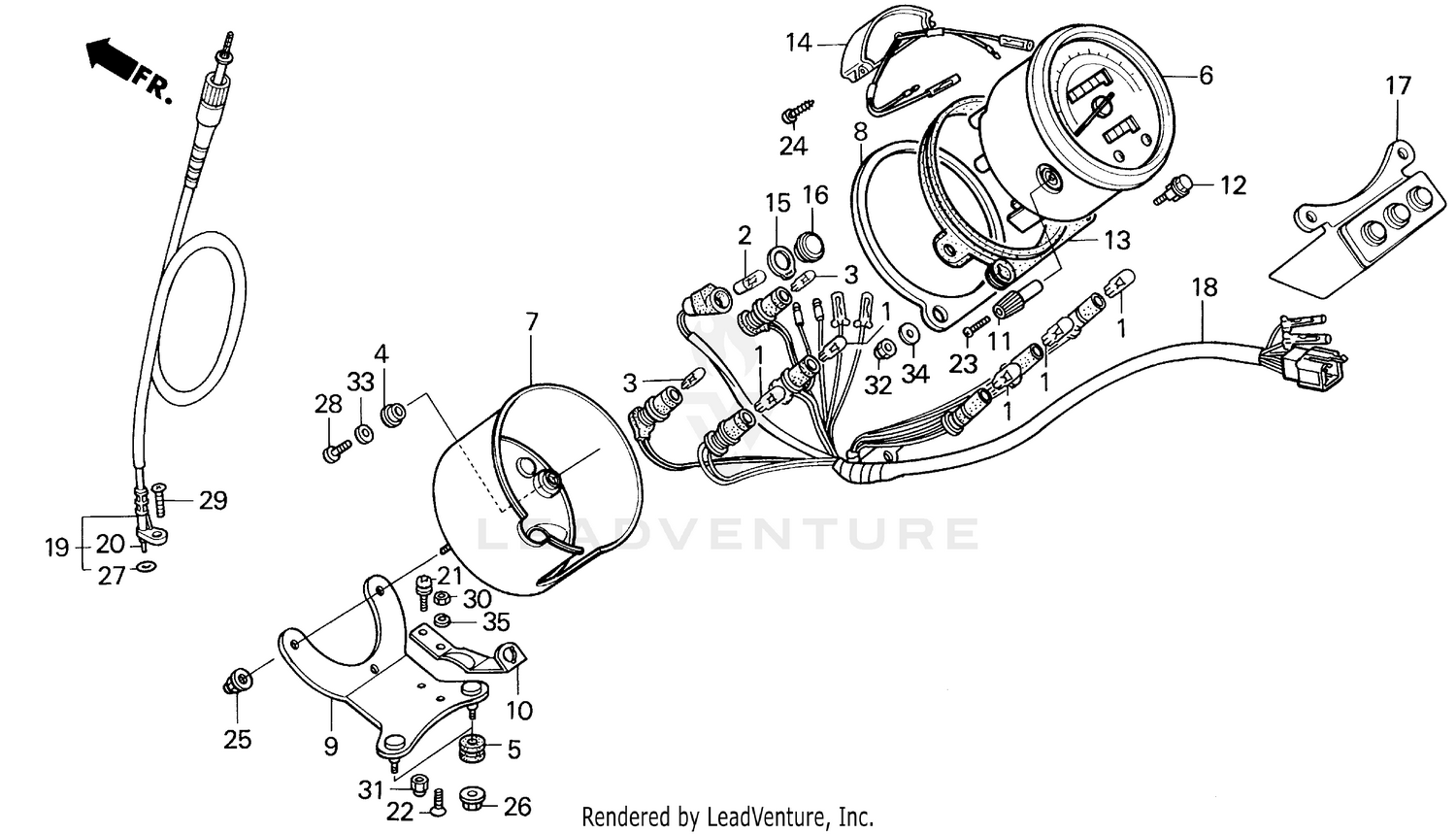

Vt1100c Speedometer 95-96 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB (14V 3.4W) (NS)
34908-GA7-701
Superseded by 37237-SA5-003
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#1
BULB (14V 3.4W) (NS)
37102-567-009
Superseded by 37237-SA5-003
|
$5.25 | ||
|
Unavailable |
|||
|
#1
BULB (14V 3.4W) (NS)
37237-SA5-003
|
$5.25 | ||
|
Unavailable |
|||
|
#1
BULB (14V 3.4W) (NS)
37237-SA5-004
Superseded by 37237-SA5-003
|
$5.25 | ||
|
Unavailable |
|||
|
#2
BULB, WEDGE BASE (T6.5) (12V 3W)
34908-KM1-671
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)
34908-MB9-871
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, METER SETTING
37101-MB1-008
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, METER MOUNTING
37111-MF5-000
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPEEDOMETER ASSY. (NOT AVAILABLE)
37200-MAA-670
|
$249.51 | ||
|
Unavailable |
|||
|
#7
COVER, METER (NOT AVAILABLE)
37204-MM8-008
|
$61.99 | ||
|
Unavailable |
|||
|
#8
PLATE, SETTING (NOT AVAILABLE)
37211-MM8-610
|
$49.16 | ||
|
Unavailable |
|||
|
#9
BRACKET, METER (SOURCE: VINTAGE PARTS INC.)
37213-MM8-611
|
$29.39 | ||
|
Unavailable |
|||
|
#10
STAY, SIDE STAND WARNING (NOT AVAILABLE)
37214-MM8-611
|
$9.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
KNOB
37220-KR3-671
|
$13.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, PILOT BOX SETTING
37225-MM8-008
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, CUSHION
37242-MM8-008
|
$20.86 | ||
|
Unavailable |
|||
|
#14
TEMPERATURE UNIT (NOT AVAILABLE)
37410-MM8-008
|
$104.03 | ||
|
Unavailable |
|||
|
#15
PANEL, SIDE STAND (SOURCE: VINTAGE PARTS INC.)
37556-MM9-830
|
$4.00 | ||
|
Unavailable |
|||
|
#16
LENS, TURN SIGNAL PILOT (ORANGE)
37561-KR3-671
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOX ASSY., PILOT
37600-MM8-671
Superseded by 37600-MM8-651
|
$80.69 | ||
|
Unavailable |
|||
|
#18
SOCKET (NOT AVAILABLE)
37619-MM8-611
|
$99.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE ASSY., SPEEDOMETER
44830-ME5-405
|
$36.78 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE ASSY., SPEEDOMETER
44830-ME5-850
Superseded by 44830-ME5-405
|
$36.78 | ||
|
Unavailable |
|||
|
#19
CABLE ASSY., SPEEDOMETER
44830-ME8-000
Superseded by 44830-ME5-405
|
$36.78 | ||
|
Unavailable |
|||
|
#19
CABLE ASSY., SPEEDOMETER
44830-MF5-000
Superseded by 44830-ME5-405
|
$36.78 | ||
|
Unavailable |
|||
|
#19
CABLE ASSY., SPEEDOMETER
44830-MK3-000
Superseded by 44830-ME5-405
|
$36.78 | ||
|
Unavailable |
|||
|
#20
CABLE (INNER)
44831-MB1-300
Superseded by 44831-KM1-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER, SPECIAL (4X10)
90035-166-008
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, FLAT (3X8) (NOT AVAILABLE)
90040-MM8-611
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN (2X6)
90158-KM7-911
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TAPPING (3X14)
90160-MM8-611
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, CAP (6MM)
90202-ZV0-000
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, FLANGE (6MM)
90302-187-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (6.8X1.9)
91301-027-000
Superseded by 91306-PJ4-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (6.8X1.9)
91306-PJ4-000
|
$3.78 | ||
|
Unavailable |
|||
|
#27
O-RING (6.8X1.9)
91310-MC7-003
Superseded by 91306-PJ4-000
|
$3.78 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN (4X8)
93500-04008-0A
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN (4X8)
93500-04008-1A
Superseded by 93500-04008-0A
|
$0.92 | ||
|
Unavailable |
|||
|
#29
SCREW, OVAL (5X20)
93700-05020-0G
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, HEX. (3MM) (NOT AVAILABLE)
94002-03000-0S
|
$0.35 | ||
|
Unavailable |
|||
|
#31
NUT, CAP (4MM) (NOT AVAILABLE)
94021-04020-0S
|
$0.60 | ||
|
Unavailable |
|||
|
#32
NUT, CAP (5MM)
94021-05020-0S
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN (4MM)
94101-04000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLAIN (5MM)
94103-05000
|
$0.71 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING (3MM)
94111-03000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
