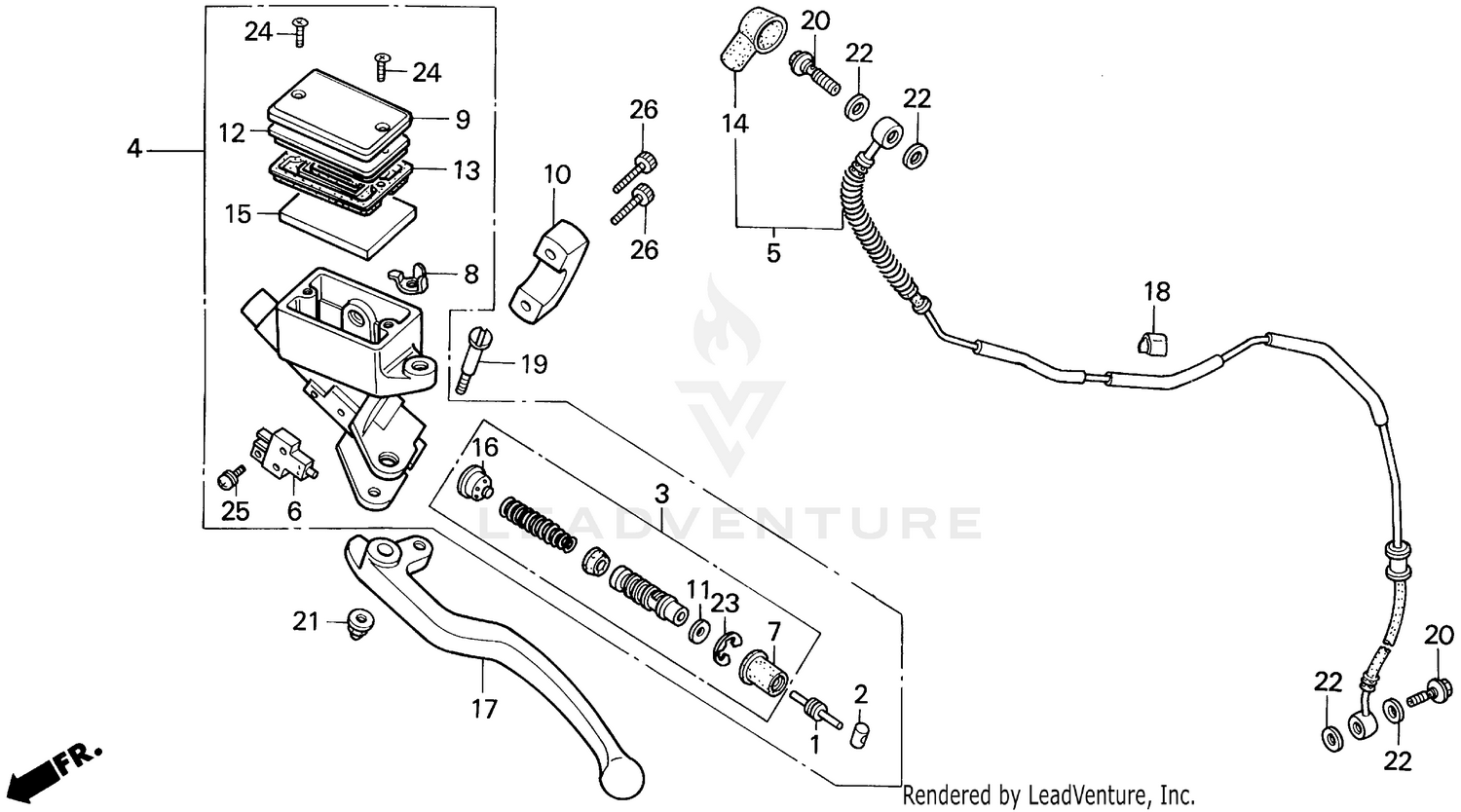

Vt1100c Clutch Master Cyl. 95-96 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROD, PUSH
22884-MB0-006
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
22885-MB0-006
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON SET, CLUTCH MASTER CYLINDER
22886-MG8-671
|
$68.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., CLUTCH (NOT AVAILABLE)
22890-MAA-405
|
$333.63 | ||
|
Unavailable |
|||
|
#5
PIPE, CLUTCH (NOT AVAILABLE)
22900-MM8-000
|
$170.99 | ||
|
Unavailable |
|||
|
#6
SWITCH ASSY., CLUTCH
35330-MB0-003
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, MASTER CYLINDER
45513-MM8-671
|
$32.72 | ||
|
Unavailable |
|||
|
#10
HOLDER, MASTER CYLINDER (NOT AVAILABLE)
45517-MM8-671
|
$20.06 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, STOPPER
45518-MB0-006
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, DIAPHRAGM
45518-MB4-671
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM
45520-MA5-672
|
$21.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT, MASTER CYLINDER
45522-422-000
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLOAT, FR. MASTER CYLINDER (NOT AVAILABLE)
45523-MG9-006
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, CHECK (NOT AVAILABLE)
46140-MG8-006
|
$12.22 | ||
|
Unavailable |
|||
|
#17
LEVER, L. HANDLE
53178-MJ0-921
Superseded by 53178-MM5-006
|
$26.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, L. HANDLE
53178-MM5-006
|
$26.55 | ||
|
Unavailable |
|||
|
#18
CLAMP, MICROPHONE WIRE (NOT AVAILABLE)
61108-MJ1-830
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HANDLE LEVER PIVOT
90114-MA5-671
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, OIL (10X22)
90145-MS9-611
Superseded by 90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Unavailable |
|||
|
#21
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CIRCLIP (INNER) (18MM)
90651-377-003
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, FLAT (4X12)
93600-04012-1A
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#26
BOLT, SOCKET (6X22)
96600-06022-10
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, SOCKET (6X22)
96700-06022-10
Superseded by 96600-06022-10
|
$2.40 | ||
|
Unavailable |
|||
