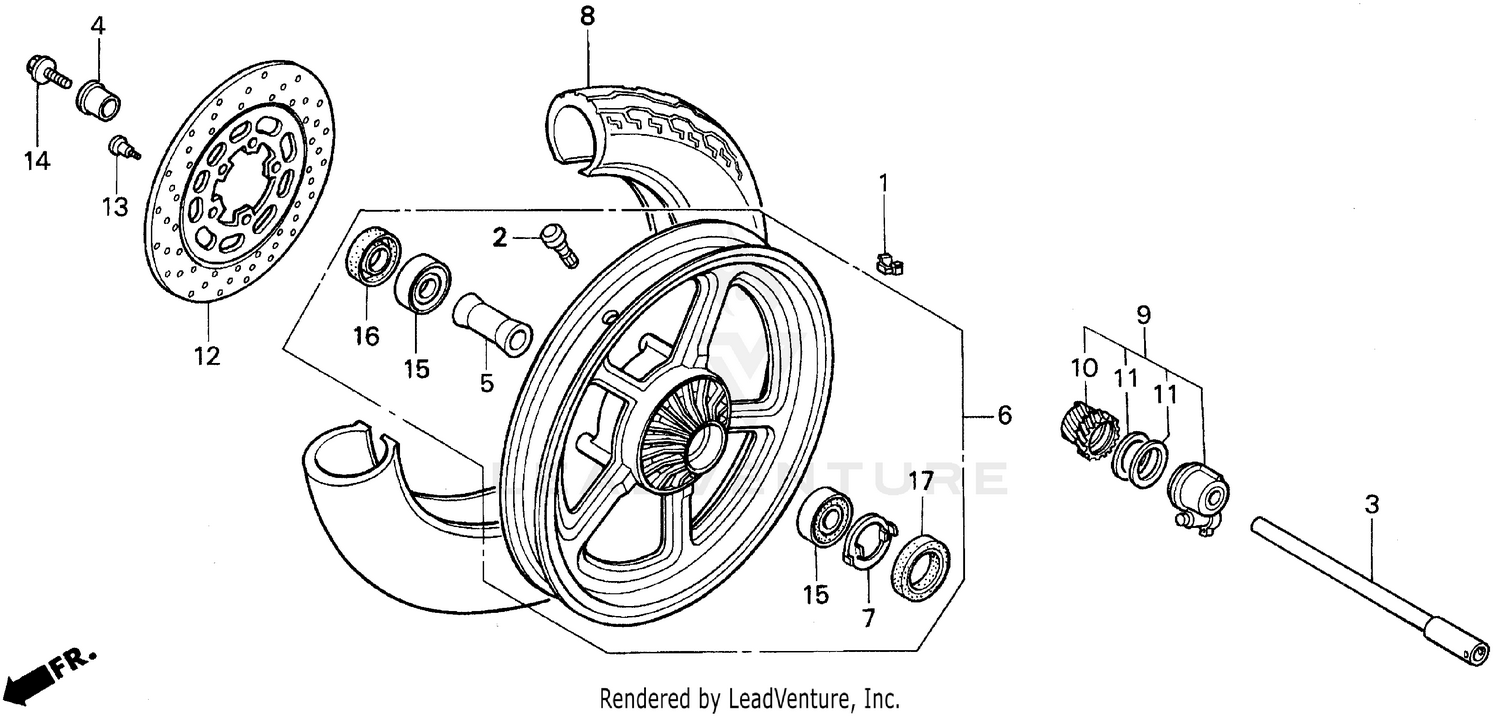

Vt1100c Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WEIGHT, BALANCE (10G)
42704-MB0-000
Superseded by 42704-MCF-D60
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#1
WEIGHT, BALANCE (20G)
42705-MB0-000
Superseded by 42705-MCF-D60
|
$17.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
WEIGHT, BALANCE (20G)
42705-MCF-D60
|
$17.56 | ||
|
Unavailable |
|||
|
#1
WEIGHT, BALANCE (30G)
42706-MB0-000
Superseded by 42706-MCF-D60
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#1
WEIGHT, BALANCE (30G)
42706-MCF-D60
|
$17.55 | ||
|
Unavailable |
|||
|
#2
VALVE, RIM (DUNLOP)
42753-ML7-004
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, FR. WHEEL
44301-MAH-671
|
$74.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. WHEEL SIDE
44311-MM8-000
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, FR. AXLE DISTANCE
44620-MAH-000
|
$23.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
WHEEL SET, FR.
44650-MM8-305
Superseded by 44650-MM8-345
|
$498.58 | ||
|
Unavailable |
|||
|
#6
WHEEL SET, FR.
44650-MM8-315
Superseded by 44650-MM8-345
|
$498.58 | ||
|
Unavailable |
|||
|
#6
WHEEL SET, FR.
44650-MM8-325
Superseded by 44650-MM8-345
|
$498.58 | ||
|
Unavailable |
|||
|
#6
WHEEL SET, FR.
44650-MM8-335
Superseded by 44650-MM8-345
|
$498.58 | ||
|
Unavailable |
|||
|
#6
WHEEL SET, FR.
44650-MM8-345
|
$498.58 | ||
|
Unavailable |
|||
|
#7
RETAINER, GEAR BOX
44680-ML7-000
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
TIRE, FR. (110/90-19) (M/C 62H) (DUNLOP)
44711-MM8-673
Superseded by 44711-MM8-676
|
$104.91 | ||
|
Unavailable |
|||
|
#9
BOX ASSY., SPEEDOMETER GEAR
44800-MM8-003
|
$119.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, SPEEDOMETER
44806-MM8-003
|
$36.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPEEDOMETER GEAR
44809-ML7-003
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
DISK, FR. BRAKE
45251-MM8-000
|
$503.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MV9-003
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FR. AXLE
90305-ML7-000
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (6004UU)
91054-MAM-003
|
$39.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (6004UU)
91054-MN8-741
Superseded by 91054-MAM-003
|
$39.07 | ||
|
Unavailable |
|||
|
#16
DUST SEAL (28X42X8) (NOK)
91257-KA3-712
Superseded by 91257-MAY-003
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
DUST SEAL (28X42X8) (NOK)
91257-KA3-711
Superseded by 91257-MAY-003
|
$11.11 | ||
|
Unavailable |
|||
|
#16
DUST SEAL (28X42X8) (NOK)
91257-MAY-003
|
$11.11 | ||
|
Unavailable |
|||
|
#17
DUST SEAL (45X55X5) (ARAI)
91258-ML7-004
Superseded by 91258-ML7-003
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DUST SEAL (45X55X5) (ARAI)
91258-ML7-003
|
$10.49 | ||
|
Unavailable |
|||
