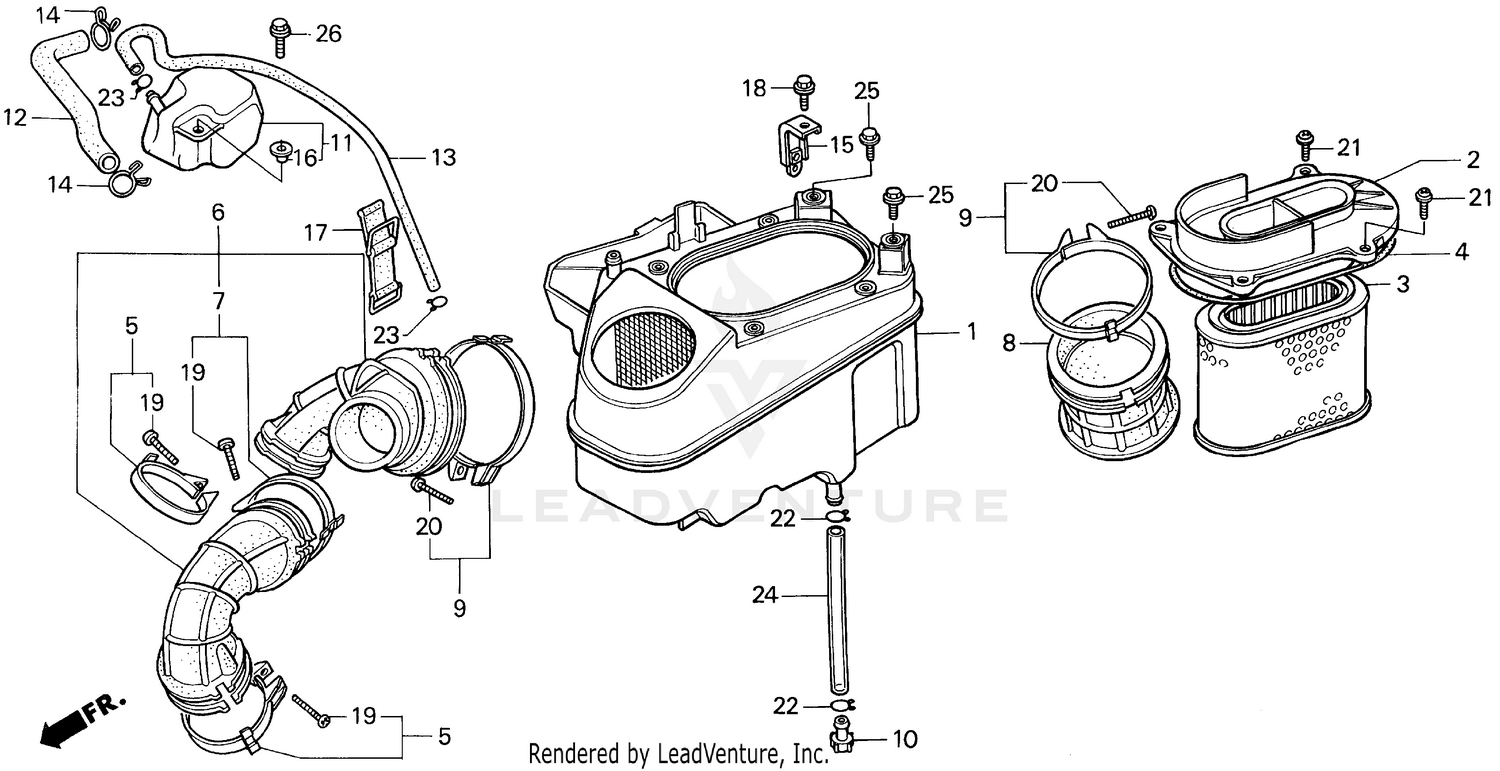

Vt1100c Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE SUB, AIR CLEANER
17210-MM8-010
Superseded by 17210-MM8-020
|
$85.51 | ||
|
Available to order. Add to View Price |
|||
|
#1
CASE SUB, AIR CLEANER
17210-MM8-020
|
$85.51 | ||
|
Unavailable |
|||
|
#2
COVER, AIR CLEANER HOUSING
17212-MM8-000
Superseded by 17212-MM8-010
|
$10.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, AIR CLEANER HOUSING
17212-MM8-010
|
$10.07 | ||
|
Unavailable |
|||
|
#3
ELEMENT, AIR CLEANER
17215-MM8-010
Superseded by 17215-MM8-020
|
$38.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
ELEMENT, AIR CLEANER
17215-MM8-020
|
$38.11 | ||
|
Unavailable |
|||
|
#4
GASKET, AIR CLEANER HOUSING COVER
17217-MG8-300
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND, AIR CLEANER CONNECTING TUBE (60)
17254-MM8-000
Superseded by 95018-60250
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND, AIR CLEANER CONNECTING TUBE (60)
17257-HA0-000
Superseded by 95018-60250
|
$7.85 | ||
|
Unavailable |
|||
|
#5
BAND, AIR CLEANER CONNECTING TUBE (60)
95018-60250
|
$7.85 | ||
|
Unavailable |
|||
|
#6
CONNECTING TUBE A
17255-MM8-000
|
$62.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, AIR CLEANER CONNECTING TUBE (52)
17256-MM8-000
Superseded by 95018-52250
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, AIR CLEANER CONNECTING TUBE (52)
95018-52250
|
$6.45 | ||
|
Unavailable |
|||
|
#8
TUBE B, AIR CLEANER CONNECTING
17258-MM8-300
|
$60.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND C, CONNECTING TUBE
17259-MM8-000
|
$21.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, BREATHER TUBE
17370-419-700
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK, STORAGE
17551-MM8-000
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE A, BREATHER (NOT AVAILABLE)
17552-MM8-000
|
$12.20 | ||
|
Unavailable |
|||
|
#13
TUBE B, BREATHER
17553-MM8-000
|
$15.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, SUB-TANK HOSE
17724-102-700
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, FILLER NECK
19111-MM8-000
|
$7.55 | ||
|
Unavailable |
|||
|
#16
COLLAR, FR. FENDER
61105-KM7-910
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, SIDE COVER
83606-356-000
|
$28.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6MM)
90116-ME9-000
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, PAN (4X20)
93500-04020-0G
|
$0.82 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (4X25)
93500-04025-0G
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (5X16)
93891-05016-07
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLIP, TUBE (B12.5)
95002-02130
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
BULK HOSE, VINYL (7X11X8000) (7X11X230)
95003-19008-60M
|
$34.72 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X10)
95701-06010-08
|
$1.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
