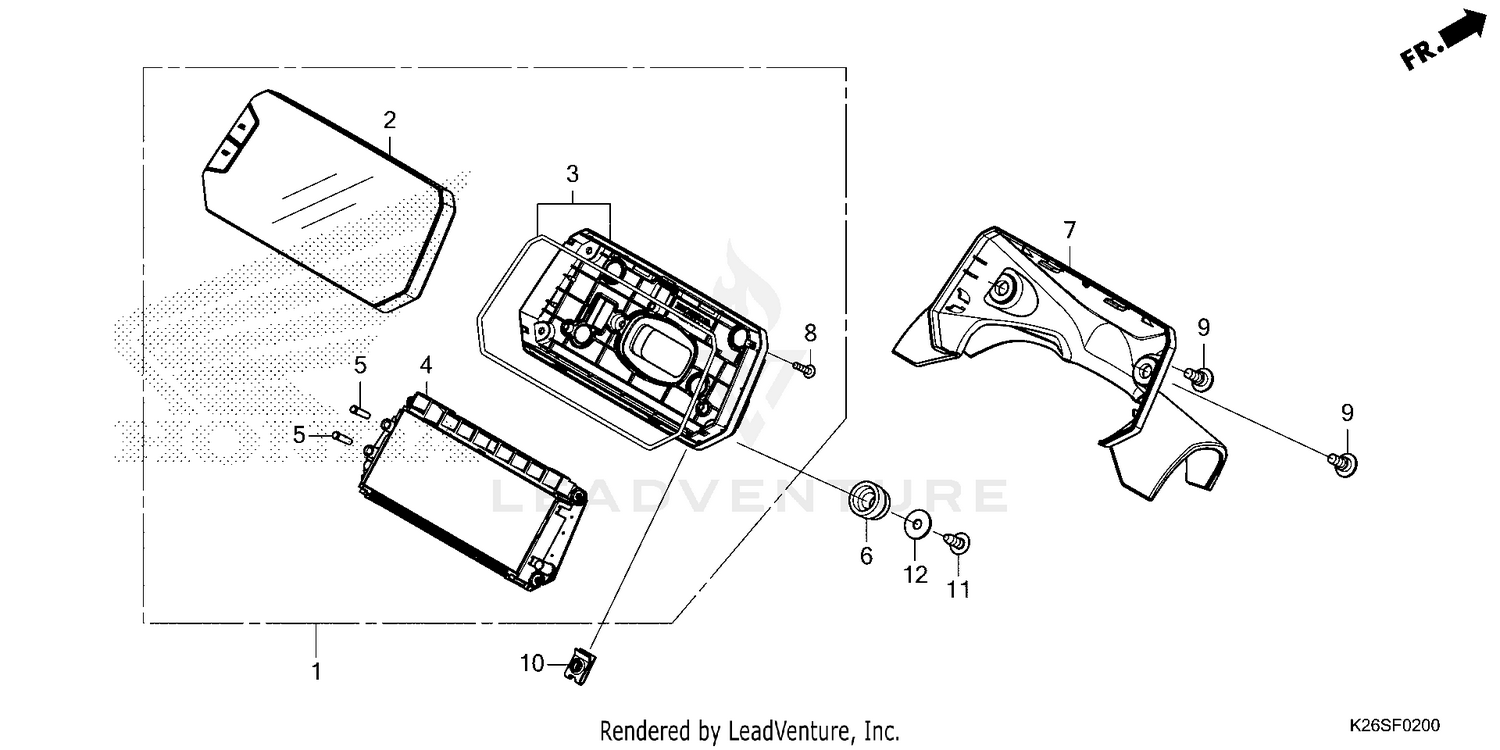

Speedometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
METER ASSY., COMBINATION (KPH/MPH)
37100-K26-G11
|
$289.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE ASSY. (UPPER)
37110-K26-G01
|
$55.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
CASE ASSY. (LOWER)
37120-K26-G01
|
$21.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
METER, LCD
37130-K26-G11
|
$209.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
KEY, TOP
37205-K26-G01
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, METER SETTING
37215-KZZ-900
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, METER
61341-K26-G00
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, TAPPING (3X14)
90101-KY6-008
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN (5X14)
90134-KPP-T00
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT, CLIP (5MM)
90677-KAN-961
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, TAPPING (5X14) (PO)
93913-25380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN (5MM)
94103-05700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
