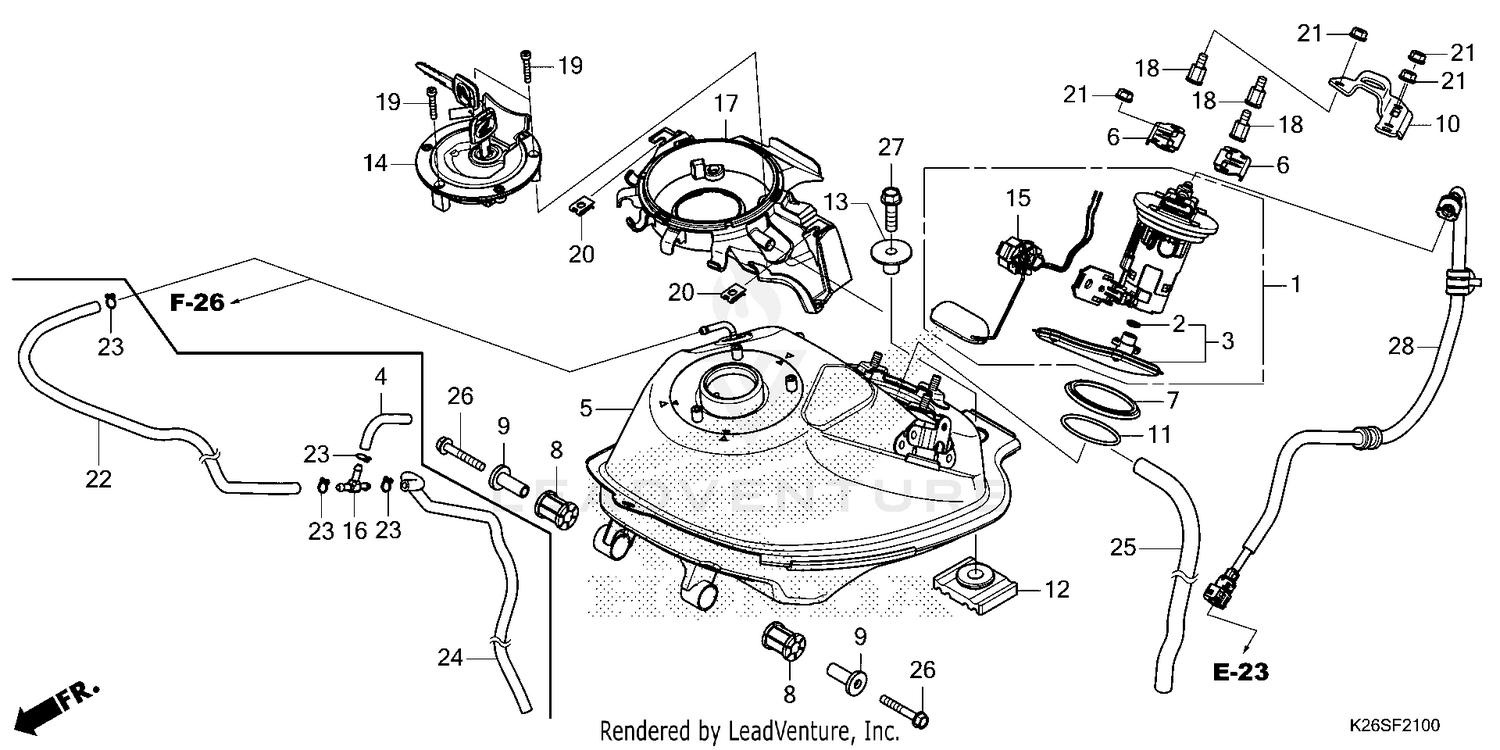

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP UNIT, FUEL (MSDS)
16700-K26-G01
|
$97.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING (P5)
16706-K0J-N01
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
FILTER SET
16707-K1M-T01
|
$9.53 | ||
|
Unavailable |
|||
|
#5
TANK ASSY., FUEL
17500-K26-G00
|
$266.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
RETAINER, FUEL PUMP
17517-GGL-J00
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUST SEAL (OHTUKA POLY-TECH)
17518-GHB-601
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, FR. TANK MOUNTING
17534-K94-T00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
17538-KZZ-900
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, FUEL PUMP
17540-K26-G00
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING, FUEL PUMP (ARAI)
17572-GHB-601
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, RR. FUEL TANK
17613-K26-G00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, FUEL TANK MT
17614-K26-L00
|
$2.36 | ||
|
Unavailable |
|||
|
#14
CAP COMP
17620-K26-G02
|
$173.20 | ||
|
Unavailable |
|||
|
#15
FUEL UNIT
37800-K26-G01
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, TANK CAP
64460-K26-G00
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SPECIAL (6MM)
90101-K26-900
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SOCKET (4X25) (SUS)
90120-MJE-D00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CLIP (5MM)
90677-KAN-961
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)
95005-80001-20M
|
$28.98 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)
95701-06040-00
|
$1.97 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X28)
95701-08028-00
|
$1.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
HOSE, FUEL FEED
17570-K26-G01
|
$27.80 | ||
|
Available to order. Add to View Price |
|||
