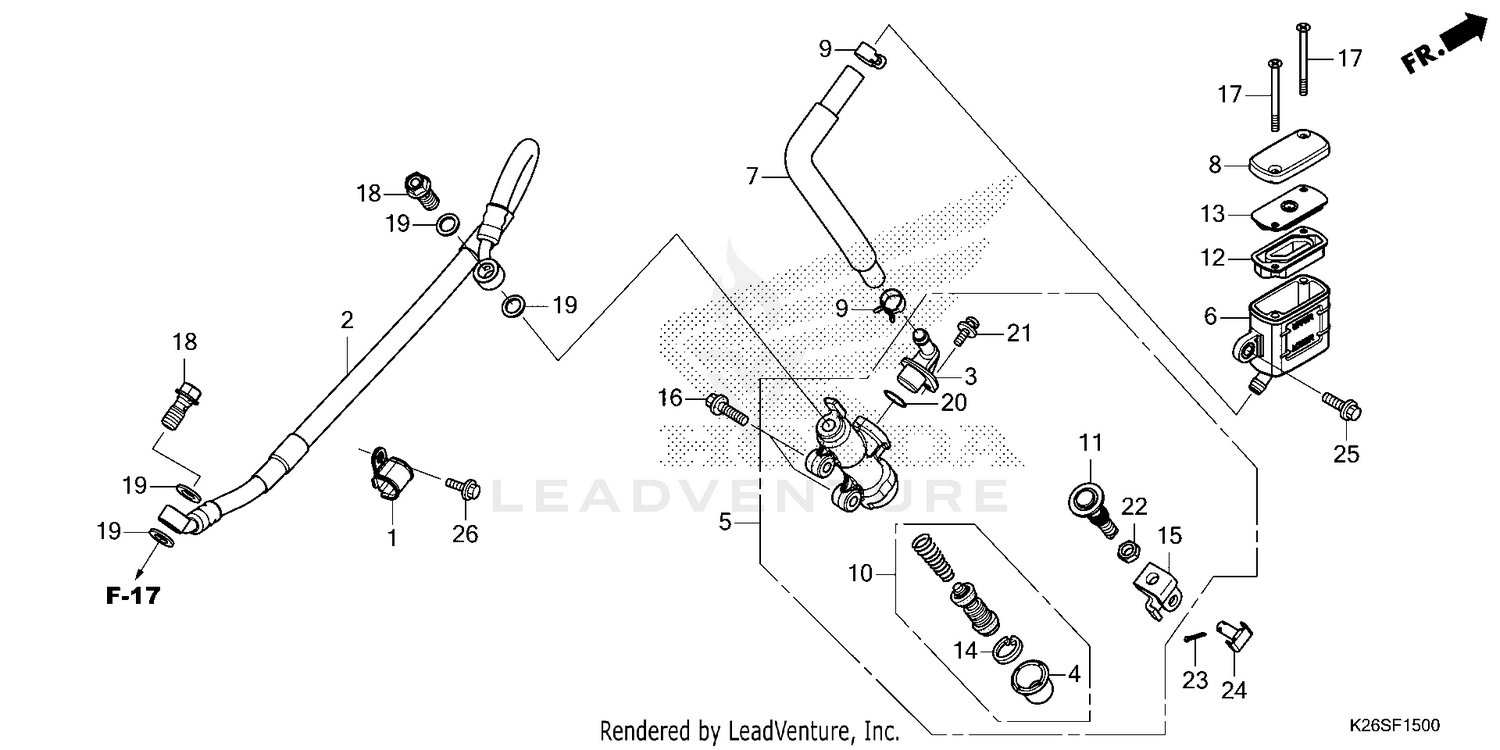

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, RR. BRAKE HOSE
43155-K26-900
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE COMP, RR. BRK
43310-K26-L01
|
$16.76 | ||
|
Unavailable |
|||
|
#3
CONNECTOR
43503-MR7-006
|
$17.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)
43510-K26-B01
|
$109.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUP, OIL
43511-K43-D31
|
$25.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, RR. MASTER CYLINDER
43512-K26-G01
|
$12.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, MASTER CYLINDER
43513-KTY-C01
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MJ6-315
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, PUSH
43530-KV3-831
|
$26.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM
45520-GW0-911
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, DIAPHRAGM
45521-GW0-911
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
46182-MEL-D21
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT, BRAKE ROD
46504-KV6-702
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X22) (SH)
90101-K26-B00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, FLAT (4X50)
90140-K43-D31
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, OIL (10X22) (NISSIN)
90145-KPH-B30
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#22
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, COTTER (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X14)
95701-06014-07
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
