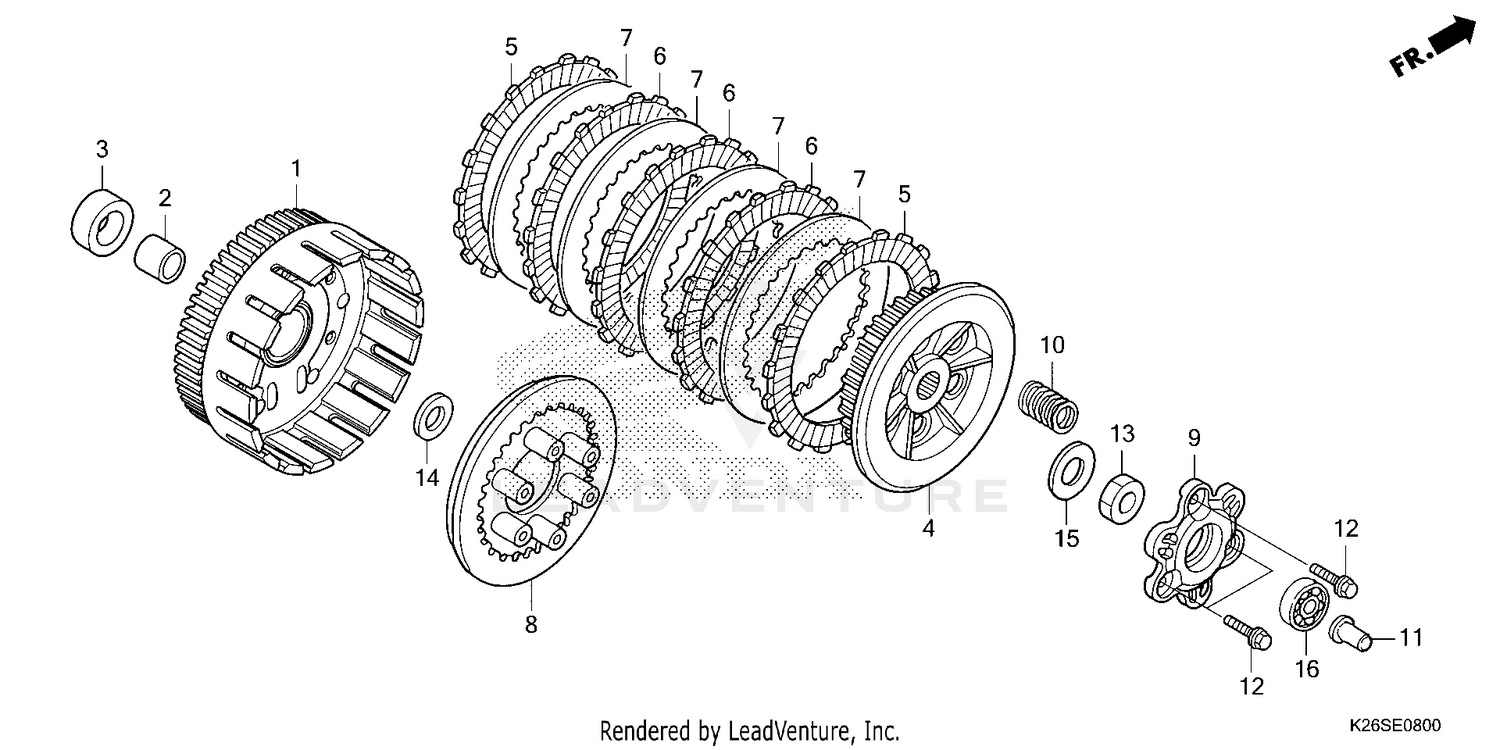

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH OUTER (76T)
22100-K26-G02
|
$218.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, CLUTCH (OUTER)
22115-KPH-900
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, CLUTCH (OUTER)
22116-K26-G00
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
CENTER, CLUTCH
22121-K26-G01
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISK, CL FRICTION
22201-K26-M01
|
$9.89 | ||
|
Unavailable |
|||
|
#6
DISK B, CL FRICTION
22204-K26-M01
|
$12.35 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH
22321-KE8-000
|
$15.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PLATE, CLUTCH PRESSURE
22350-KPH-900
|
$23.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH LIFTER
22361-K1M-T01
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, CLUTCH
22401-KPH-900
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, CLUTCH LIFTER
22847-K26-900
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SPECIAL FLANGE (6X20)
90050-KPH-900
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, HEX. (14MM)
90204-KYJ-900
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, THRUST (17MM)
90403-KPH-900
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (14.2X26X3)
90432-KPT-A00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, RADIAL BALL (6200)
96100-62000-00
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
