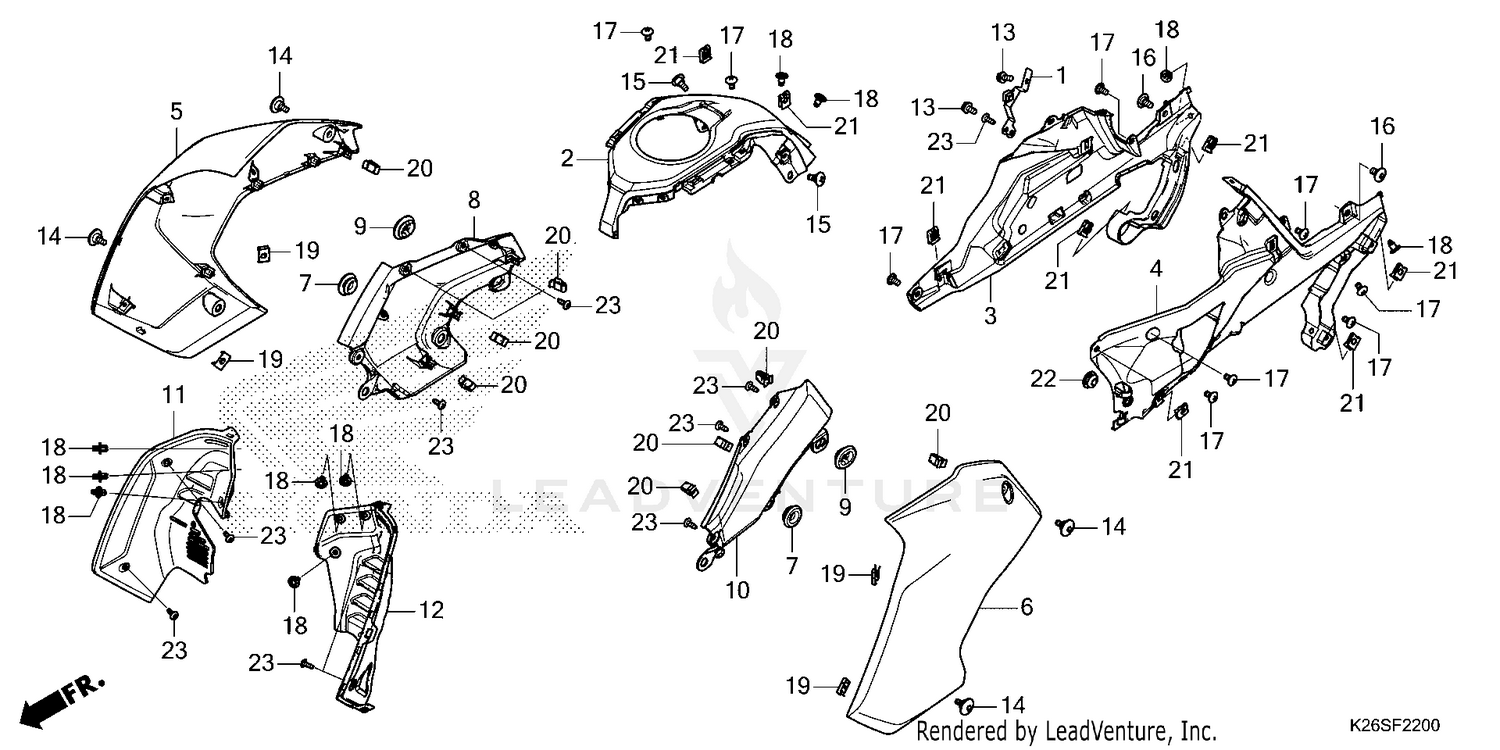

Shroud Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, OIL CUP
50265-K26-M00
|
$3.95 | ||
|
Unavailable |
|||
|
#2
COVER, FUEL TANK
64450-K26-M00
|
$12.11 | ||
|
Unavailable |
|||
|
#3
COVER, R. FUEL TANK
64470-K26-M00
|
$17.42 | ||
|
Unavailable |
|||
|
#4
COVER, L. FUEL TANK
64570-K26-M00
|
$19.18 | ||
|
Unavailable |
|||
|
#5
SHROUD SET A (TYPE4)
83450-K26-M10ZA
|
$26.40 | ||
|
Unavailable |
|||
|
#6
SHROUD SET A (TYPE4)
83460-K26-M10ZA
|
$26.36 | ||
|
Unavailable |
|||
|
#7
GROMMET, RR. COVER
83504-GE0-000
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHROUD B *NHA40M*
83545-K26-M00ZC
|
$29.60 | ||
|
Unavailable |
|||
|
#9
GROMMET, AIR CLEANER HOUSING
83551-GE2-000
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHROUD B *NHA40M*
83555-K26-M00ZC
|
$29.60 | ||
|
Unavailable |
|||
|
#11
SHROUD, R. (INNER)
83560-K26-M00
|
$11.44 | ||
|
Unavailable |
|||
|
#12
SHROUD, L. (INNER)
83570-K26-M00
|
$9.95 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (5X10)
90002-892-000
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (5X14)
90102-K26-G00
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, SPECIAL (5MM)
90104-KPH-900
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (6X12)
90106-K26-900
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, VISOR SPECIAL SETTING
90115-KWW-620
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
RIVET, PUSH (6MM)
90116-K0A-E11
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SPRING (4MM)
90302-KWW-A00
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, SNAP FITTING (PO)
90666-K59-A11
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, CLIP (5MM)
90677-KAN-961
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, HOLE
90852-KPP-T00
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TAPPING (4X12)
93903-24380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
