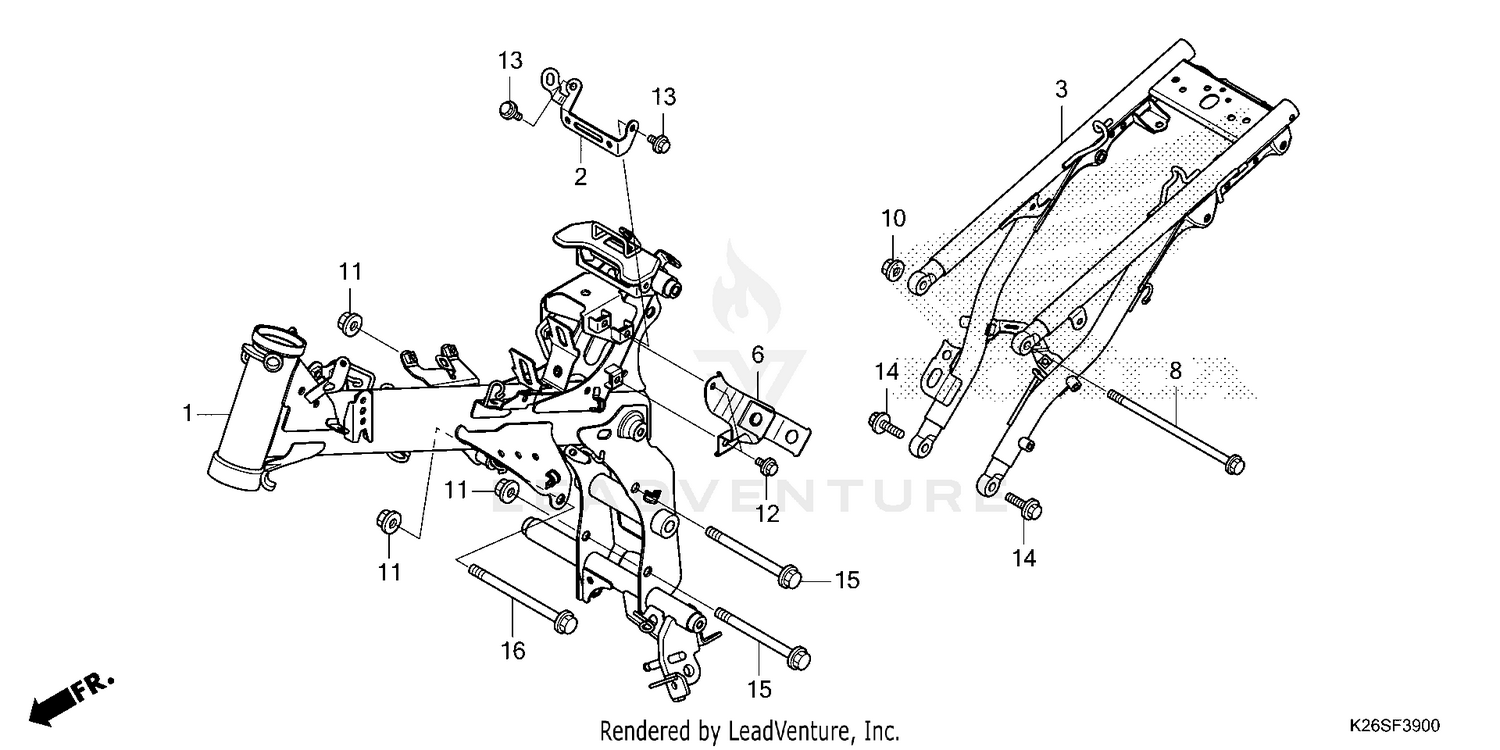

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
50100-K26-L10
|
$272.95 | ||
|
Unavailable |
|||
|
#2
BRACKET
50180-K26-M00
|
$1.53 | ||
|
Unavailable |
|||
|
#3
FRAME, RR.
50200-K26-G00
|
$147.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, ELECTRONIC CONTROL UNIT
50263-K26-G00
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (8X175)
90101-K26-G00
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE (8MM)
94050-08080
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE (10MM)
94050-10080
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X32)
95801-08032-00
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (10X110)
95801-10110-08
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (10X130)
95801-10130-08
|
$2.95 | ||
|
Unavailable |
|||
